Highlight
2T chocolate conche machine 380V
,automatic chocolate grinder 17kW
,industrial chocolate conche machine
-
Voltage380V 50Hz 3Phase Or Customized
-
Power17
-
Dimension3040*1912*1920mm
-
Weight5350KG
-
Capacity2T
-
Grinding TypeAutomatic With Motor
-
Liners Material65# Manganese Steel
-
Grinding Time10-16h
-
Grinding Fineness20~25micron
-
Main Motor Power37kw
-
Electrical Heating Power3×2kw
-
Main Axle Speed35rpm
-
Control SystemControl Panel (PLC Optional)
-
Temperature ControlAutomatic Water System
-
Core ComponentsBearing, Motor, Gear
-
Place of OriginJiangsu, China
-
CertificationISO9001 CE
-
Minimum Order Quantity1
-
Price$25,500

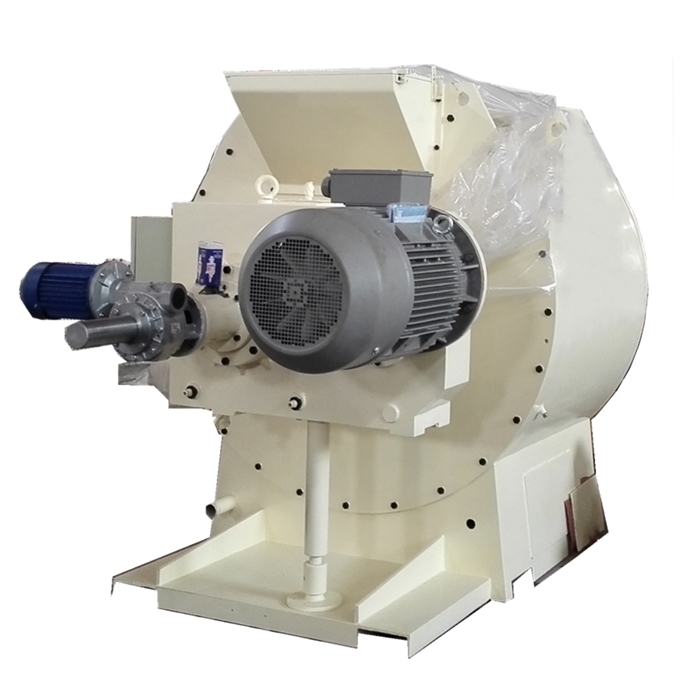

2T Chocolate Conche Machine 380V 17kW Automatic Grinder
2T High-Grade Chocolate Conche Refiner Machine Chocolate Grinder
Application
Our chocolate conche refiner is the universal solution for producing pure chocolate, compounds, coatings, pralines, truffles, and fillings. Suitable for small to medium production capacities, this versatile machine combines mixing, refining, and conching functions into one efficient system.
Technical Specifications
| Model/Project | 20L | 100L | 500L | 1000L | 1500L | 2000L | 3000L |
|---|---|---|---|---|---|---|---|
| Maximum capacity (L) | 20 | 100 | 500 | 1000 | 1500 | 2000 | 3000 |
| Grinding Fineness (micron) | 20-25 | 20-25 | 20-25 | 20-25 | 20-25 | 20-25 | 20-25 |
| Main Axle Rotating Speed (rpm) | 93 | 48 | 33 | 35 | 35 | 35 | 35 |
| Grinding time (h) | 8-10 | 12-16 | 16-22 | 16-22 | 16-22 | 16-22 | 16-22 |
| Main motor power (kw) | 1.5 | 5.5 | 15 | 22 | 30 | 37 | 45 |
| Electrical heating power (kw) | 0.6 | 2.5 | 5 | 2×2 | 6 | 3×2 | 12 |
| Weight (kg) | 295 | 1050 | 2572 | 3050 | 4850 | 5350 | 7500 |
| Outside dimensions (mm) | 920×600×1110 | 1200×1150×1050 | 2465×1146×1312 | 2627×1280×1520 | 2918×1650×1920 | 3040×1912×1920 | 3450×2016×2280 |
Product Features

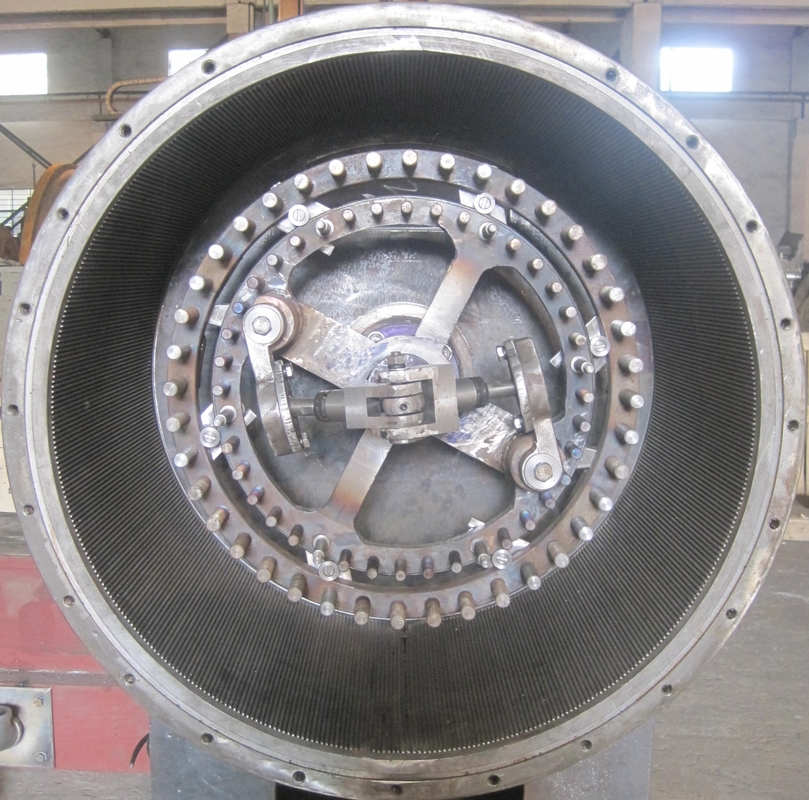

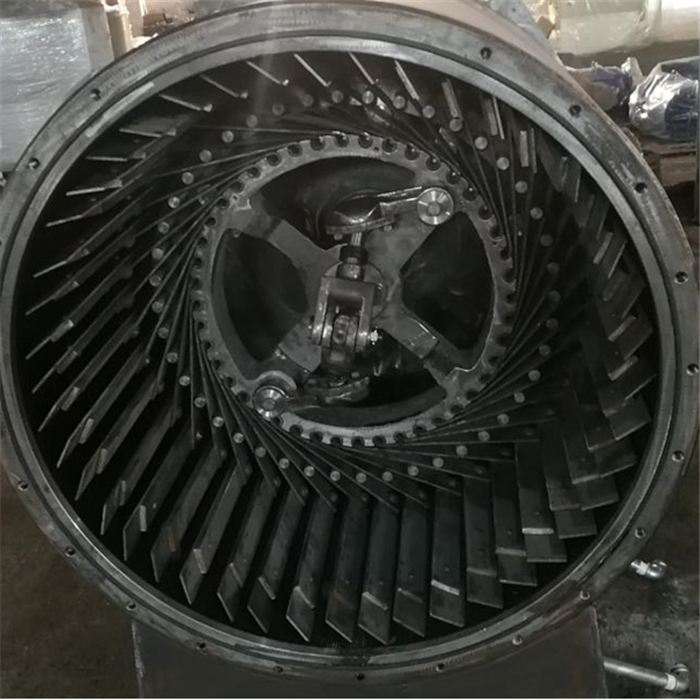

- Manganese steel blades and lining bars with extended lifespan, strengthened by special heat treatment
- Control panel operation with optional PLC control system
- Ideal for medium to large capacity chocolate and confectionery manufacturers
- Stable performance ensured by strict manufacturing techniques
- Automatic pressure adjustment motor for consistent batch quality
- Solenoid valve and automatic temperature water system for precise temperature control
Product Images
Production Capacity

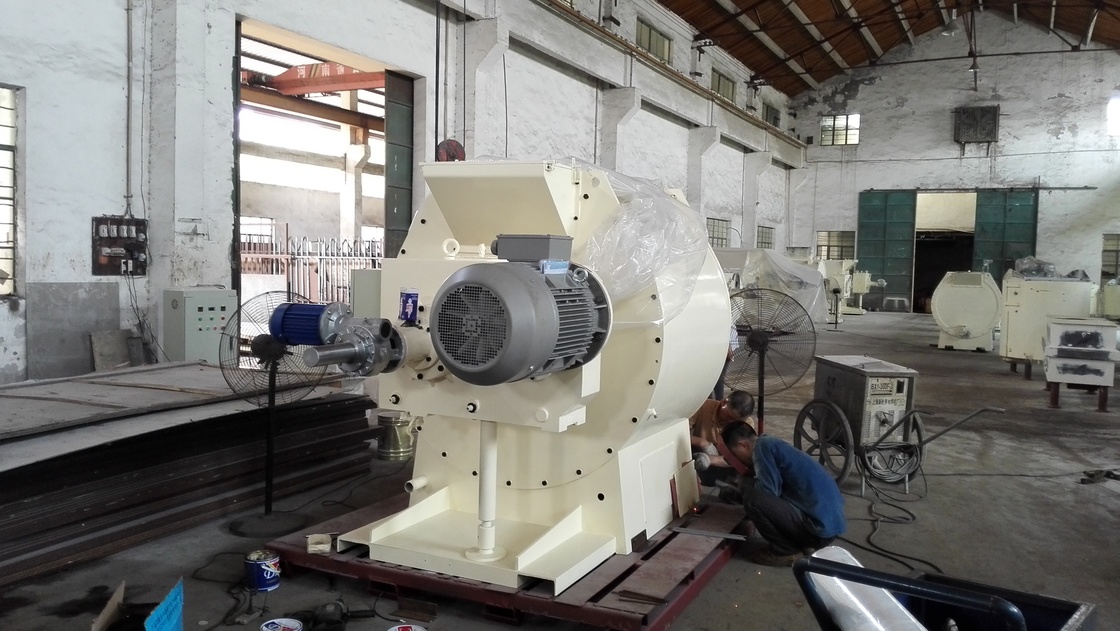

Our factory can produce 50 sets of chocolate conche refiners per month. With most components manufactured in-house (except motors and electrical parts), we maintain strict quality control throughout the production process.
Company Profile
Suzhou Harmo Food Machinery, based in Suzhou, China, is a professional chocolate machine manufacturer with complete production facilities. We export to USA, Canada, South America, Middle East, North Africa, Eastern Europe, and Asia. Our extensive manufacturing experience allows us to provide optimal equipment and production solutions for global customers.
Certifications
Packaging
Frequently Asked Questions
Q1: Can you provide invitation letter for customers and arrange pick-up at the airport?
A1: Yes. We can provide invitation letters and arrange transportation from Shanghai airport or train station.
Q2: What is your warranty period?
A2: Our warranty covers 12 months or 14 months after shipment.
Q3: Will you test the machine after manufacturing?
A3: Yes. All machines undergo testing with oil or raw materials before shipping.
Q4: Can you supply machines conforming to European or American standards?
A4: Yes. We regularly export to USA, Canada, Hungary, Belgium, and other markets.
Q5: What if goods are damaged during shipping?
A5: We pack goods securely and will replace damaged parts promptly to minimize downtime.
Q6: Can you arrange loading for products from different suppliers?
A6: Yes, we can consolidate shipments from multiple suppliers into one container.
Q7: Do you provide installation and commissioning service?
A7: Yes, we can send technicians for installation, commissioning, and staff training.
Q8: Do you provide recipes with production lines?
A8: Yes, we provide basic recipes that can be adjusted for local market requirements.
Q9: Do you provide instruction manuals?
A9: Yes, detailed manuals and maintenance schedules are provided before shipping.
Q10: Can you make customized machines?
A10: Yes, we offer custom solutions and turnkey projects tailored to specific requirements.
