Highlight
500L chocolate conche machine
,380V cocoa processing machine
,3 phase chocolate conche
-
Voltage380V 50Hz 3Phase Or Customized
-
Power17
-
Dimension2465*1146*1312mm
-
Weight2572KG
-
Capacity500L
-
MaterialCarbon Steel Or Stainless Steel
-
Liners Material65# Manganese Steel
-
Grinding Time8-10h
-
Grinding Fineness20~25micron
-
Main Motor Power15
-
Electrical Heating Power5
-
Main Axle Speed33rpm
-
Blades MaterialManganese Steel
-
Control TypeControl Panel (PLC Optional)
-
Water SystemAutomatic Temperature
-
Place of OriginJiangsu, China
-
CertificationISO9001 CE
-
Minimum Order Quantity1
-
Price$9,900

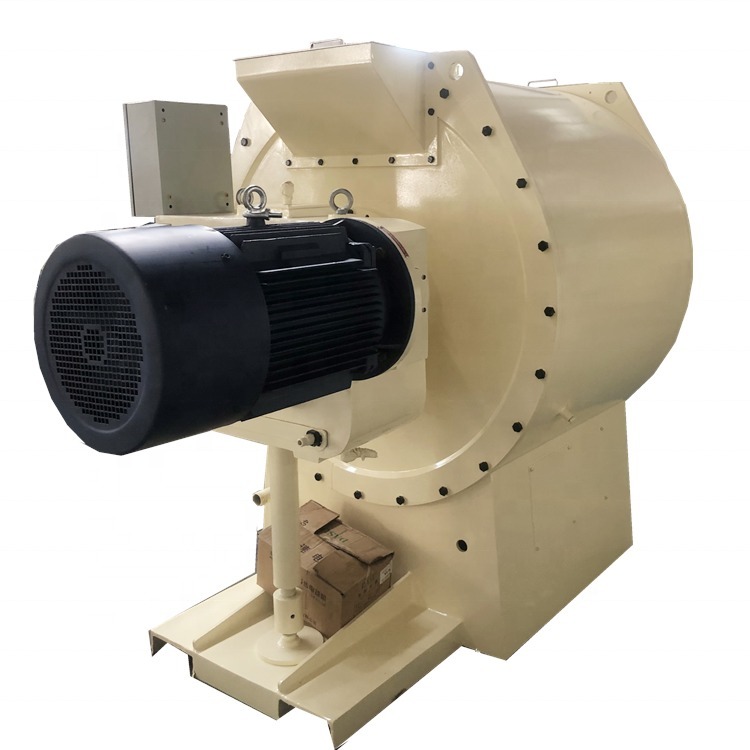

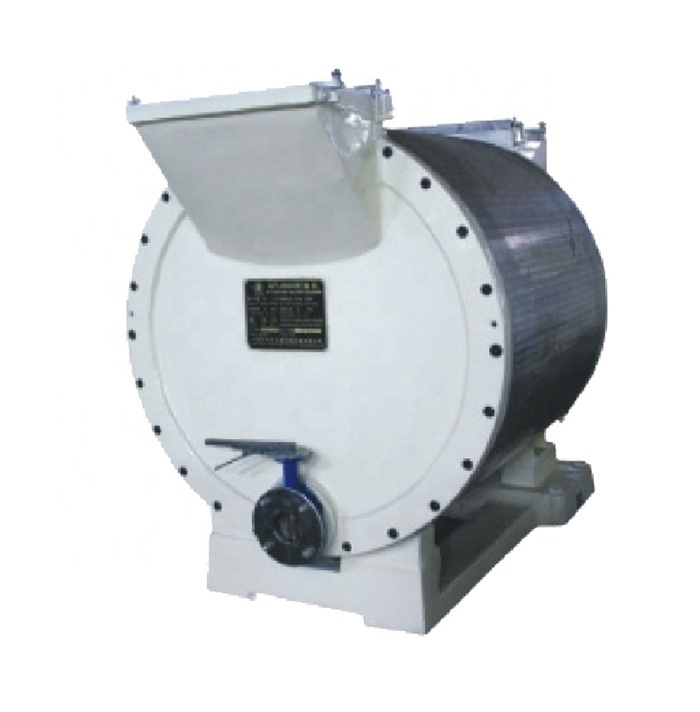

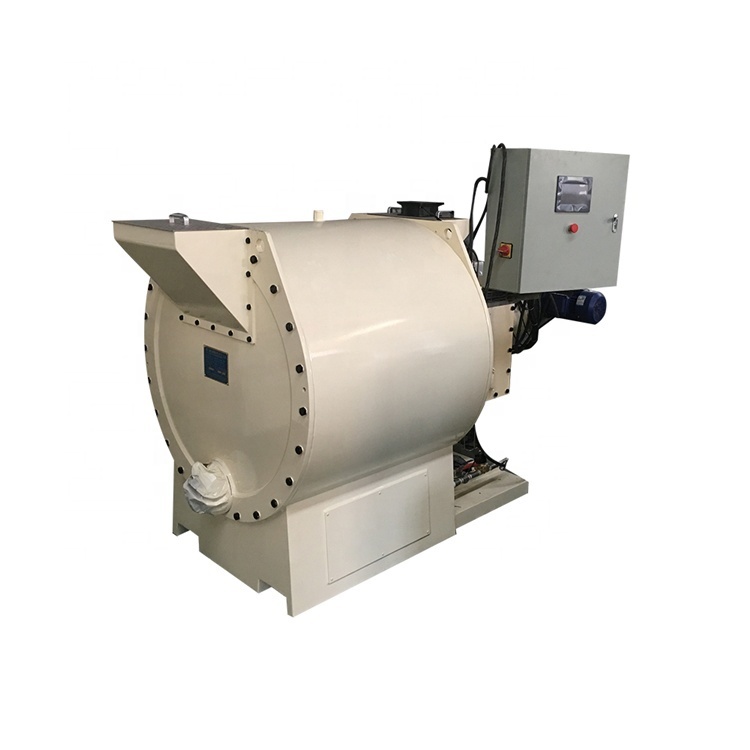

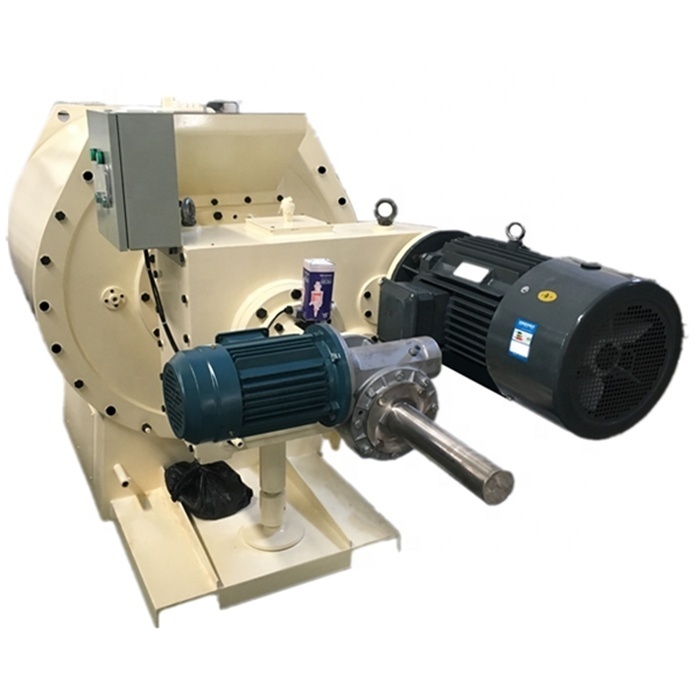

500L Chocolate Conche Machine 380V 3Phase for Cocoa Processing
500L Chocolate Conche Machine / Chocolate Mass Processing Machine / Conch Refiner
Application
Our chocolate conche refiner is the universal solution for making pure chocolate, compounds, coatings, pralines, truffles and fillings, suitable for small to medium production capacities.
Product Description
This versatile 3-in-1 manufacturing solution combines raw material mixing, refining and conching functions. Once mixed, the refining and conching process begins automatically.

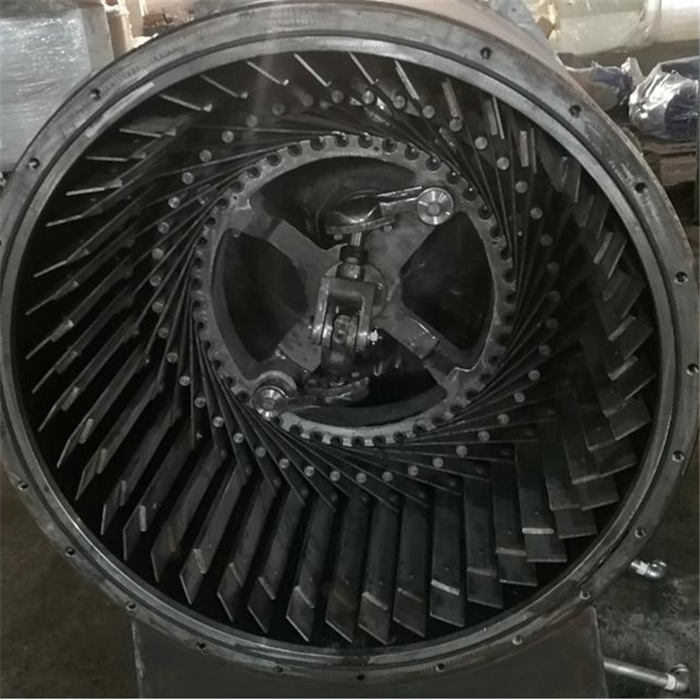

The machine features a main shaft equipped with blades and an automatic pressure adjustment motor to regulate material pressure between blades and lining bars, ensuring consistent batch quality.
Equipped with solenoid valves and an automatic temperature water system, it maintains optimal processing temperatures for delicate chocolate mass production.
Technical Parameters
| Model/Project | 20L | 100L | 500L | 1000L | 1500L | 2000L | 3000L |
|---|---|---|---|---|---|---|---|
| Maximum capacity (L) | 20 | 100 | 500 | 1000 | 1500 | 2000 | 3000 |
| Grinding Fineness (micron) | 20-25 | 20-25 | 20-25 | 20-25 | 20-25 | 20-25 | 20-25 |
| Main Axle Rotating Speed (rpm) | 93 | 48 | 33 | 35 | 35 | 35 | 35 |
| Grinding time (h) | 8-10 | 12-16 | 16-22 | 16-22 | 16-22 | 16-22 | 16-22 |
| Main motor power (kw) | 1.5 | 5.5 | 15 | 22 | 30 | 37 | 45 |
| Electrical heating power (kw) | 0.6 | 2.5 | 5 | 2×2 | 6 | 3×2 | 12 |
| Weight (kg) | 295 | 1050 | 2572 | 3050 | 4850 | 5350 | 7500 |
| Outside dimensions (mm) | 920×600×1110 | 1200×1150×1050 | 2465×1146×1312 | 2627×1280×1520 | 2918×1650×1920 | 3040×1912×1920 | 3450×2016×2280 |
Product Images
Key Features
- Manganese steel blades and lining bars with extended lifespan, processed through our special heating system for added strength
- Control panel operation with optional PLC control system
- Ideal for medium and large capacity chocolate and confectionery manufacturers
- Manufactured with strict techniques for consistent, stable performance
Processing Images
Production Capacity: We manufacture 50 sets of chocolate conche refiners monthly. Most components are produced in-house (except motors and electrical parts) ensuring superior quality control.
Company Profile
Suzhou Harmo Food Machinery, based in Suzhou, China, is a professional chocolate machine manufacturer with complete production facilities. We maintain strict quality control from raw materials to finished products, with most components manufactured in-house.
Our machines are exported worldwide to North America, South America, Middle East, Africa, Europe and Asia. We combine manufacturing expertise with practical production solutions to meet global customer needs.
Quality and service are our core principles. We prioritize product excellence and responsive customer support, addressing inquiries promptly with practical solutions.
Certifications
Product Packaging
Frequently Asked Questions
Q1: Can you provide invitation letter for customers and arrange pick-up at the airport if they want to visit your factory?
A1: Yes. We provide invitation letters and can arrange airport or train station pickup from Shanghai.
Q2: What is your warranty period?
A2: Our warranty covers 12 months or 14 months after shipment.
Q3: Will you test the machine after manufacturing?
A3: Yes. All machines undergo testing with oil or raw materials before shipping.
Q4: Can you supply machines conforming to European or American standards?
A4: Yes. Our machines meet international standards and have been exported to USA, Canada, Hungary and Belgium.
Q5: What if goods are damaged during shipping?
A5: We secure all shipments properly. If damage occurs, we'll expedite replacement parts to minimize downtime.
Q6: Can you consolidate shipments from different suppliers?
A6: Yes, we can load all products at our facility and arrange consolidated container shipping.
Q7: Do you provide installation and commissioning services?
A7: Yes, we can send technicians for installation, commissioning, and operator training.
Q8: Do you provide recipes with production lines?
A8: Yes, we provide basic recipes that can be customized for local market requirements.
Q9: Do you provide manuals and maintenance schedules?
A9: Yes, detailed instruction manuals and maintenance schedules are included with all shipments.
Q10: Can you customize machines?
A10: Yes, we offer custom machine designs and complete turnkey project solutions.
