100L Chocolate Conche Machine 20-25 Micron Fineness 380V

MOQ:	1
Price:	$6,200

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Certification:

ISO CE

Voltage:

380V 50Hz 3Phase Or Customized

Dimension:

1200*1150*1050mm

Weight:

1050kg

Capacity:

100L

Material:

Carbon Steel Or Stainless Steel

Grinding Fineness:

20~25micron

Grinding Time:

8-10h

Main Motor Power:

5.5kw

Electrical Heating Power:

2.5kw

Main Axle Speed:

48rpm

Blade Material:

Manganese Steel

Batch Size:

100kg/batch

Temperature Control:

Automatic

Lining Bar Material:

Manganese Steel

Outside Dimensions:

1200×1150×1050mm

Highlight:

100L chocolate conche machine 380V

chocolate conche machine 20-25 micron

industrial chocolate conche machine 100L

Product Description

High Quality Chinese Chocolate Refiner Conche Machine

Product Description

Our 100L chocolate conche refiner is an ideal production solution for chocolate shops and labs, combining three functions: raw materials mixing, chocolate mass grinding & refining, and conching. It can be used to produce chocolate mass and various fillings for chocolate products.

Technical Specifications

Model/Project	20L	100L	500L	1000L	1500L	2000L	3000L
Maximum capacity (L)	20	100	500	1000	1500	2000	3000
Grinding Fineness (micron)	20-25	20-25	20-25	20-25	20-25	20-25	20-25
Main Axle Rotating Speed (rpm)	93	48	33	35	35	35	35
Grinding time (h)	8-10	12-16	16-22	16-22	16-22	16-22	16-22
Main motor power (kw)	1.5	5.5	15	22	30	37	45
Electrical heating power (kw)	0.6	2.5	5	2×2	6	3×2	12
Weight (kg)	295	1050	2572	3050	4850	5350	7500
Outside dimensions (mm)	920×600×1110	1200×1150×1050	2465×1146×1312	2627×1280×1520	2918×1650×1920	3040×1912×1920	3450×2016×2280

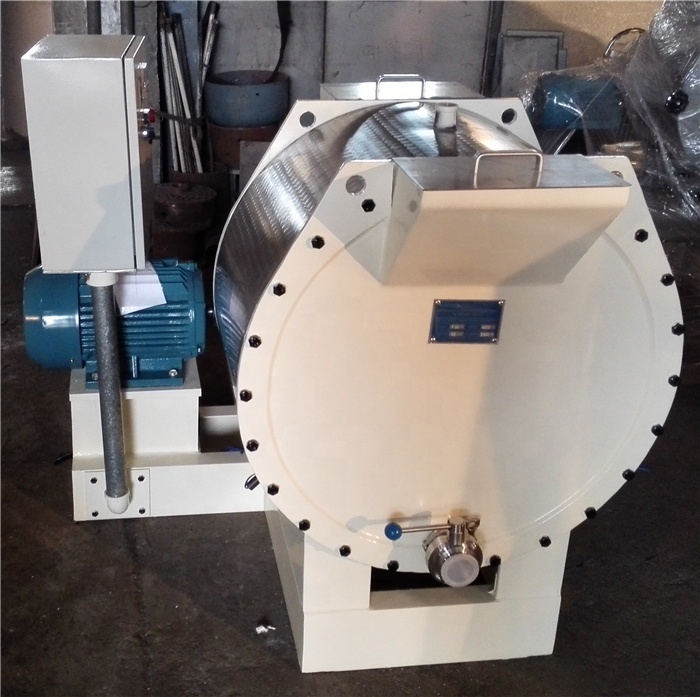

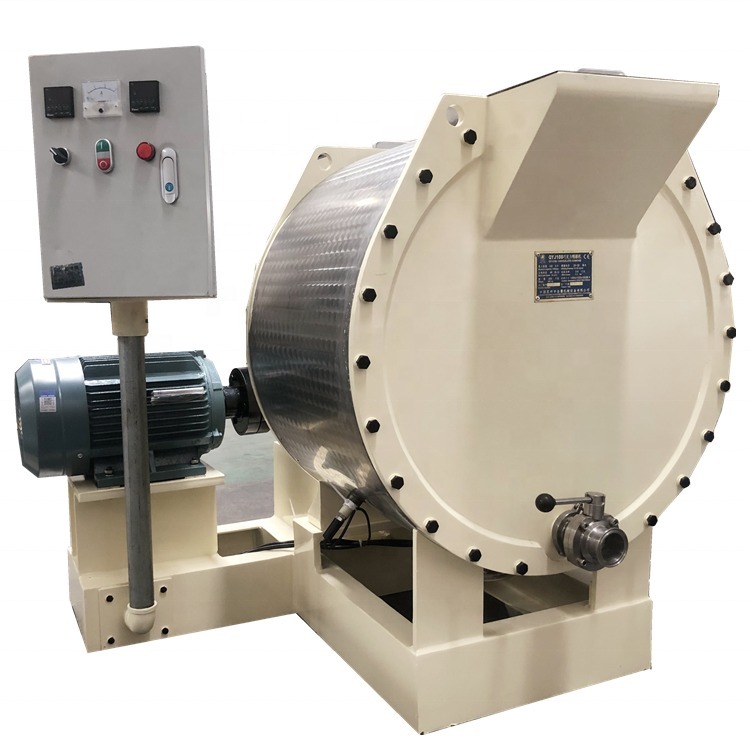

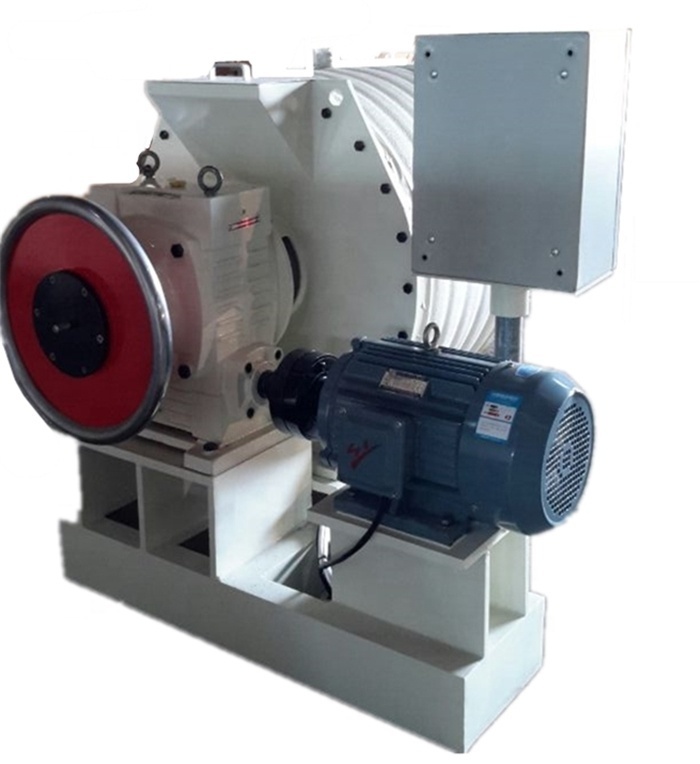

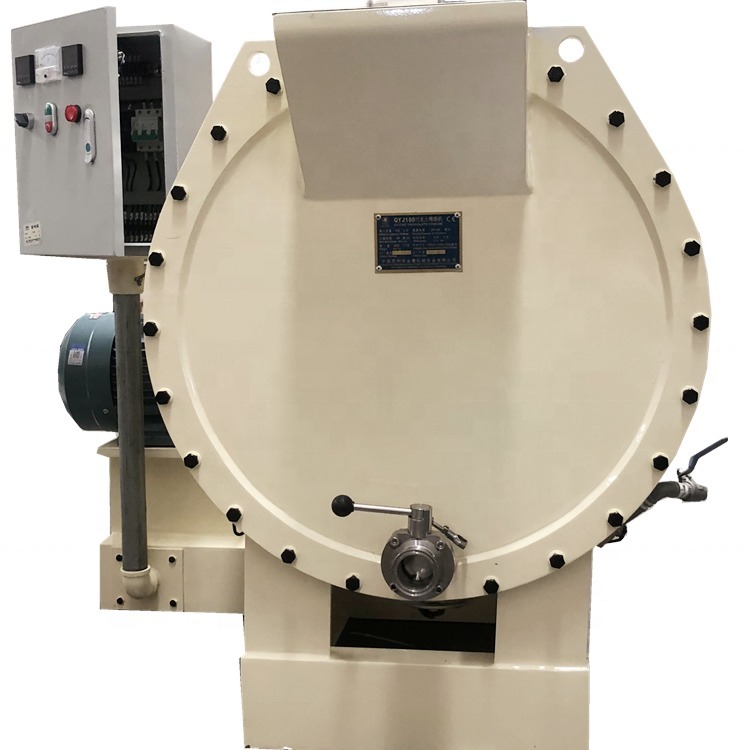

Product Images

Detail Images

Key Features

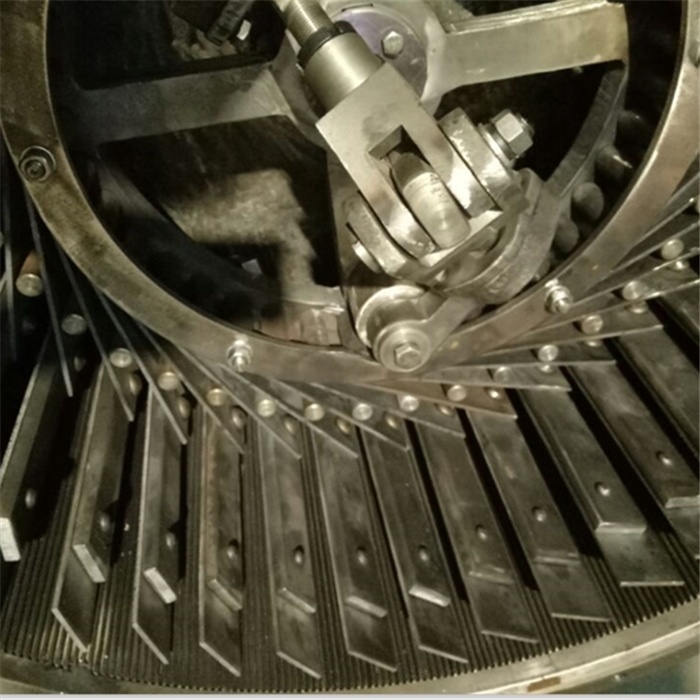

Manganese steel blades and lining bars with extended lifespan, processed and strengthened by our special heating system
Operator-friendly design with 100kg batch capacity for easy raw material loading
Equipped with solenoid valve and automatic temperature control system
Compact footprint ideal for limited space installations

Processing Images

Workshop

Our 100L chocolate conche refiner is a popular choice for chocolate shops and labs due to its convenience and efficiency. We maintain a production capacity of 50 units per month. With in-house manufacturing of nearly all components (except motors and electrical parts), we ensure strict quality control throughout the production process.

Company Profile

Suzhou Harmo Food Machinery, based in Suzhou, China, is a professional chocolate machine manufacturer with complete production facilities. We maintain control over quality from raw materials to finished products by manufacturing nearly all components in-house (excluding motors and electrical parts).

Our chocolate machines are exported worldwide to North America, South America, the Middle East, North Africa, Eastern Europe, and Asia. Our extensive manufacturing experience allows us to provide optimal chocolate equipment and production processes for global customers.

Quality is our core value, and service is our principle. We prioritize quality over price and respond promptly to customer inquiries. Our mission is to learn from customers, collaborate with them, and provide reliable chocolate equipment with appropriate production solutions.

Certifications

Product Packaging

Frequently Asked Questions

Q1: Can you provide invitation letter for customers and arrange pick-up at the airport if they want to visit your factory?

A1: Yes. We can provide invitation letters and arrange transportation from Shanghai airport or train station.

Q2: What is your warranty period?

A2: Our warranty covers 12 months or 14 months after shipment.

Q3: Will you test the machine after manufacturing?

A3: Yes. All machines undergo testing with oil or raw materials before shipping.

Q4: Can you supply machines that conform to European or American standards?

A4: Yes. We regularly export to the USA, Canada, Hungary, Belgium, and other markets.

Q5: What can we do if goods are damaged during shipping?

A5: We ensure secure packaging. In case of damage, we will expedite replacement parts to minimize downtime.

Q6: Can you arrange loading in your factory if customer bought products from different suppliers?

A6: Yes, we can consolidate shipments from multiple suppliers into one or two containers.

Q7: Do you provide installation and commissioning service?

A7: Yes, we can send technicians for installation, commissioning, and operator training.

Q8: Do you provide recipe if customer buys whole production line?

A8: Yes, we provide basic recipes that customers can adapt to local market requirements.

Q9: Do you provide instruction manual and maintenance schedule?

A9: Yes. Detailed manuals and maintenance schedules are provided before shipping.

Q10: Can you make customized machine?

A10: Yes, we offer custom solutions and turnkey projects tailored to specific production needs.
