20L Chocolate Conche Machine 380V Carbon Steel 295kg

MOQ:	1
Price:	$3,600

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Voltage:

380V 50Hz 3Phase Or Customized

Dimensions:

920×600×1110mm

Weight:

295kg

Power:

2.1w

Capacity:

20L

Grinding Fineness:

20~25micron

Main Motor Power:

1.5kw

Electrical Heating Power:

0.6kw

Main Axle Speed:

93rpm

Grinding Time:

8-10h

Material:

Carbon Steel Or Stainless Steel

Blade Material:

Manganese Steel

Lining Bar Material:

Manganese Steel

Temperature Control:

Automatic

Pressure Adjustment:

Manual

Highlight:

20L chocolate conche machine 380V

carbon steel chocolate conche machine

295kg industrial chocolate conche

Product Description

Top Quality Mini Cocoa Chocolate Production Machine Chocolate Conche Machine 20 Liters

Product Overview

The chocolate conche refiner is a universal solution for making pure chocolate, compounds, coatings, pralines, truffles, and fillings. This 3-in-1 manufacturing solution combines raw materials mixing, refining, and conching processes in a single machine.

Key Features

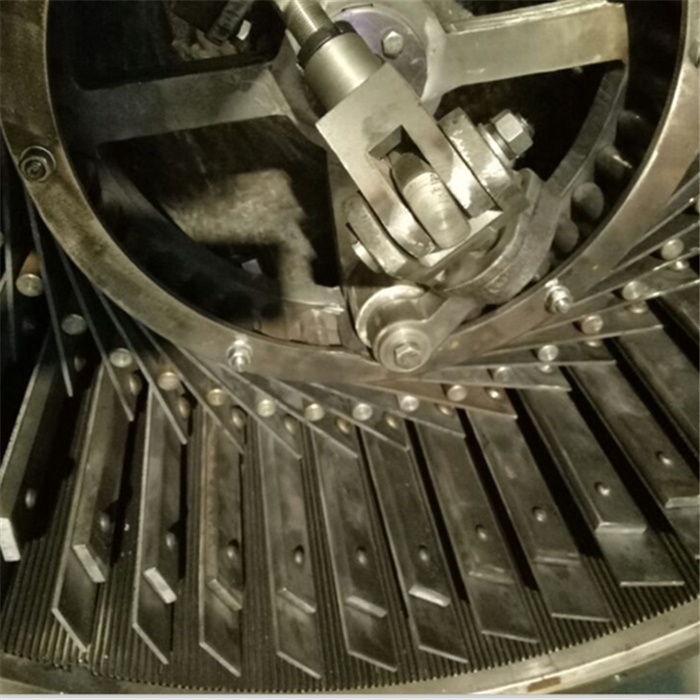

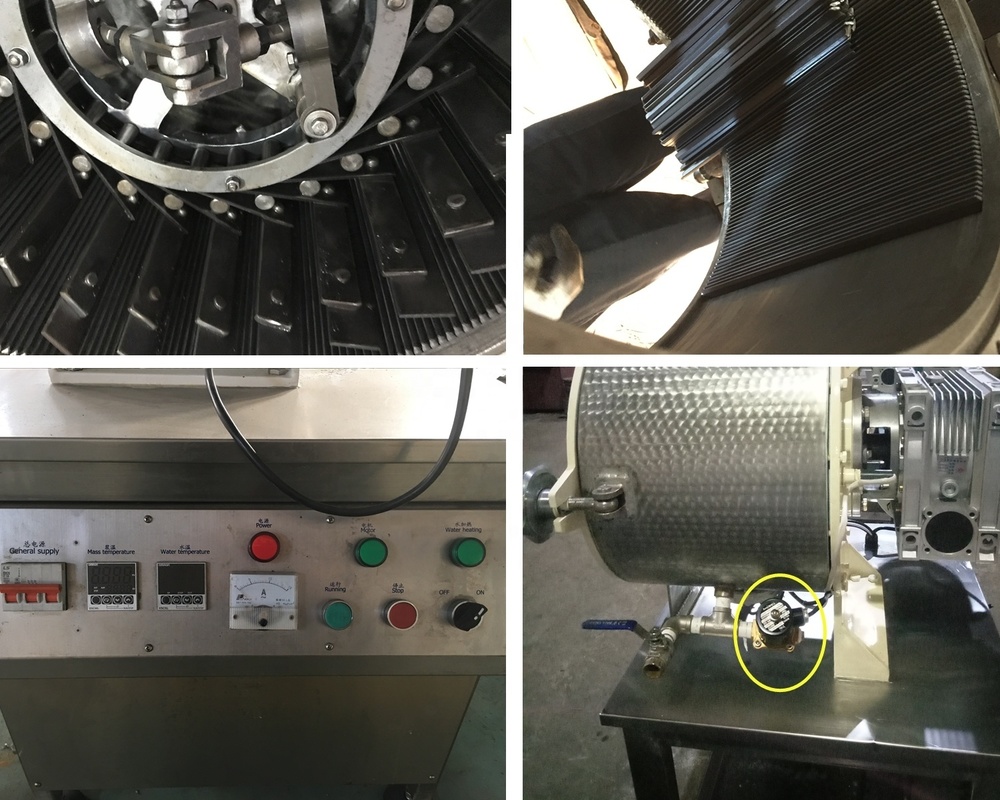

Main shaft equipped with blades and manual pressure adjustment wheel for precise control
Solenoid valve and automatic temperature water system for consistent quality
Manganese steel blades and lining bars with extended lifespan
Front-opening design for easy cleaning and maintenance
Compact size ideal for chocolate shops and labs

Technical Specifications

Model/Project	20L	100L	500L	1000L	1500L	2000L	3000L
Maximum capacity (L)	20	100	500	1000	1500	2000	3000
Grinding Fineness (micron)	20-25	20-25	20-25	20-25	20-25	20-25	20-25
Main Axle Rotating Speed (rpm)	93	48	33	35	35	35	35
Grinding time (h)	8-10	12-16	16-22	16-22	16-22	16-22	16-22
Main motor power (kw)	1.5	5.5	15	22	30	37	45

Product Images

Manufacturer Information

Suzhou Harmo Food Machinery, founded in Suzhou, China, is a professional chocolate machine supplier with complete manufacturing facilities. We export our machines worldwide and maintain strict quality control from raw materials to finished products.

Frequently Asked Questions

Q1: What is your payment term?

A1: 30% T/T as down payment, 70% balance prepaid after inspection and before shipping. We also accept irrevocable L/C at sight and West Union.

Q2: What is your warranty period?

A2: Our warranty is 12 months or 14 months after shipment.

Q3: Can you accept CIF price?

A3: Yes, we have long-term cooperated forwarders who can provide reliable transportation service.

Q4: Do you provide installation and commissioning service?

A4: Yes, we can send our technician to install and commission the machine in your factory, including staff training.

Q5: Can you make customized machines?

A5: Yes, we can customize machines according to your requirements and provide turnkey projects.
