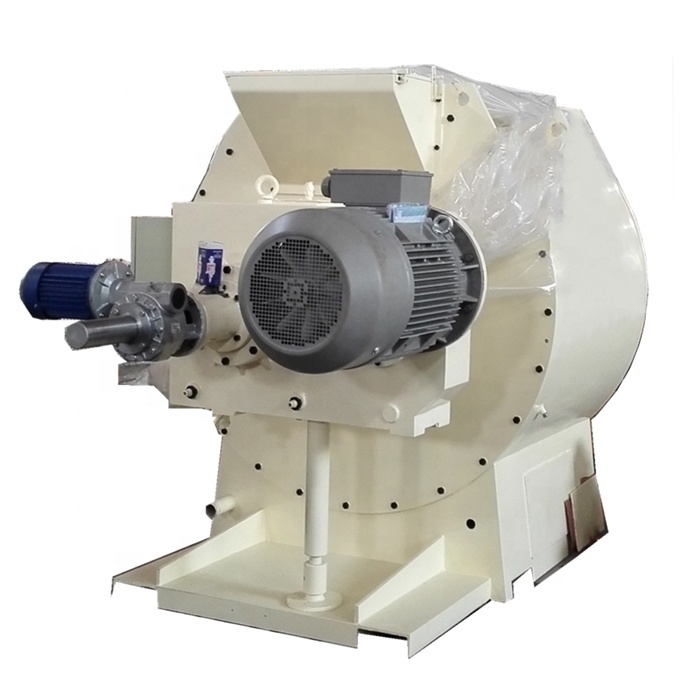

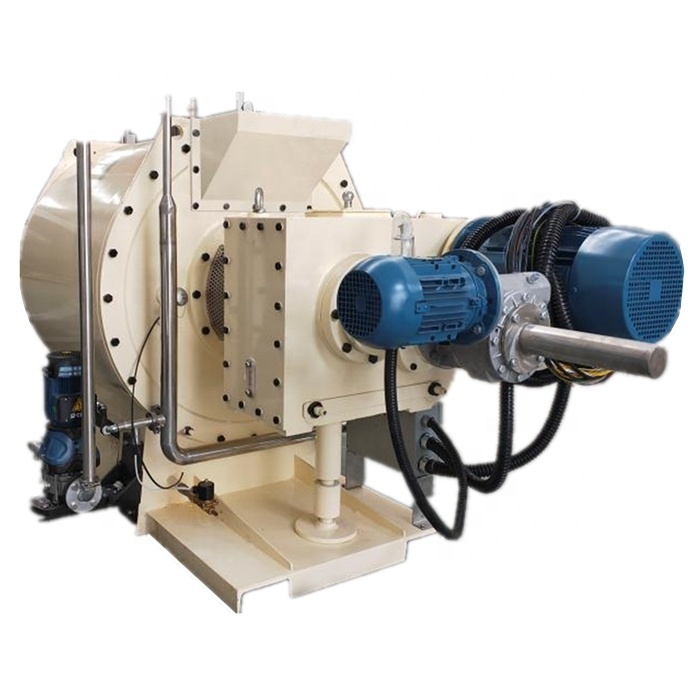

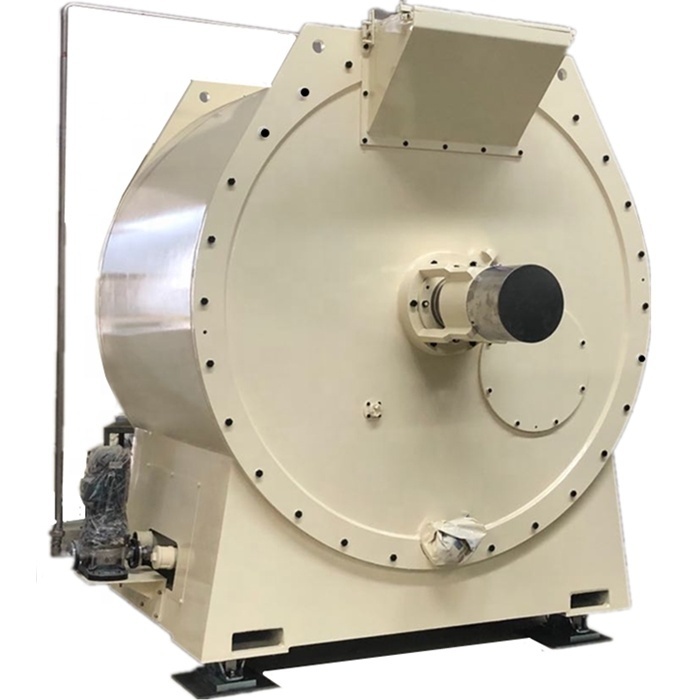

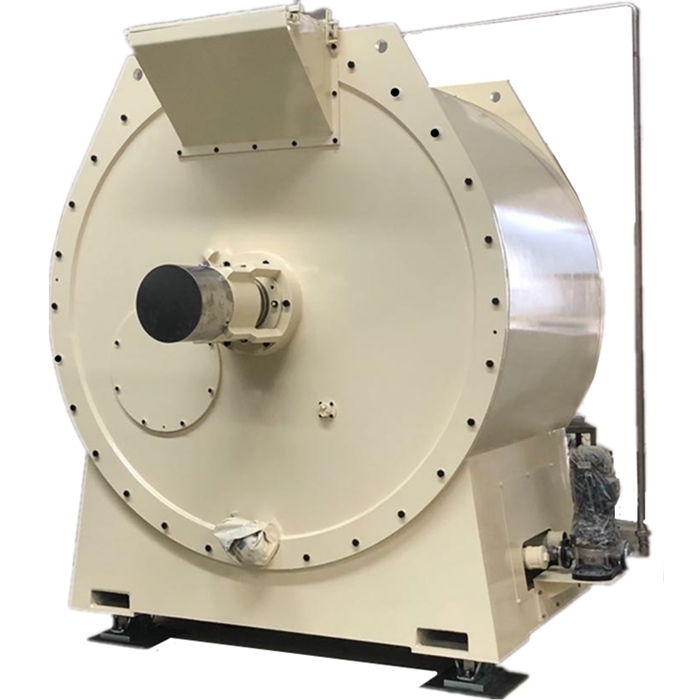

3000L Chocolate Conche Machine 45kw Carbon Steel Continuous Type
-
Highlight
3000L chocolate conche machine
,carbon steel chocolate conche
,continuous type conche machine
-
VoltageCustomized
-
Power45kw
-
Dimension1200*1150*1050 Mm
-
Weight7500kg
-
Capacity3000L
-
MaterialCarbon Steel
-
Main Motor Power45 Kw
-
Electrical Heating Power12 Kw
-
Grinding Fineness20-25 Micron
-
Main Axle Speed35 Rpm
-
Grinding Time16-22 H
-
ColorWhite
-
Lining Bars MaterialManganese Steel
-
Blades MaterialManganese Steel
-
Control TypePLC Control
-
Place of OriginJiangsu, China
-
CertificationISO9001 CE
-
Minimum Order Quantity1
-
Price$45,200-49,300
3000L Chocolate Conche Machine 45kw Carbon Steel Continuous Type
High Quality Conching Machine Chocolate Granite Stone Conching Machine for Chocolate
Technical Specifications
| Model | 20 | 100 | 500 | 1000 | 1500 | 2000 | 3000 |
|---|---|---|---|---|---|---|---|
| Machinery Function | Chocolate conche is used in fine grinding of chocolate mass it is the main equipment in chocolate production line | ||||||
| Capacity | 20L | 100L | 500L | 1000L | 1500L | 2000L | 3000L |
| Grinding Fineness(micron) | 20-25 | 20-25 | 20-25 | 20-25 | 20-25 | 20-25 | 20-25 |
| Main Axle Rotating Speed(rpm) | 93 | 48 | 33 | 35 | 35 | 35 | 35 |
| Grinding time(h) | 8-10 | 12-16 | 16-22 | 16-22 | 16-22 | 16-22 | 16-22 |
| Voltage | customization | ||||||
| Main moter power(kw) | 1.5 | 5.5 | 15 | 22 | 30 | 37 | 45 |
| Electrical heating power(kw) | 0.6 | 2.5 | 5 | 2*2 | 6 | 3*2 | 12 |
| Warranty | 1 Year | 1 Year | 1 Year | 1 Year | 1 Year | 1 Year | 1 Year |
| Weight | 295 | 1050 | 2572 | 3050 | 4850 | 5350 | 7500 |
| Dimension(L*W*H) | 920*600*1110 | 1200*1150*1050 | 2465*1146*1312 | 2627*1280*1520 | 2918*1650*1920 | 3040*1912*1920 | 3450*2016*2280 |
| Place of Origin | China | ||||||
Frequently Asked Questions
Q1: What is your warranty period?
A1: Our warranty is 12 months or 14 months after shipment.
Q2: Will you test the machine after manufacturing?
A2: Yes. All our machines will be tested with oil or raw materials before shipping by our technician.
Q3: Can you supply machines which conform to European Standard or American standard?
A3: Yes. We exported our machines to USA, Canada, Hungary and Belgium, etc.
Q4: What's the raw material of lining bars and blades?
A4: Both of them are manganese steel. Moreover, every piece of lining bars will be processed by heating system to improve their hardness.
Q5: Do you provide recipe if customer buys conche refiner?
A5: Yes, we can provide a basic recipe, then customer can adjust the recipe according to customer's local market demand.
Q6: Do you provide instruction manual and maintenance schedule?
A6: Yes. We will provide detailed instruction manual and maintenance schedule before shipping.
Q7: Can you make customized conche refiner?
A7: Yes, we can customize our conche refiners according to customer's requirements, like PLC control, vent fan, sampling valve, etc.
