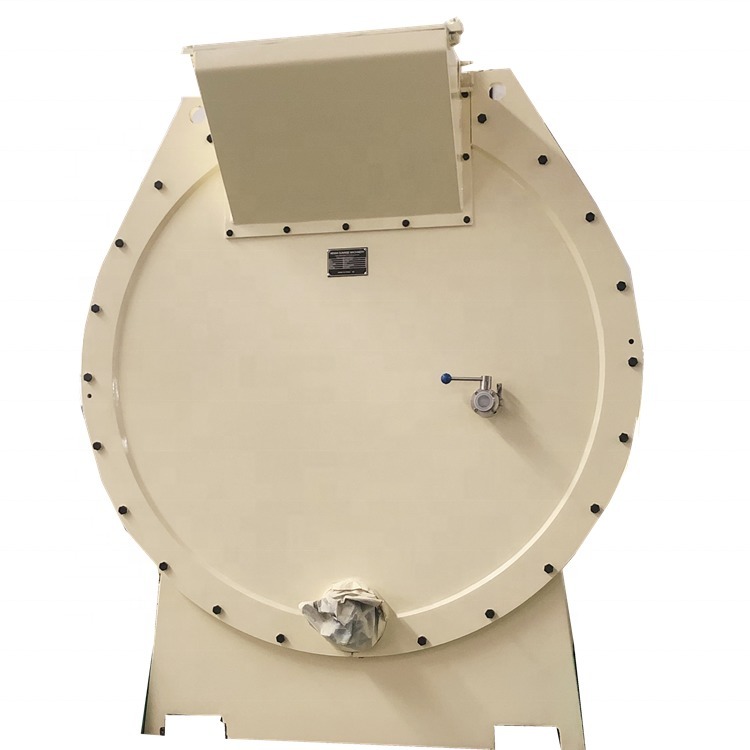

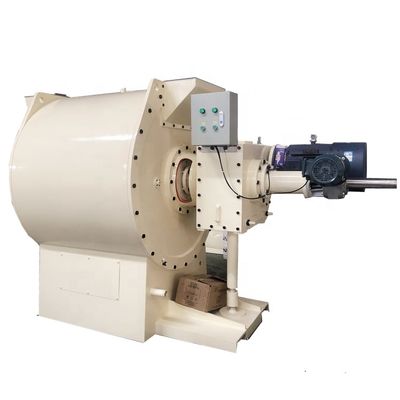

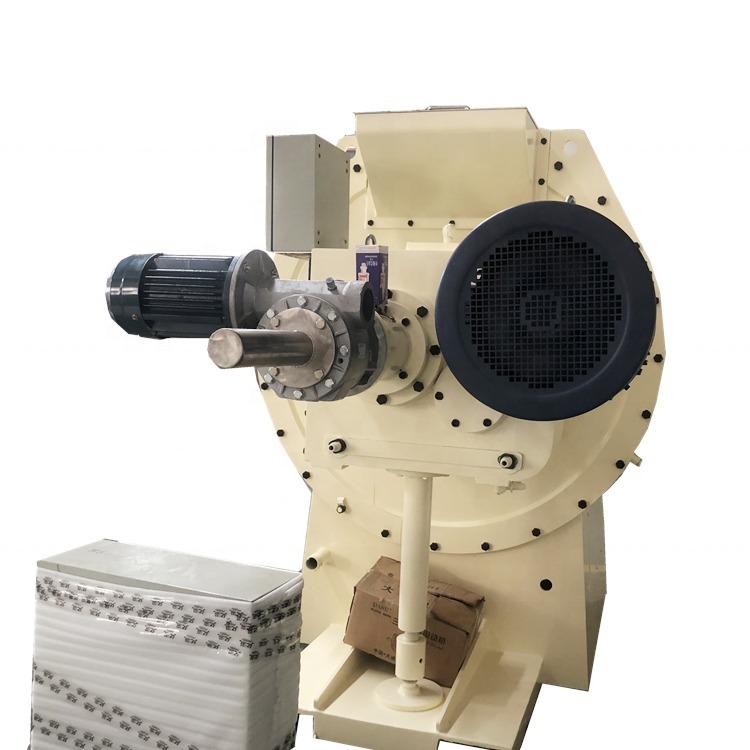

500L Automatic Chocolate Conche Refiner with Manganese Steel Blades
-
Highlight
500L automatic chocolate conche machine
,chocolate conche refiner with manganese steel blades
,industrial chocolate conche machine with warranty
-
VoltageCustomized
-
Power5.5 KW
-
Dimension1200*1150*1050 Mm
-
Weight1050 Kg
-
Capacity500L
-
Grinding Fineness20-25 Micron
-
Main Axle Speed33 Rpm
-
Grinding Time16-22 H
-
Main Motor Power15 KW
-
Heating Power5 KW
-
MaterialManganese Steel
-
OperationAutomatic
-
Heating TypeWater Heating
-
Blade MaterialManganese Steel
-
Lining Bar MaterialManganese Steel
-
Place of OriginChina
-
Brand NameHarmo
-
CertificationCE ISO
-
Minimum Order Quantity1
-
Price$9,900-11,300
500L Automatic Chocolate Conche Refiner with Manganese Steel Blades
| Model | 20 | 100 | 500 | 1000 | 1500 | 2000 | 3000 |
|---|---|---|---|---|---|---|---|
| Machinery Function | Chocolate conche is used in fine grinding of chocolate mass it is the main equipment in chocolate production line | ||||||
| Capacity | 20L | 100L | 500L | 1000L | 1500L | 2000L | 3000L |
| Grinding Fineness(micron) | 20-25 | 20-25 | 20-25 | 20-25 | 20-25 | 20-25 | 20-25 |
| Main Axle Rotating Speed(rpm) | 93 | 48 | 33 | 35 | 35 | 35 | 35 |
| Grinding time(h) | 8-10 | 12-16 | 16-22 | 16-22 | 16-22 | 16-22 | 16-22 |
| Voltage | customized | ||||||
| Main moter power(kw) | 1.5 | 5.5 | 15 | 22 | 30 | 37 | 45 |
| Electrical heating power(kw) | 0.6 | 2.5 | 5 | 2*2 | 6 | 3*2 | 12 |
| Warranty | 1 Year | ||||||
| Weight(kg) | 295 | 1050 | 2572 | 3050 | 4850 | 5350 | 7500 |
| Dimension(L*W*H) | 920*600*1110mm | 1200*1150*1050mm | 2465*1146*1312mm | 2627*1280*1520mm | 2918*1650*1920mm | 3040*1912*1920mm | 3450*2016*2280mm |
| Place of Origin | China | ||||||
| Packing | Pallet | ||||||
The Universal Chocolate Conche Refiner is a comprehensive solution for producing pure chocolate, compounds, coatings, pralines, truffles, and fillings in small to medium capacities.
This versatile machine combines three functions in one unit: raw materials mixing, refining, and conching. After mixing, the refining and conching processes begin automatically.

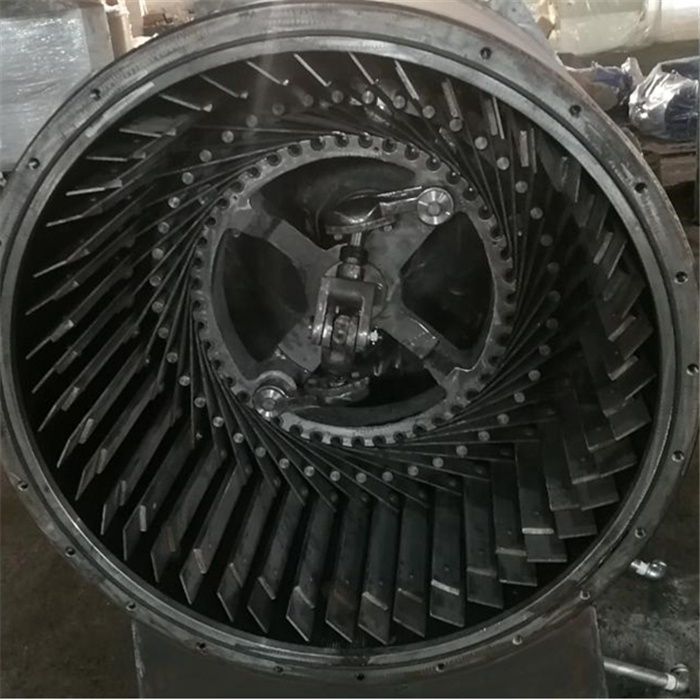

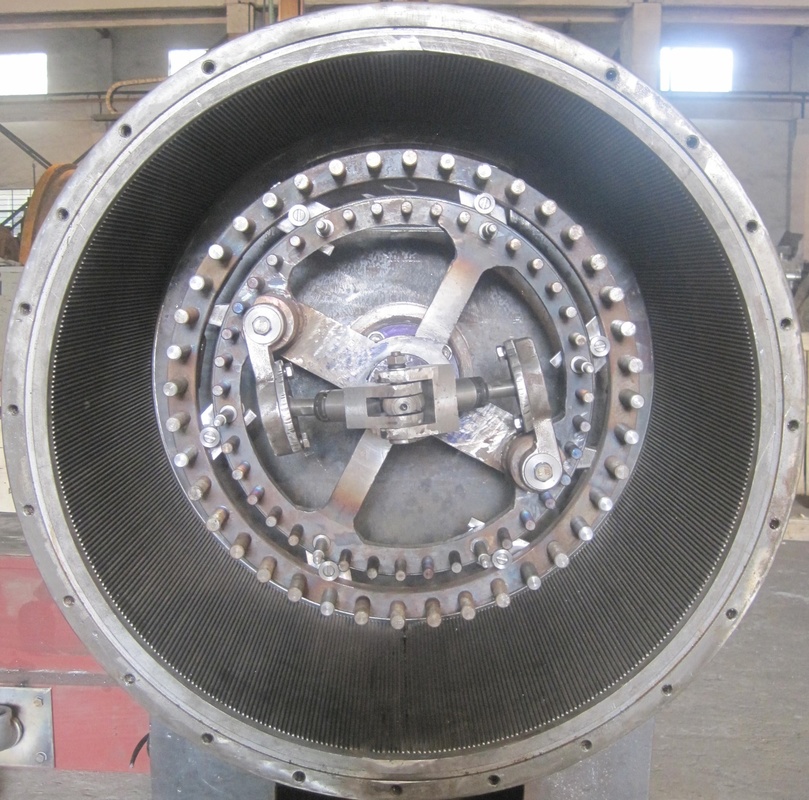

The machine features a main shaft equipped with blades and an automatic pressure adjustment motor to regulate material pressure between blades and lining bars. This ensures consistent batch quality and reliable process control.
Additional features include a solenoid valve and automatic temperature water system for precise temperature regulation, resulting in superior chocolate mass quality.
- Manganese steel blades and lining bars with extended lifespan, processed through a special heating system for enhanced durability
- Standard control panel operation with optional PLC control
- Ideal for medium and large capacity chocolate and confectionery manufacturers
- Manufactured with strict quality control for consistent, reliable performance
- Monthly production capacity of 50 units
- Most components (excluding motors and electrical parts) manufactured in-house for superior quality control
Our products meet CE certification and ISO9001 standards. We can customize UL standard chocolate machines for North American customers. With manufacturing experience since 1994, our equipment has been consistently approved by customers worldwide.
- Waterproof film inner packaging
- Non-fumigation case or pallet outer packaging (machine dependent)
- Standard export from Shanghai port, with optional delivery to any Chinese port
A1: Our warranty is 12 months or 14 months after shipment.
A2: Yes. All machines undergo testing with oil or raw materials by our technicians before shipping.
A3: Yes. We regularly export to USA, Canada, Hungary, Belgium, and other countries.
A4: Both components are manganese steel, with lining bars processed through a special heating system to enhance hardness.
A5: Yes, we provide a basic recipe that customers can adjust according to local market requirements.
A6: Yes. Detailed documentation is provided before shipping.
A7: Yes. We offer customization including PLC control, vent fans, sampling valves, and other features.
