100L Chocolate Conche Refiner Machine 380V 5.5kW

MOQ:	1
Price:	$5,600

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Certification:

ISO CE

Voltage:

380V 50Hz 3Phase Or Customized

Power:

5.5 KW

Dimension:

1200*1150*1050mm

Weight:

1050 KG

Capacity:

100L

Grinding Fineness:

20~25micron

Grinding Time:

8-10h

Main Motor Power:

5.5 KW

Electrical Heating Power:

2.5 KW

Main Axle Speed:

48 Rpm

Material:

Carbon Steel Or Stainless Steel

Blade Material:

Manganese Steel

Batch Capacity:

100kg/batch

Temperature Control:

Automatic

Lining Bars:

Manganese Steel

Highlight:

100L chocolate conche machine 380V

5.5kW chocolate conche refiner

industrial chocolate conche machine

Product Description

Chocolate Conche Refiner Machine 100 kg

Product Specifications

Attribute	Value
Condition	New
Voltage	380V 50Hz 3Phase or Customized
Power (kW)	5.5
Dimensions (L×W×H)	1200×1150×1050mm
Weight	1050 KG
Warranty	1 Year
Capacity	100L
Grinding Fineness	20~25micron
Grinding Time	8-10h
Material Options	Carbon Steel or Stainless Steel
Minimum Order Quantity	1 set

Technical Parameters

Model	20L	100L	500L	1000L	1500L	2000L	3000L
Maximum Capacity (L)	20	100	500	1000	1500	2000	3000
Main Motor Power (kW)	1.5	5.5	15	22	30	37	45
Weight (kg)	295	1050	2572	3050	4850	5350	7500

Product Features

Three-in-one functionality: raw materials mixing, grinding & refining, and conching
Manganese steel blades and lining bars with extended lifespan
Special heat treatment for enhanced durability of lining bars
Solenoid valve and automatic temperature control system
Compact design ideal for chocolate shops and labs
Batch capacity of 100kg for easy material loading

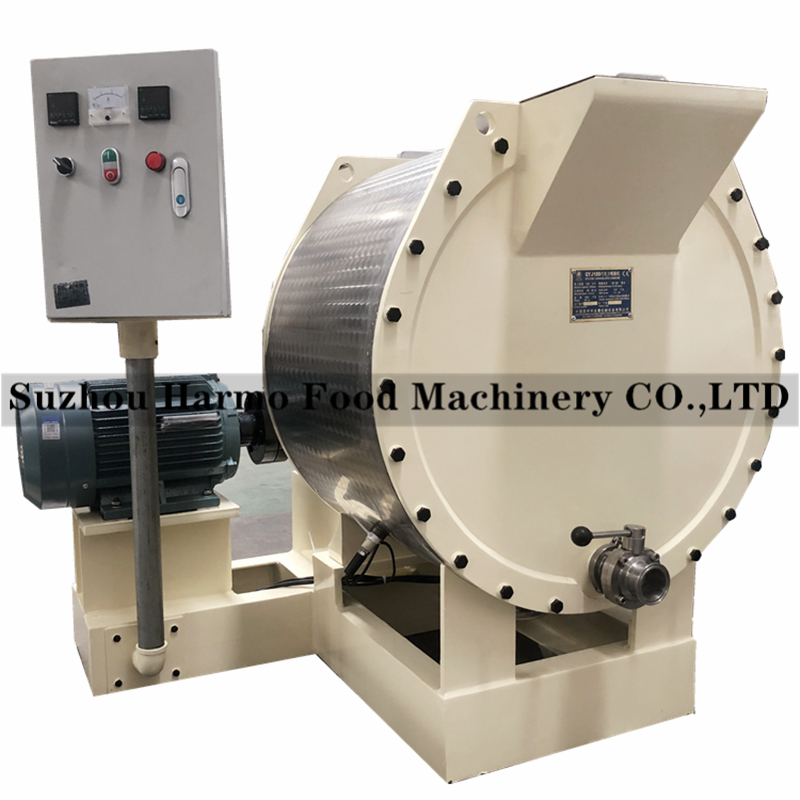

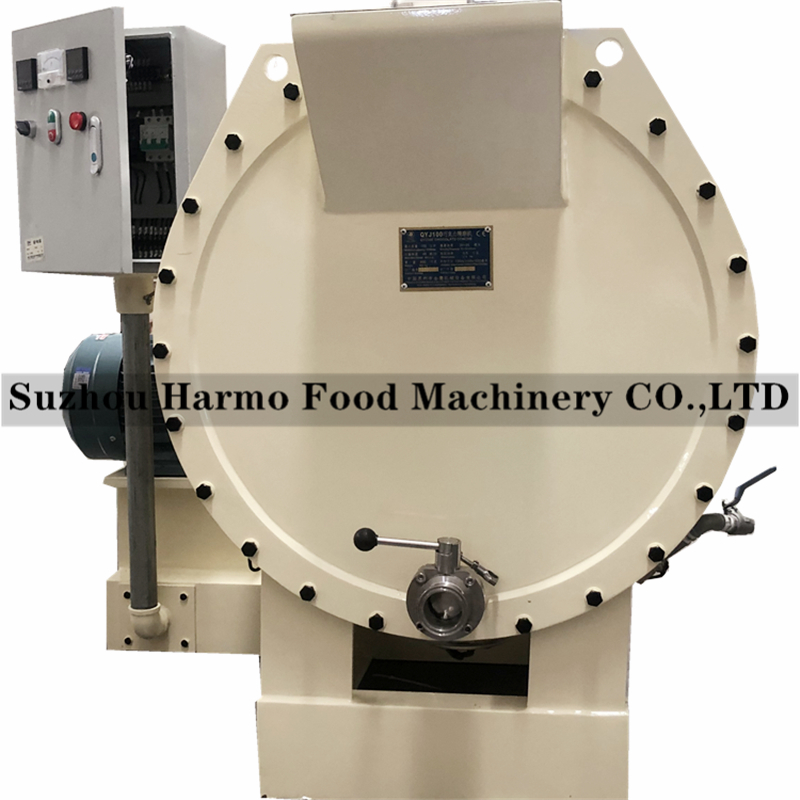

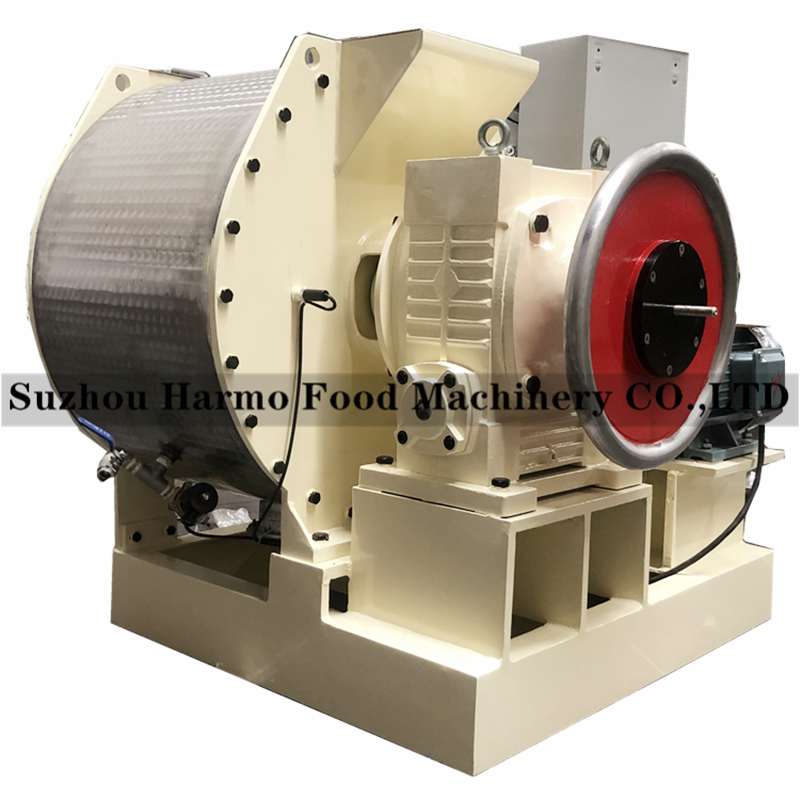

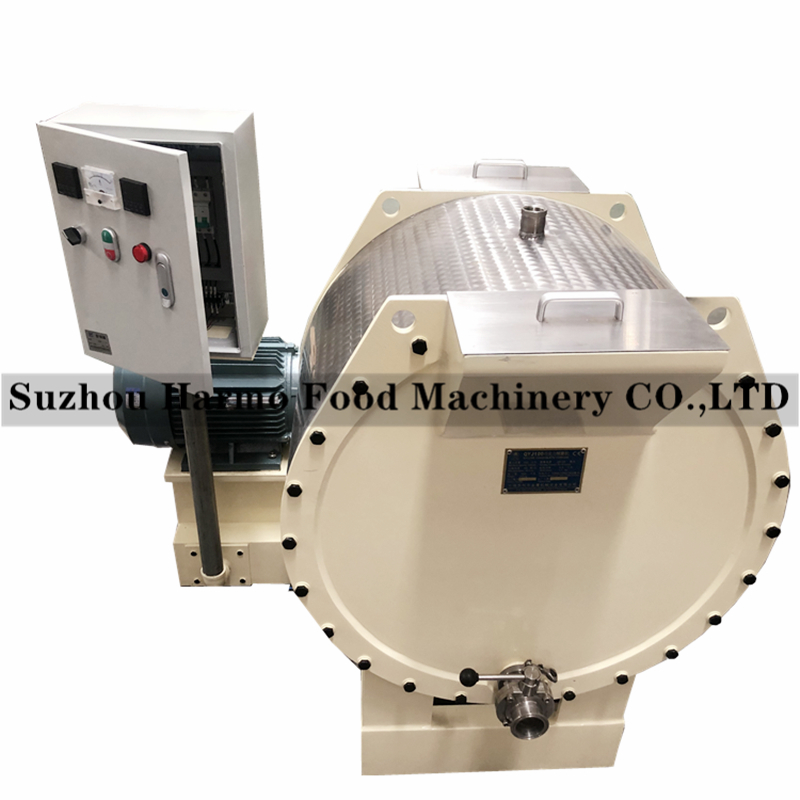

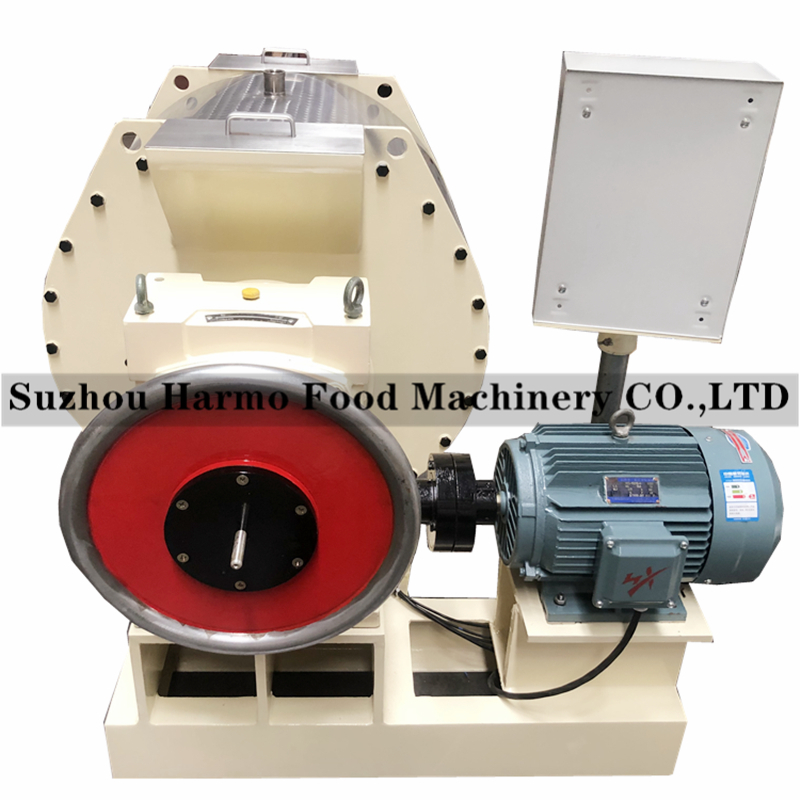

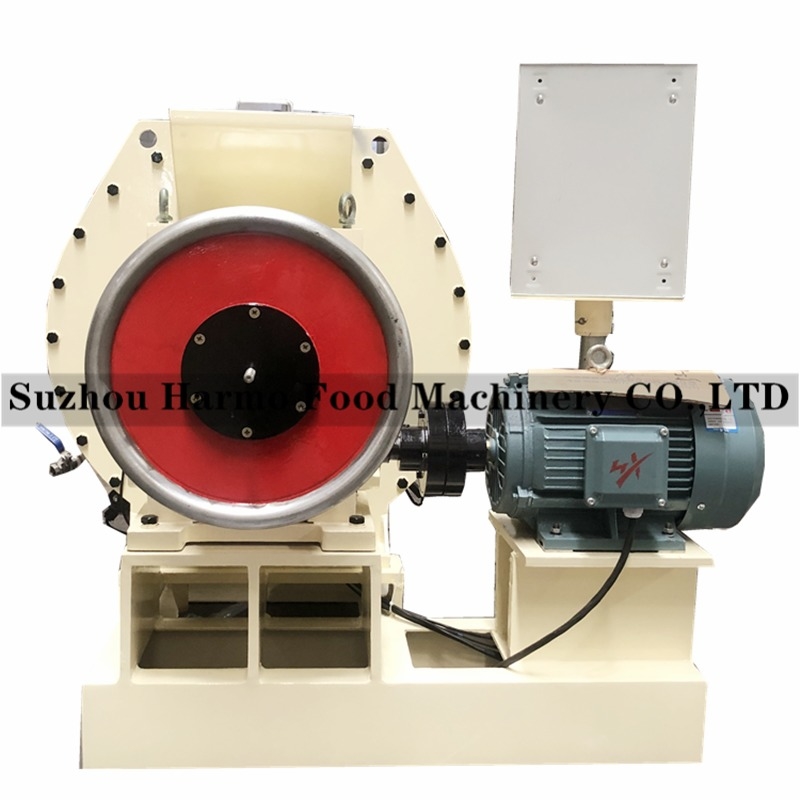

Product Images

Manufacturer Information

Suzhou Harmo Food Machinery is a professional chocolate machine manufacturer based in Suzhou, China. We maintain complete control over production quality by manufacturing nearly all components in-house, except for motors and electrical parts.

Our machines are exported worldwide, including to North America, South America, Europe, Africa, and Asia. We pride ourselves on combining manufacturing expertise with practical production solutions for our global customers.

Frequently Asked Questions

Q: What is your warranty period?

A: 12 months or 14 months after shipment.

Q: Do you test machines before shipping?

A: Yes, all machines are tested with oil or raw materials by our technicians.

Q: Can you meet European or American standards?

A: Yes, we regularly export to these regions and comply with their standards.

Q: Do you provide installation and training?

A: Yes, we can send technicians for installation, commissioning, and staff training.

Q: Can you customize machines?

A: Yes, we offer customization based on your specific production requirements.
