100L Chocolate Conche Refiner Machine for Food Factories

MOQ:	1
Price:	US$5,200

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Certification:

ISO CE

Voltage:

380V 50Hz 3Phase Or Customized

Power:

5.5 KW

Dimension:

1200*1150*1050mm

Weight:

1050 KG

Capacity:

100L

Grinding Fineness:

20~25micron

Grinding Time:

8-10h

Main Motor Power:

5.5 KW

Electrical Heating Power:

2.5 KW

Main Axle Speed:

48 Rpm

Material:

Carbon Steel Or Stainless Steel

Blade Material:

Manganese Steel

Batch Size:

100kg/batch

Temperature Control:

Automatic

Fineness Range:

20-25 Micron

Highlight:

100L chocolate conche machine

industrial chocolate refiner

food factory conche machine

Product Description

Universal Chocolate Conche Refiner 100kg Chocolate Machine

Product Specifications

Condition	New
Voltage	380V 50Hz 3Phase or Customized
Power	5.5 kW
Dimension (L×W×H)	1200×1150×1050mm
Weight	1050 KG
Warranty	1 Year
Application Fields	Snack food factory, Bakery
Raw Material	Milk, Cocoa Powder
Output Product	Chocolate
Key Selling Points	Easy to Operate
Capacity	100L
Material	Carbon Steel Or Stainless Steel
Grinding Time	8-10h
Grinding Fineness	20~25micron
MOQ	1 set

Technical Parameters

Model/Project	20L	100L	500L	1000L	1500L	2000L	3000L
Maximum Capacity (L)	20	100	500	1000	1500	2000	3000
Grinding Fineness (micron)	20-25	20-25	20-25	20-25	20-25	20-25	20-25
Main Axle Rotating Speed (rpm)	93	48	33	35	35	35	35
Grinding Time (h)	8-10	12-16	16-22	16-22	16-22	16-22	16-22
Main Motor Power (kw)	1.5	5.5	15	22	30	37	45

Product Features

Manganese steel blades and lining bars with extended lifespan, processed through special heating system
Operator-friendly design with 100kg batch capacity for easy material loading
Equipped with solenoid valve and automatic temperature control system
Compact footprint ideal for chocolate shops and labs
Combines three functions: raw material mixing, chocolate mass grinding/refining, and conching

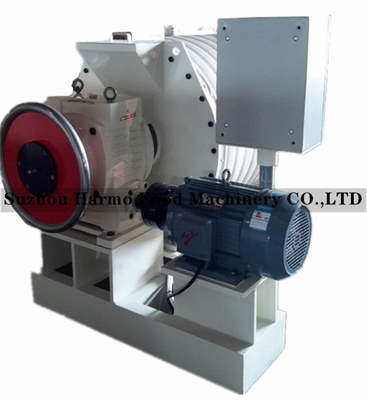

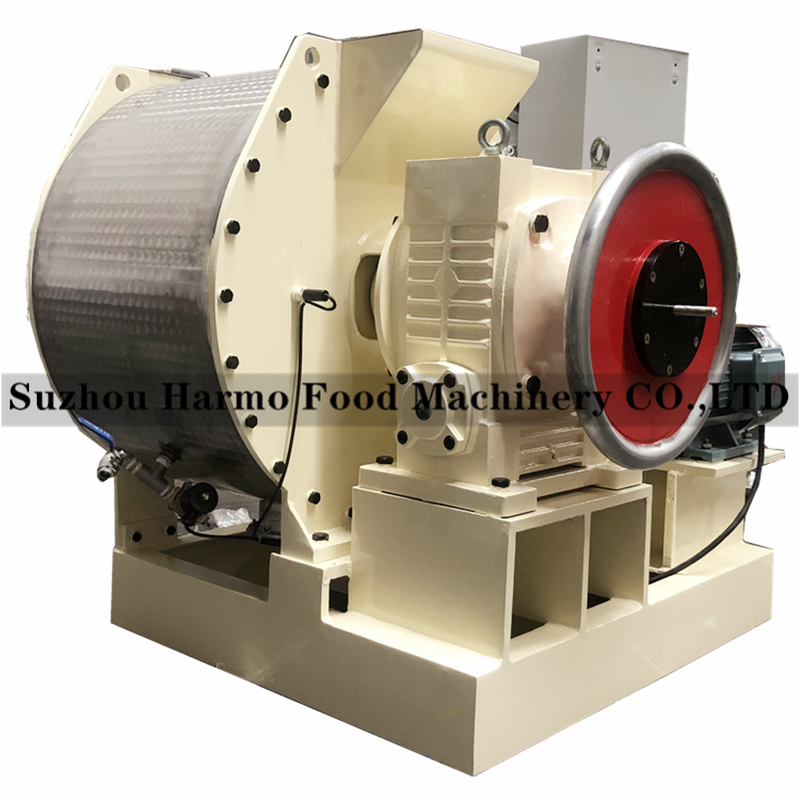

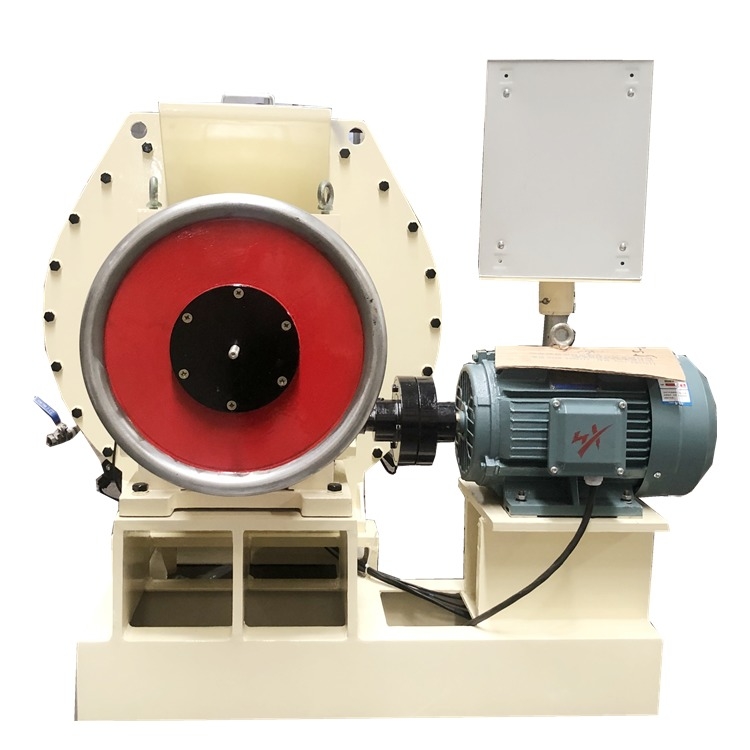

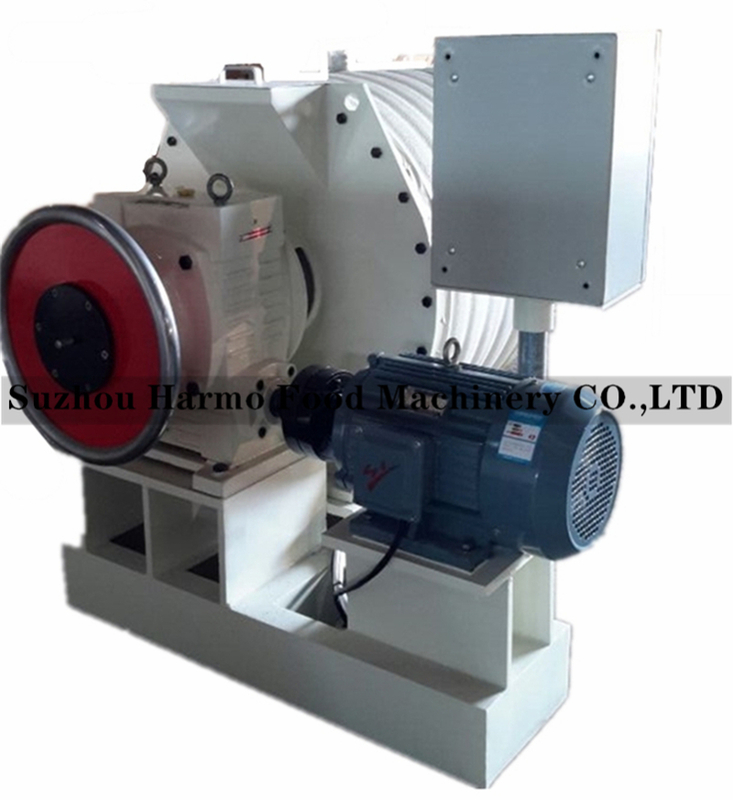

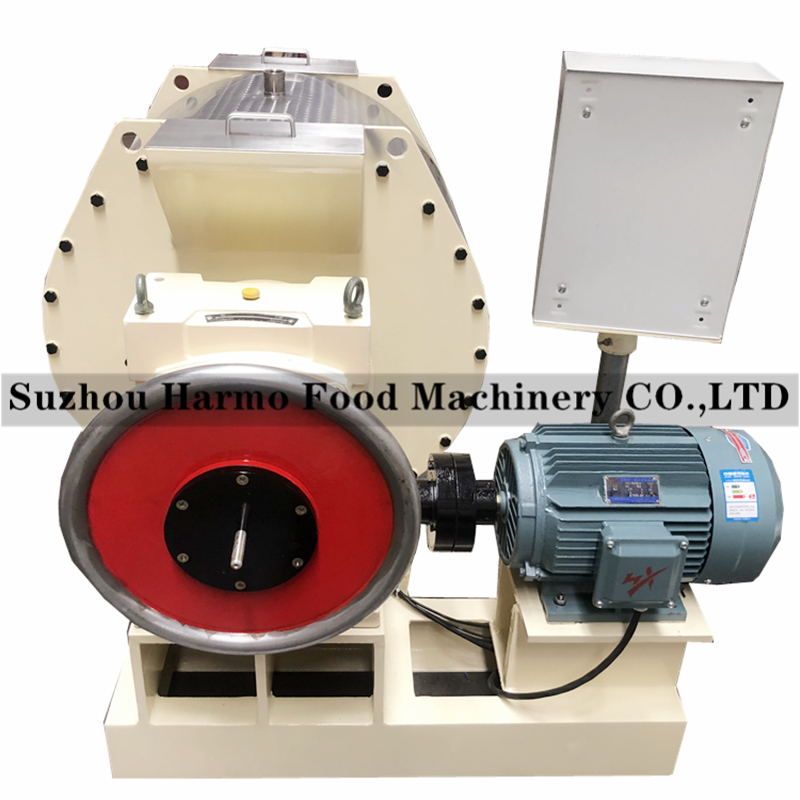

Product Images

Manufacturer Information

Suzhou Harmo Food Machinery, founded in Suzhou, China, specializes in chocolate machine manufacturing with complete production facilities. We maintain strict quality control by producing most components in-house (excluding motors and electrical parts). Our products are exported worldwide to USA, Canada, South America, Middle East, North Africa, Eastern Europe and Asia.

Frequently Asked Questions

Q1: Can you provide invitation letter for customers and arrange pick-up at the airport?

A1: Yes, we provide invitation letters and arrange transportation from Shanghai airport or train station.

Q2: What is your warranty period?

A2: 12 months or 14 months after shipment.

Q3: Will you test the machine after manufacturing?

A3: Yes, all machines are tested with oil or raw materials before shipping.

Q4: Can you supply machines conforming to European or American standards?

A4: Yes, we export to USA, Canada, Hungary, Belgium and other countries.

Q5: What if goods are damaged during shipping?

A5: We pack securely and will replace damaged parts promptly.
