100L Chocolate Conche Machine for Chocolate Mass Grinding and Refining

100L Chocolate Conche Machine for Chocolate Mass Grinding and Refining

  • Highlight

    100L chocolate conche machine

    ,

    chocolate mass grinding machine

    ,

    chocolate refining conche machine

  • Voltage
    380V 50Hz 3Phase Or Customized
  • Power
    5.5 KW
  • Dimensions
    1200*1150*1050mm
  • Weight
    1050 KG
  • Capacity
    100L
  • Grinding Fineness
    20~25micron
  • Grinding Time
    8-10h
  • Main Motor Power
    5.5 KW
  • Electrical Heating Power
    2.5 KW
  • Main Axle Speed
    48 Rpm
  • Material
    Carbon Steel Or Stainless Steel
  • Blade Material
    Manganese Steel
  • Batch Size
    100kg/batch
  • Temperature Control
    Automatic
  • Core Components
    Bearing, Motor, Gear
  • Place of Origin
    Jiangsu, China
  • Certification
    ISO CE
  • Minimum Order Quantity
    1
  • Price
    $5,200

100L Chocolate Conche Machine for Chocolate Mass Grinding and Refining

Universal Chocolate Conche Refiner - Chocolate Peanut Butter Production Line Chocolate Grinder (100L)
Product Specifications
Attribute Value
Condition New
Voltage 380V 50Hz 3Phase or Customized
Power 5.5 kW
Dimensions (L×W×H) 1200×1150×1050mm
Weight 1050 KG
Warranty 1 Year
Material Carbon Steel or Stainless Steel
Capacity 100L
Grinding Fineness 20~25 micron
Grinding Time 8-10 hours
MOQ 1 set
Product Description

Our 100L chocolate conche refiner is an ideal production solution for chocolate shops and labs, combining three essential functions: raw materials mixing, chocolate mass grinding & refining, and conching. This versatile machine can produce chocolate mass and various fillings for chocolate products.

Technical Parameters
Model/Project 20L 100L 500L 1000L 1500L 2000L 3000L
Maximum Capacity (L) 20 100 500 1000 1500 2000 3000
Grinding Fineness (micron) 20-25 20-25 20-25 20-25 20-25 20-25 20-25
Main Axle Rotating Speed (rpm) 93 48 33 35 35 35 35
Grinding Time (h) 8-10 12-16 16-22 16-22 16-22 16-22 16-22
Main Motor Power (kW) 1.5 5.5 15 22 30 37 45
Key Features
  • Manganese steel blades and lining bars with extended lifespan, strengthened by special heat treatment
  • Operator-friendly design with 100kg batch capacity for easy material loading
  • Equipped with solenoid valve and automatic temperature control system
  • Compact footprint ideal for limited space installations
  • Versatile application for chocolate shops, labs, and food production facilities
Product Images

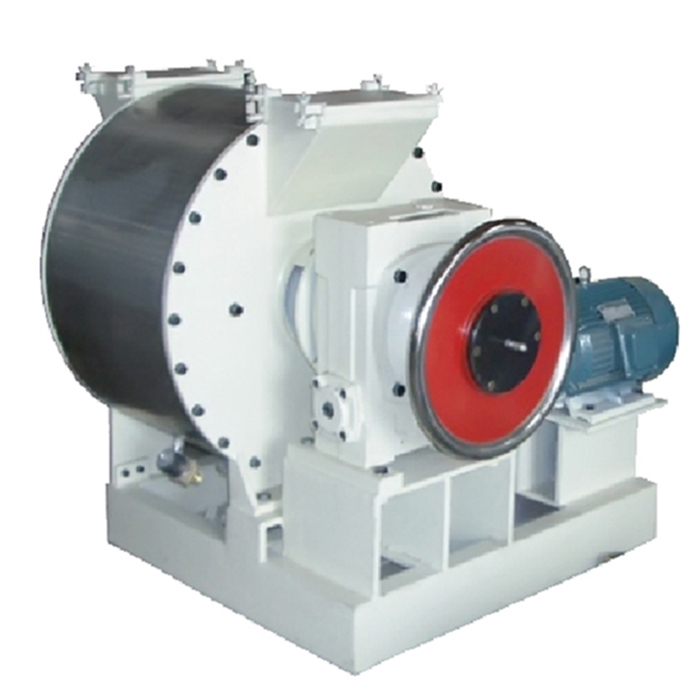

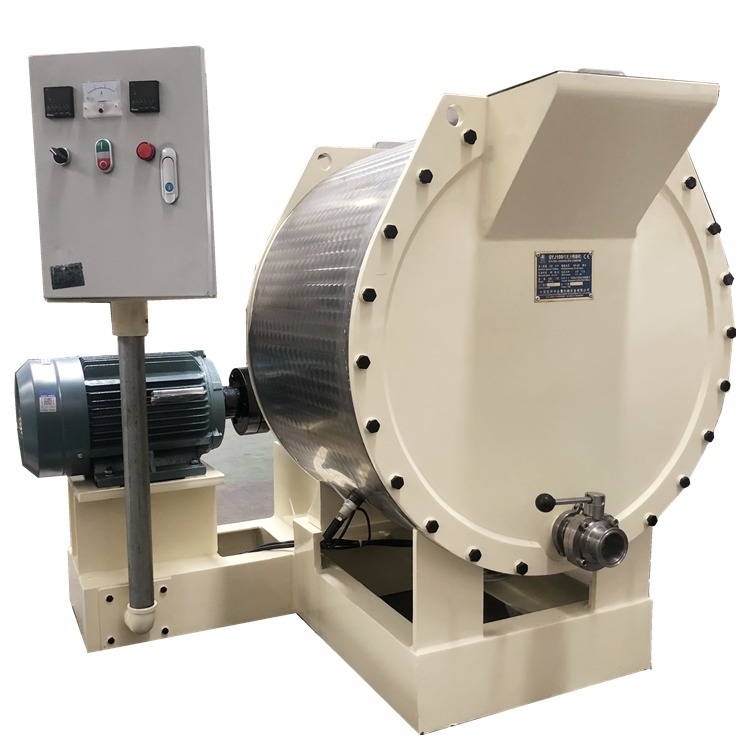

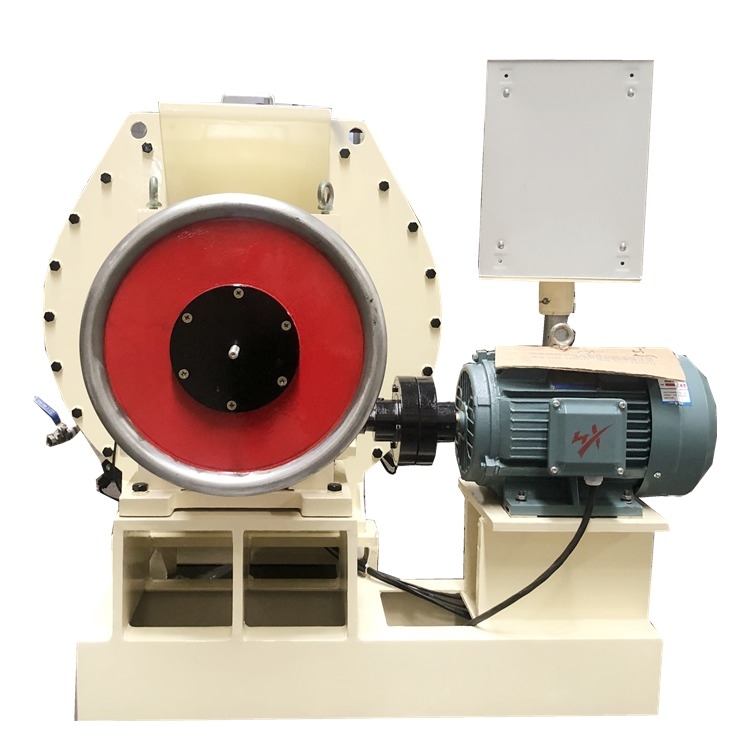

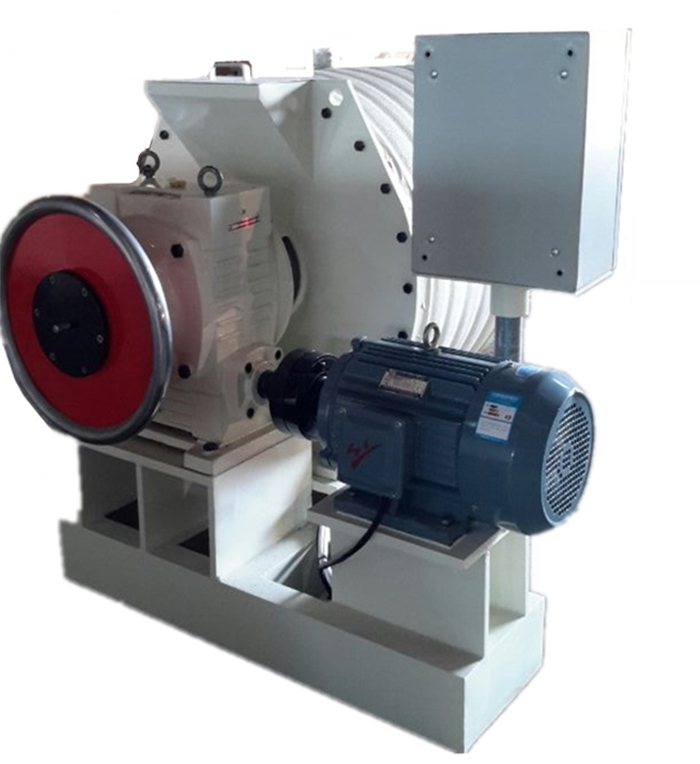

100L Chocolate Conche Machine for Chocolate Mass Grinding and Refining 0 100L Chocolate Conche Machine for Chocolate Mass Grinding and Refining 1 100L Chocolate Conche Machine for Chocolate Mass Grinding and Refining 2 100L Chocolate Conche Machine for Chocolate Mass Grinding and Refining 3
Manufacturing Capabilities

We produce 50 sets of 100L chocolate conche refiners monthly. With in-house manufacturing of nearly all components (except motors and electrical parts), we maintain strict quality control throughout the production process.

Company Profile
100L Chocolate Conche Machine for Chocolate Mass Grinding and Refining 4

Suzhou Harmo Food Machinery, based in Suzhou, China, is a professional chocolate machine manufacturer with complete production facilities. We export our equipment worldwide, including to North America, South America, Europe, Africa, and Asia.

Our manufacturing expertise enables us to provide optimal chocolate equipment and production solutions tailored to our customers' needs. Quality and service are our core principles, with prompt responses to all customer inquiries.

Certifications & Packaging
100L Chocolate Conche Machine for Chocolate Mass Grinding and Refining 5 100L Chocolate Conche Machine for Chocolate Mass Grinding and Refining 6
Frequently Asked Questions
Q1: Can you provide invitation letters and arrange airport pick-up for factory visits?
A1: Yes, we provide invitation letters and can arrange transportation from Shanghai airport or train station.
Q2: What is your warranty period?
A2: 12 months warranty, or 14 months after shipment.
Q3: Do you test machines before shipping?
A3: Yes, all machines undergo testing with oil or raw materials by our technicians.
Q4: Can you supply machines meeting European or American standards?
A4: Yes, we regularly export to USA, Canada, Hungary, Belgium and other markets.
Q7: Do you provide installation and commissioning services?
A7: Yes, we can send technicians for installation, commissioning, and operator training.
Q10: Can you customize machines?
A10: Yes, we offer custom solutions and turnkey projects based on your requirements.
