100L Chocolate Conche Refiner Machine 380V 5.5KW Carbon Steel

MOQ:	1
Price:	US$5,200

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Certification:

ISO CE

Voltage:

380V 50Hz 3Phase Or Customized

Power:

5.5 KW

Dimension:

1200×1150×1050 Mm

Weight:

1050 KG

Capacity:

100L

Grinding Fineness:

20~25 Micron

Grinding Time:

8-10h

Main Motor Power:

5.5 KW

Electrical Heating Power:

2.5 KW

Main Axle Speed:

48 Rpm

Material:

Carbon Steel Or Stainless Steel

Blade Material:

Manganese Steel

Temperature Control:

Automatic

Batch Size:

100kg/batch

Fineness Range:

20-25 Micron

Highlight:

100L chocolate conche machine

carbon steel chocolate refiner

380V chocolate conche machine

Product Description

Universal Chocolate Conche Refiner Machine - 100 kg Capacity

Product Specifications

Attribute	Value
Condition	New
Voltage	380V 50Hz 3Phase or Customized
Power	5.5 kW
Dimensions (L×W×H)	1200×1150×1050 mm
Weight	1050 KG
Warranty	1 Year
Material	Carbon Steel or Stainless Steel
Capacity	100L
Grinding Fineness	20-25 micron
Grinding Time	8-10 hours
MOQ	1 set

Technical Parameters

Model	20L	100L	500L	1000L	1500L	2000L	3000L
Maximum Capacity (L)	20	100	500	1000	1500	2000	3000
Grinding Fineness (micron)	20-25	20-25	20-25	20-25	20-25	20-25	20-25
Main Axle Rotating Speed (rpm)	93	48	33	35	35	35	35
Grinding Time (h)	8-10	12-16	16-22	16-22	16-22	16-22	16-22
Main Motor Power (kW)	1.5	5.5	15	22	30	37	45

Product Features

Three-in-one functionality: raw materials mixing, chocolate mass grinding & refining, and conching
Manganese steel blades and lining bars with extended lifespan through special heat treatment
User-friendly operation with 100kg batch capacity and automatic temperature control system
Compact design ideal for chocolate shops and laboratories
Produces chocolate mass and various fillings for chocolate products

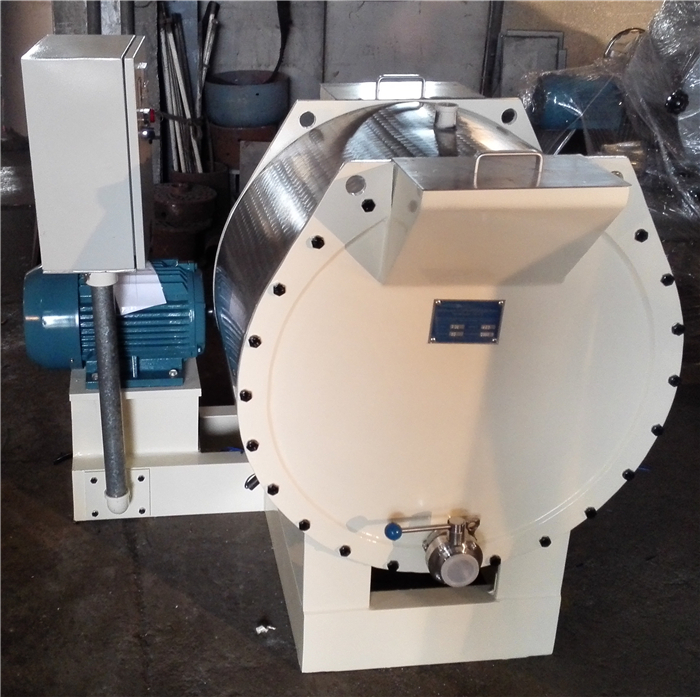

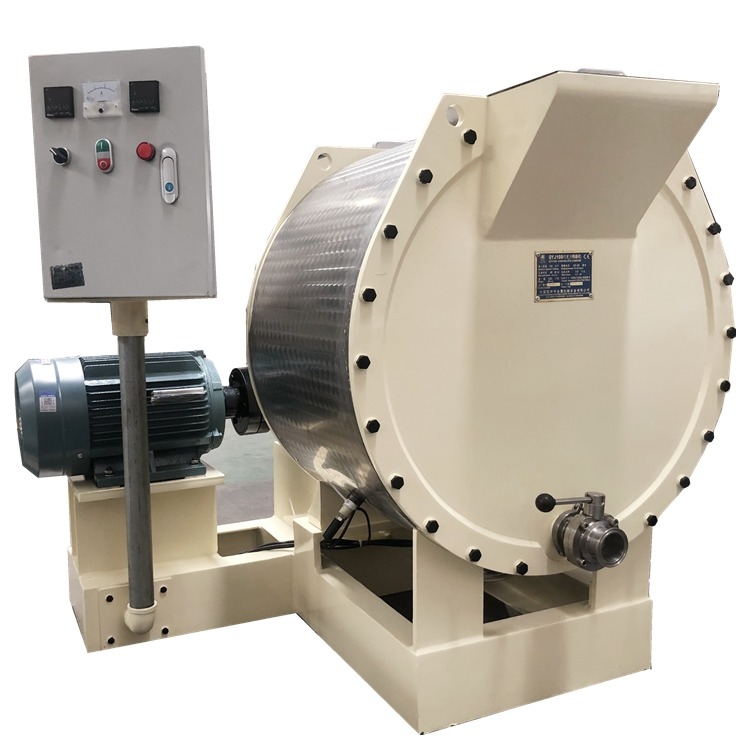

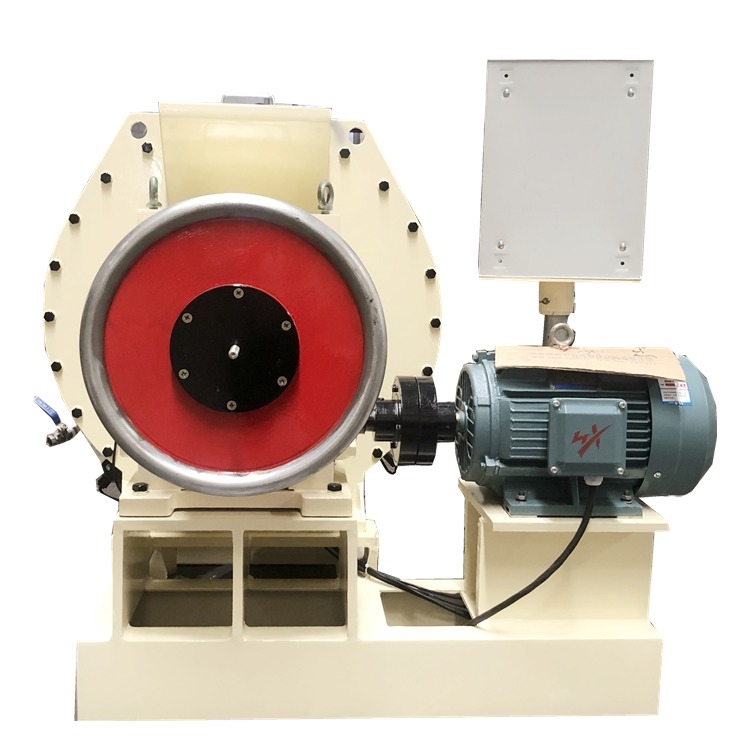

Product Images

Manufacturer Information

Suzhou Harmo Food Machinery is a professional chocolate machine manufacturer based in Suzhou, China. We produce complete chocolate production equipment with strict quality control from raw materials to finished products. Our machines are exported worldwide to USA, Canada, South America, Middle East, North Africa, Eastern Europe and Asia.

Frequently Asked Questions

Q: What is your warranty period?

A: Our warranty is 12 months or 14 months after shipment.

Q: Do you test machines before shipping?

A: Yes, all machines are tested with oil or raw materials before shipping by our technicians.

Q: Can you provide European or American standard machines?

A: Yes, we regularly export to USA, Canada, Hungary and Belgium with compliant machines.

Q: Do you provide installation and training services?

A: Yes, we can send technicians for installation, commissioning, and staff training at your facility.

Q: Can you customize machines?

A: Yes, we can customize machines according to your specific production requirements.
