20L Chocolate Conche Machine for Cocoa Refining 380V 3Phase

MOQ:	1
Price:	US$3,500

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Voltage:

380V 50Hz 3Phase Or Customized

Dimension:

920*600*1110mm

Weight:

295 KG

Capacity:

20L

Material:

Carbon Steel Or Stainless Steel

Power:

2.1w

Grinding Fineness:

20~25micron

Main Axle Speed:

93rpm

Grinding Time:

8-10h

Main Motor Power:

1.5kw

Electrical Heating Power:

0.6kw

Blade Material:

Manganese Steel

Lining Bars Material:

Manganese Steel

Temperature Control:

Automatic

Pressure Adjustment:

Manual

Highlight:

20L chocolate conche machine

380V cocoa refining machine

3 phase chocolate conche

Product Description

20L Mini Cocoa Chocolate Production Machine Chocolate Refiner Conche Machine

Product Specifications

Attribute	Value
Condition	New
Voltage	380V 50Hz 3Phase or Customized
Dimensions (L×W×H)	920×600×1110mm
Weight	295 KG
Warranty	1 Year
Material	Carbon Steel or Stainless Steel
Capacity	20L
Power	2.1kW
Grinding Fineness	20~25micron

Product Description

The 20L Chocolate Conche Refiner is a versatile solution for producing pure chocolate, compounds, coatings, pralines, truffles, and fillings. This 3-in-1 manufacturing system combines mixing, refining, and conching functions in a compact unit.

Key Features

Manganese steel blades and lining bars with extended lifespan through special heat treatment
Front-opening design for easy cleaning and maintenance
Solenoid valve and automatic temperature control system for precise temperature management
Manual pressure adjustment wheel for consistent batch quality
Compact footprint ideal for small production spaces

Technical Parameters

Model/Project	20L	100L	500L	1000L	1500L	2000L	3000L
Maximum Capacity (L)	20	100	500	1000	1500	2000	3000
Grinding Fineness (micron)	20-25	20-25	20-25	20-25	20-25	20-25	20-25
Main Axle Rotating Speed (rpm)	93	48	33	35	35	35	35
Grinding Time (h)	8-10	12-16	16-22	16-22	16-22	16-22	16-22
Main Motor Power (kW)	1.5	5.5	15	22	30	37	45

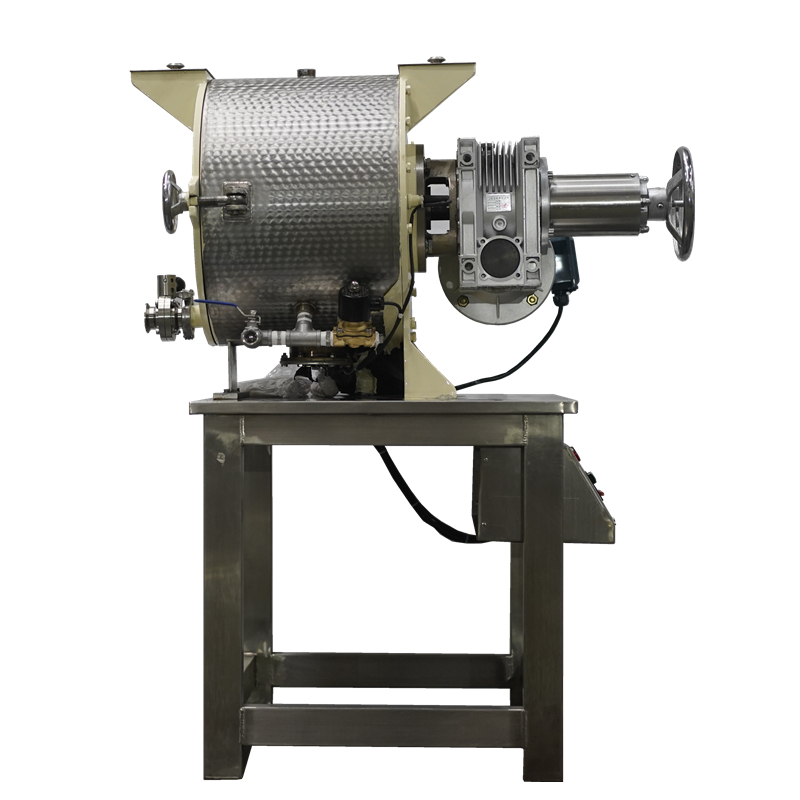

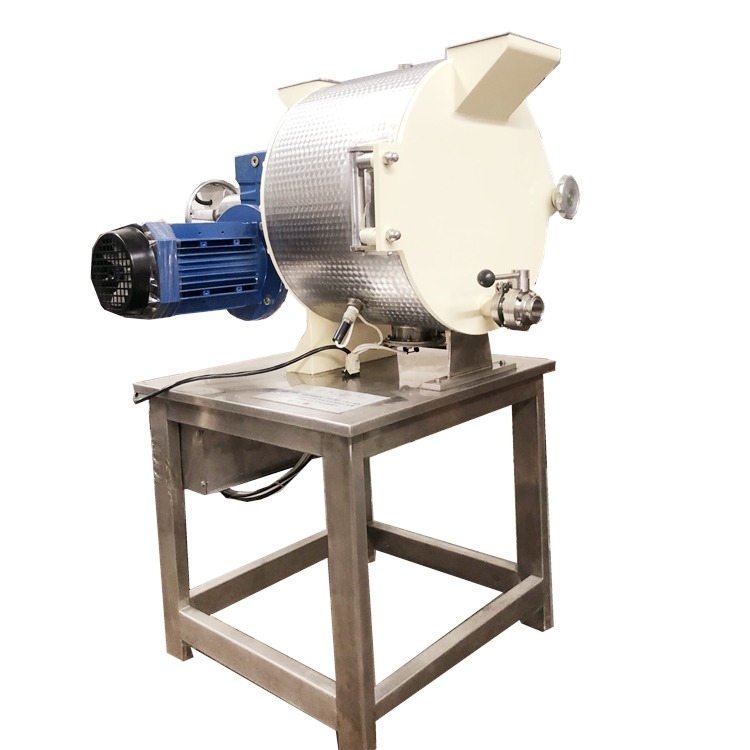

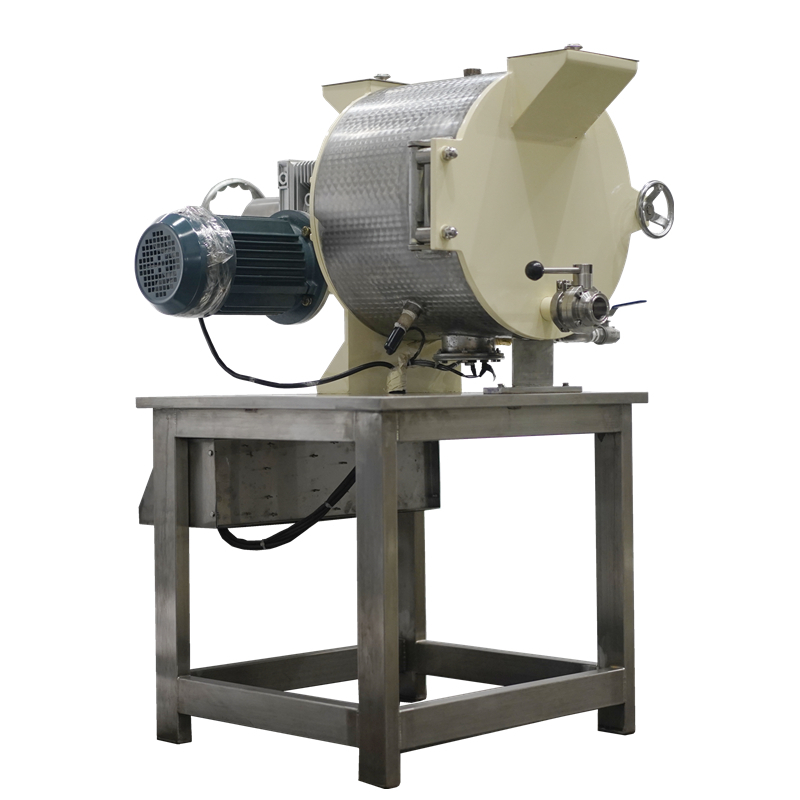

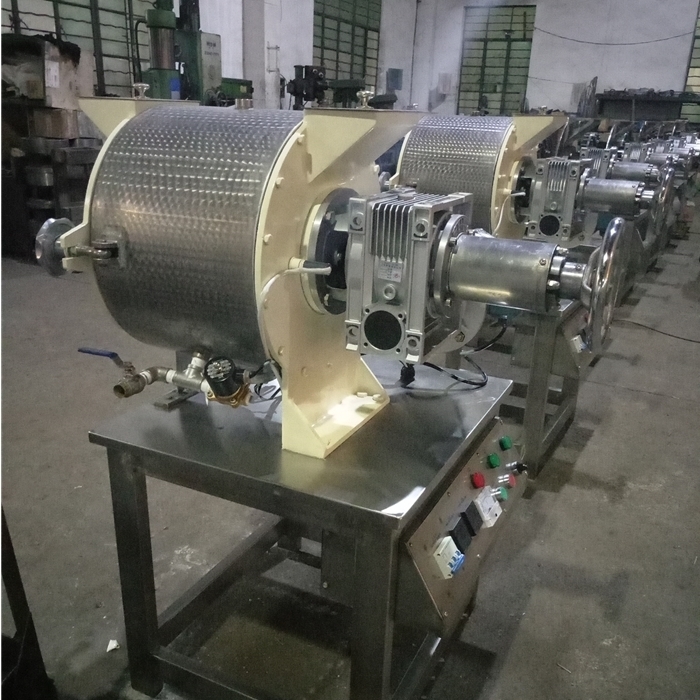

Product Images

Manufacturer Information

Suzhou Harmo Food Machinery is a professional chocolate machine manufacturer based in Suzhou, China. With complete manufacturing facilities, we produce nearly all components in-house (except motors and electrical parts) to ensure quality control from raw materials to finished products.

Frequently Asked Questions

Q1: What is your payment term?

A1: 30% T/T as down payment, 70% balance prepaid after inspection and before shipping. We also accept Irrevocable L/C at sight and West Union.

Q2: What is your warranty period?

A2: 12 months or 14 months after shipment.

Q5: Do you provide installation and commissioning service?

A5: Yes, we can send technicians to install and commission the machine in your factory, including staff training.

Q7: Can you make customized machines?

A7: Yes, we can customize machines according to your product requirements and provide turnkey projects.

Q15: How do you ensure long-term machine stability?

A15: We maintain strict quality control from raw materials to finished products, with complete production process documentation and trained staff following precise manufacturing techniques.
