20L Chocolate Conche Machine for Small Production 380V

MOQ:	1
Price:	US$3,500

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Voltage:

380V 50Hz 3Phase Or Customized

Dimension:

920*600*1110mm

Weight:

295 KG

Capacity:

20L

Material:

Carbon Steel Or Stainless Steel

Power:

2.1w

Grinding Fineness:

20~25micron

Main Motor Power:

1.5kw

Electrical Heating Power:

0.6kw

Main Axle Speed:

93rpm

Grinding Time:

8-10h

Blade Material:

Manganese Steel

Lining Bars Material:

Manganese Steel

Temperature Control:

Automatic

Pressure Adjustment:

Manual Wheel

Highlight:

20L chocolate conche machine

small production chocolate conche

380V chocolate conche machine

Product Description

20L Chocolate Conche Refiner - Small Production Chocolate Grinding Machine

Product Overview

The 20L Chocolate Conche Refiner is a versatile 3-in-1 solution for small to medium chocolate production, combining mixing, refining, and conching functions in a single machine. Ideal for chocolate shops, labs, and small food manufacturers.

Key Specifications

Attribute	Value
Condition	New
Voltage	380V 50Hz 3Phase or Customized
Dimensions (L×W×H)	920×600×1110mm
Weight	295 KG
Capacity	20L
Grinding Fineness	20-25 micron
Power	2.1kW
Material	Carbon Steel or Stainless Steel
Warranty	1 Year

Technical Specifications

Model/Project	20L	100L	500L	1000L	1500L	2000L	3000L
Maximum Capacity (L)	20	100	500	1000	1500	2000	3000
Main Axle Rotating Speed (rpm)	93	48	33	35	35	35	35
Grinding Time (h)	8-10	12-16	16-22	16-22	16-22	16-22	16-22
Main Motor Power (kW)	1.5	5.5	15	22	30	37	45

Product Features

3-in-1 functionality: mixing, refining, and conching in one machine
Manganese steel blades and lining bars with extended lifespan
Front-opening design for easy cleaning and maintenance

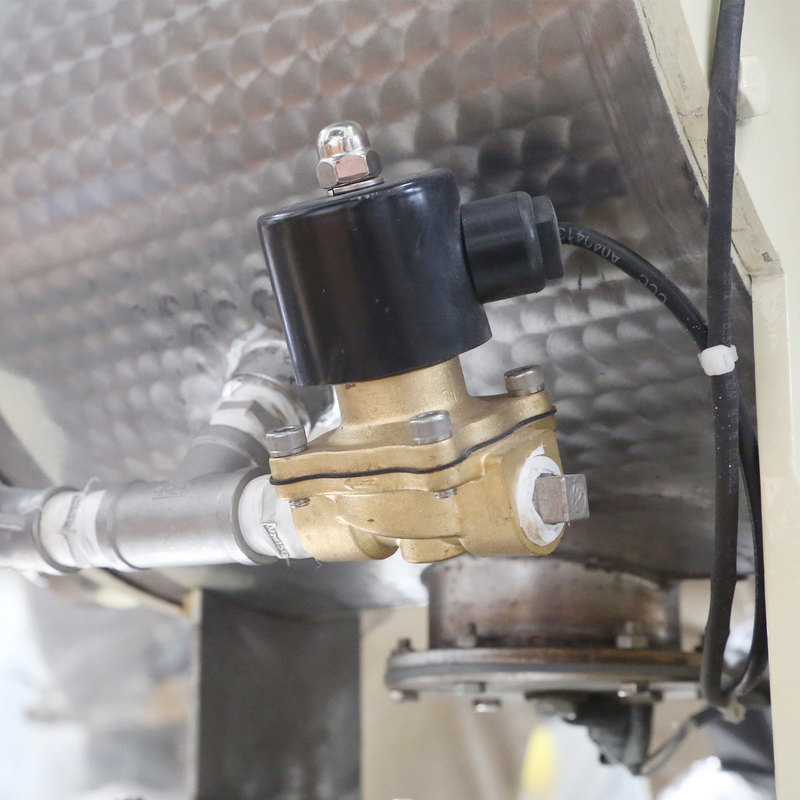

Solenoid valve and automatic temperature control system
Manual pressure adjustment wheel for precise control
Compact design ideal for limited spaces
Produces chocolate with 20-25 micron fineness

Applications

Ideal for producing pure chocolate, compounds, coatings, pralines, truffles, and fillings. Perfect for snack food factories, bakeries, chocolate shops, and food & beverage manufacturers.

Product Images

Manufacturer Information

Suzhou Harmo Food Machinery is a professional chocolate machine manufacturer based in China, with complete manufacturing facilities. We export worldwide to USA, Canada, South America, Middle East, North Africa, Eastern Europe and Asia.

Frequently Asked Questions

Q1: What is your payment term?

A1: 30% T/T as down payment, 70% balance prepaid after inspection and before shipping. We also accept Irrevocable L/C at sight and West Union.

Q2: What is your warranty period?

A2: 12 months or 14 months after shipment.

Q3: Can you provide installation service?

A3: Yes, we can send technicians for installation, commissioning, and staff training.

Q4: Do you provide recipes?

A4: Yes, we provide basic recipes that can be adjusted for local market demands.

Q5: Can you customize machines?

A5: Yes, we offer customized solutions and turnkey projects.
