40L Chocolate Conche Machine 5.5kw Carbon Steel Refiner

MOQ:	1
Price:	$3,800

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Voltage:

Customized

Power:

5.5kw

Dimension:

1200*1150*1050 Mm

Weight:

1050 KG

Capacity:

40L

Material:

Carbon Steel

Main Motor Power:

5.5 Kw

Electrical Heating Power:

2.5 Kw

Grinding Fineness:

20-25 Micron

Main Axle Rotating Speed:

93 Rpm

Grinding Time:

8-10 H

Color:

Silver

Core Components:

Bearing, Motor, Gear

Raw Material:

Milk, Cocoa Powder

Output Product:

Chocolate

Highlight:

40L chocolate conche machine

carbon steel chocolate refiner

5.5kw chocolate conche machine

Product Description

Portable Small Chocolate Making Machine Conche Refiner

Product Specifications

Attribute	Value
Condition	New
Voltage	Customized
Power	5.5kw
Dimension (L×W×H)	1200×1150×1050 mm
Weight	1050 KG
Warranty	1 Year
Application Fields	Snack food factory
Raw Material	Milk, Cocoa Powder
Output Product	Chocolate
Color	Silver
Capacity	40L
Material	Carbon steel
Main Motor Power	5.5 kw
Electrical Heating Power	2.5 kw

Machine Functionality

This chocolate conche refiner is designed for fine grinding of chocolate mass, serving as the main equipment in chocolate production lines. Its continuous operation type ensures efficient processing for manufacturing plants, food factories, and beverage shops.

Technical Specifications by Model

Model	20	100	500	1000	1500	2000	3000
Capacity	20L	100L	500L	1000L	1500L	2000L	3000L
Grinding Fineness (micron)	20-25	20-25	20-25	20-25	20-25	20-25	20-25
Main Axle Rotating Speed (rpm)	93	48	33	35	35	35	35
Grinding Time (h)	8-10	12-16	16-22	16-22	16-22	16-22	16-22
Main Motor Power (kw)	1.5	5.5	15	22	30	37	45
Electrical Heating Power (kw)	0.6	2.5	5	2×2	6	3×2	12
Weight (kg)	295	1050	2572	3050	4850	5350	7500
Dimension (L×W×H mm)	920×600×1110	1200×1150×1050	2465×1146×1312	2627×1280×1520	2918×1650×1920	3040×1912×1920	3450×2016×2280

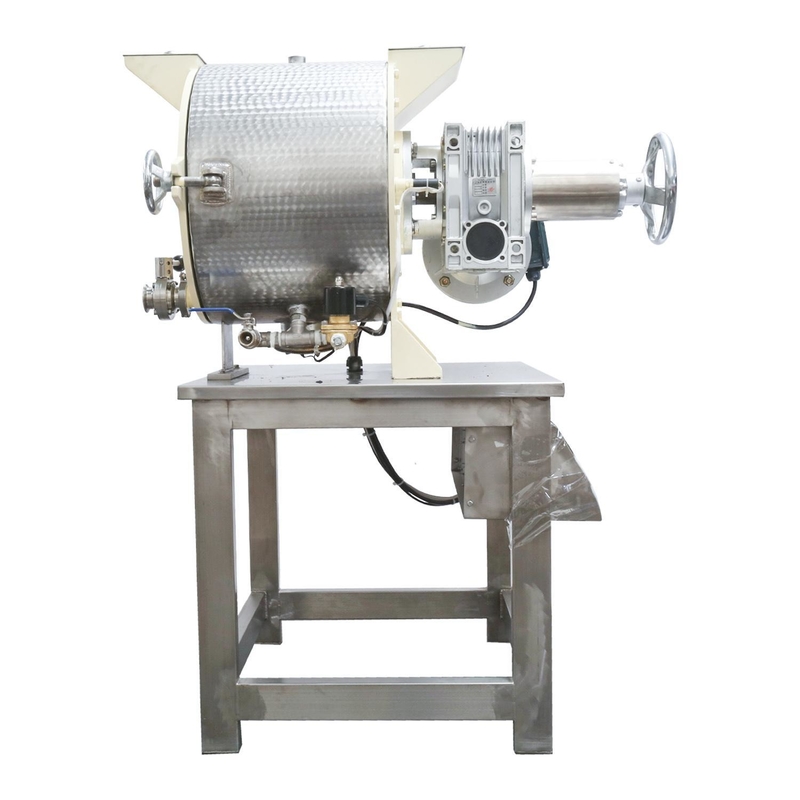

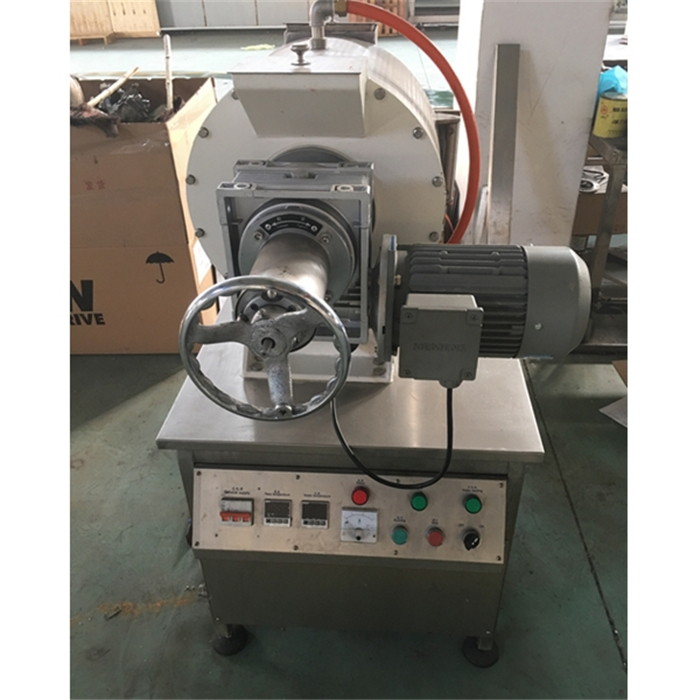

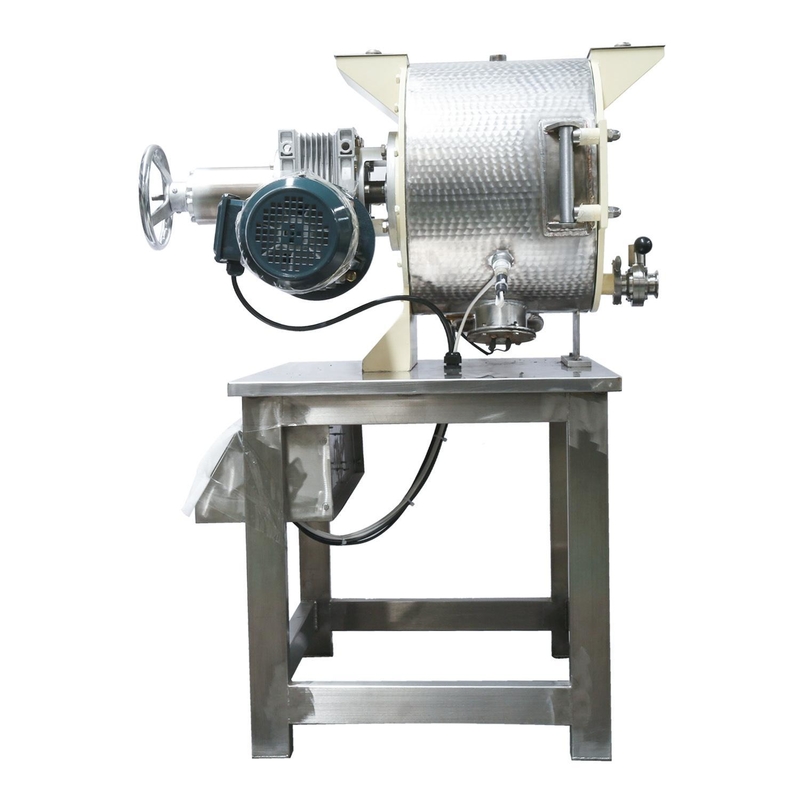

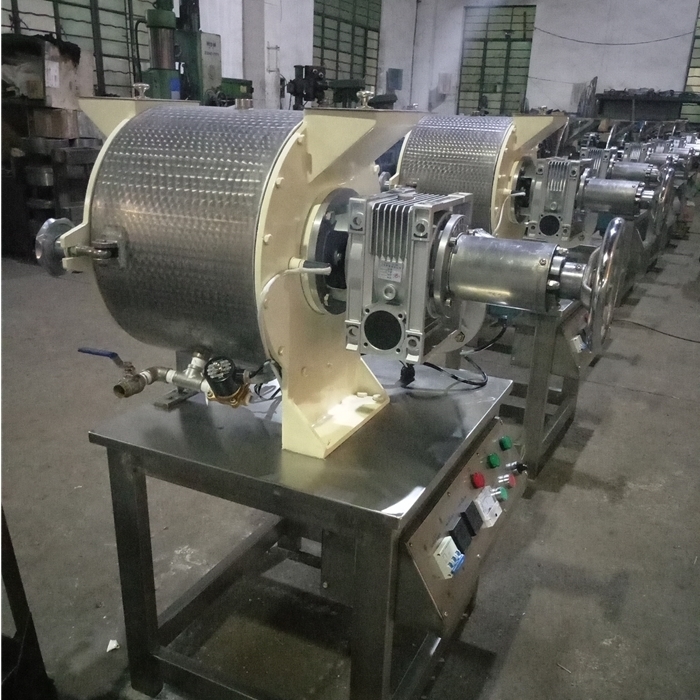

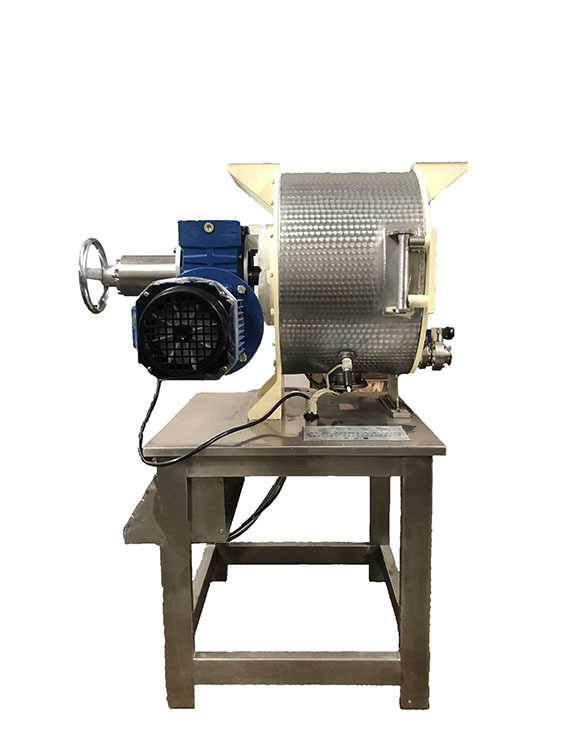

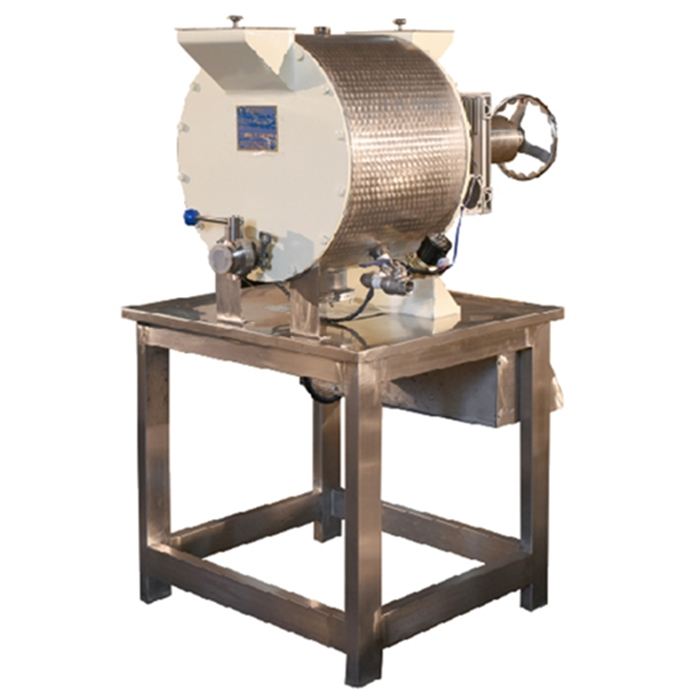

Product Images

Frequently Asked Questions

Q: What is your warranty period?

A: Our warranty is 12 months or 14 months after shipment.

Q: Will you test the machine after manufacturing?

A: Yes. All our machines will be tested with oil or raw materials before shipping by our technician.

Q: Can you supply machines which conform to European Standard or American standard?

A: Yes. We exported our machines to USA, Canada, Hungary and Belgium, etc.

Q: What's the raw material of lining bars and blades?

A: Both of them are manganese steel. Moreover, every piece of lining bars will be processed by heating system to improve their hardness.

Q: Do you provide recipe if customer buys conche refiner?

A: Yes, we can provide a basic recipe, then customer can adjust the recipe according to customer's local market demand.

Q: Do you provide instruction manual and maintenance schedule?

A: Yes. We will provide detailed instruction manual and maintenance schedule before shipping.

Q: Can you make customized conche refiner?

A: Yes, we can customize our conche refiners according to customer's requirements, like PLC control, vent fan, sampling valve, etc.
