100L Chocolate Conche Machine for Food Manufacturing 380V

MOQ:	1
Price:	$5,600

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Certification:

ISO CE

Voltage:

380V 50Hz 3Phase Or Customized

Power:

5.5 KW

Dimension:

1200×1150×1050 Mm

Weight:

1050 KG

Capacity:

100L

Grinding Fineness:

20~25 Micron

Grinding Time:

8-10h

Main Motor Power:

5.5 KW

Electrical Heating Power:

2.5 KW

Main Axle Speed:

48 Rpm

Material:

Carbon Steel Or Stainless Steel

Blade Material:

Manganese Steel

Batch Size:

100kg/batch

Temperature Control:

Automatic

Model:

100L Conche

Highlight:

100L chocolate conche machine

industrial chocolate conche machine 380V

food manufacturing chocolate conche

Product Description

100L Universal Chocolate Conche Refiner - Professional Chocolate Manufacturing Machine

Product Overview

The 100L chocolate conche refiner is a versatile, professional-grade machine designed for chocolate shops and production labs. It combines three essential functions: raw material mixing, chocolate mass grinding & refining, and conching. This all-in-one solution is perfect for creating premium chocolate mass and various fillings.

Key Specifications

Model	100L conche
Capacity	100L (100kg/batch)
Grinding Fineness	20-25 micron
Grinding Time	12-16 hours
Main Motor Power	5.5 kW
Electrical Heating Power	2.5 kW
Dimensions (L×W×H)	1200×1150×1050 mm
Weight	1050 kg
Voltage	380V 50Hz 3Phase (Customizable)
Material Options	Carbon Steel or Stainless Steel
Warranty	1 Year (core components included)

Technical Parameters Comparison

Model/Project	20L	100L	500L	1000L	1500L	2000L	3000L
Maximum Capacity (L)	20	100	500	1000	1500	2000	3000
Grinding Fineness (micron)	20-25	20-25	20-25	20-25	20-25	20-25	20-25
Main Axle Rotating Speed (rpm)	93	48	33	35	35	35	35
Grinding Time (h)	8-10	12-16	16-22	16-22	16-22	16-22	16-22
Main Motor Power (kw)	1.5	5.5	15	22	30	37	45
Electrical Heating Power (kw)	0.6	2.5	5	2×2	6	3×2	12
Weight (kg)	295	1050	2572	3050	4850	5350	7500
Outside Dimensions (mm)	920×600×1110	1200×1150×1050	2465×1146×1312	2627×1280×1520	2918×1650×1920	3040×1912×1920	3450×2016×2280

Premium Features

Durable Construction: Blades and lining bars made from manganese steel with extended lifespan, processed through our special heating system for added strength
Operator-Friendly Design: 100kg batch capacity makes loading raw materials easy and efficient
Advanced Controls: Equipped with solenoid valve and automatic temperature control system for precise operation
Space Efficient: Compact footprint ideal for chocolate shops and production labs with limited space
Versatile Application: Processes milk, cocoa powder, and other ingredients to create premium chocolate mass and fillings

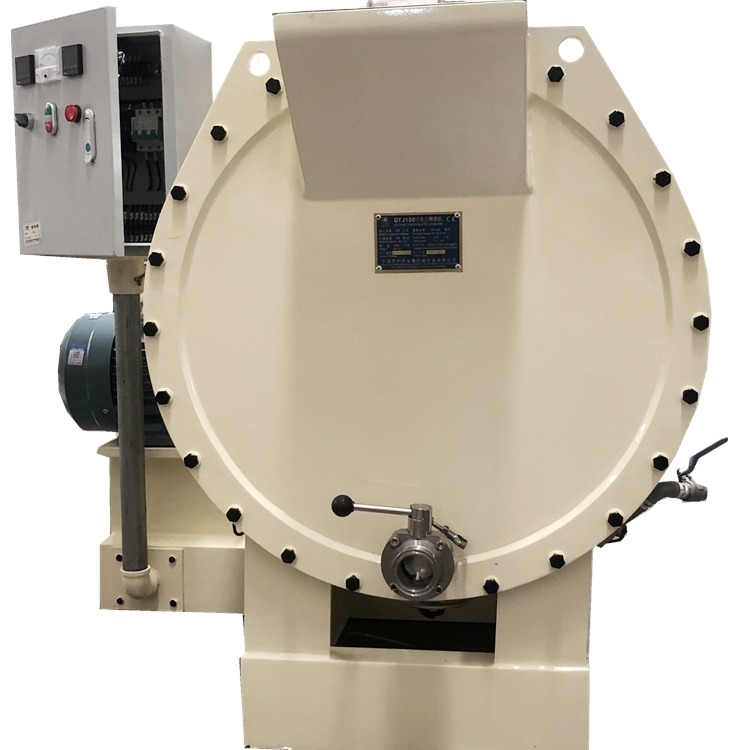

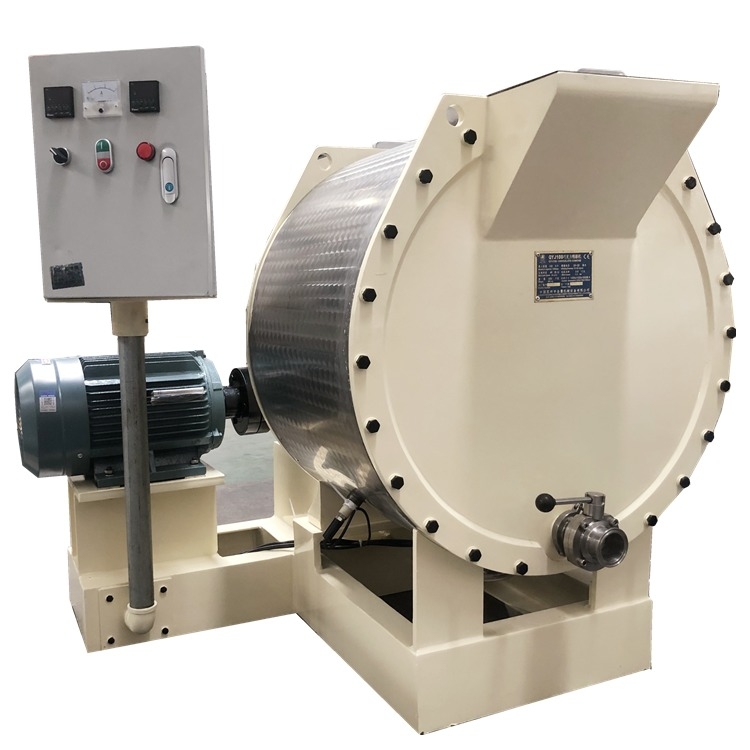

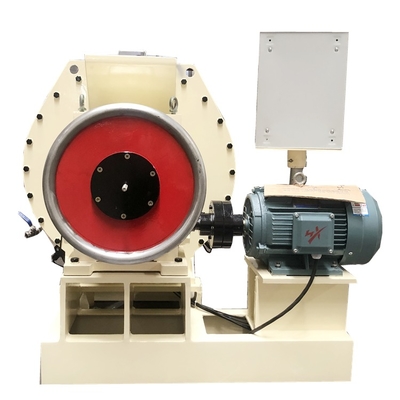

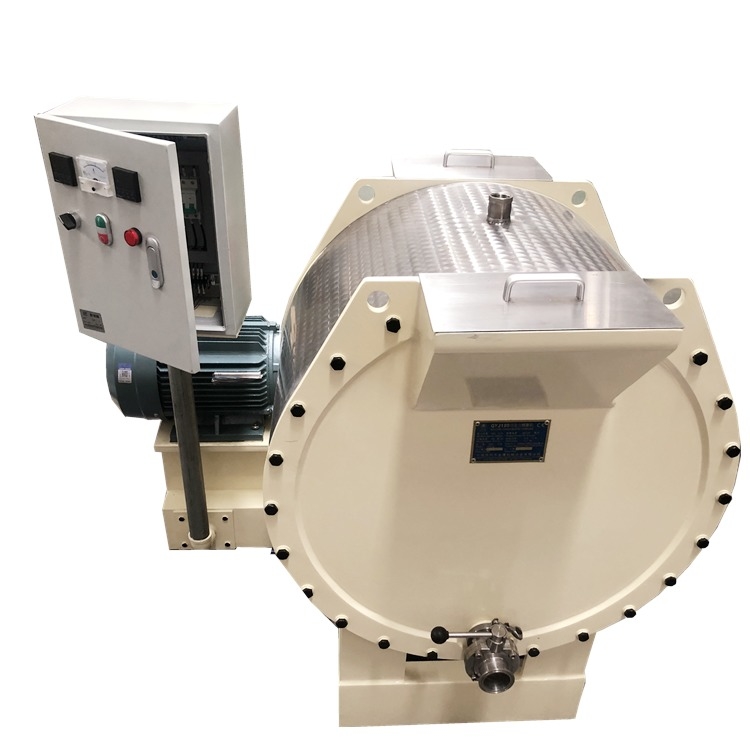

Product Images

Manufacturer Information

Suzhou Harmo Food Machinery, based in Suzhou, China, is a professional chocolate machine manufacturer with complete production facilities. We maintain strict quality control by manufacturing nearly all components in-house (except motors and electrical parts). Our machines are exported worldwide, including to North America, South America, Europe, Middle East, and Asia.

Frequently Asked Questions

Q1: Can you provide invitation letter for factory visits?

A1: Yes, we provide invitation letters and can arrange airport/train station pickup in Shanghai.

Q2: What is your warranty period?

A2: 12 months warranty, extendable to 14 months after shipment.

Q3: Do you test machines before shipping?

A3: Yes, all machines undergo thorough testing with oil or raw materials by our technicians.

Q4: Can you meet European or American standards?

A4: Yes, we regularly export to USA, Canada, Hungary, Belgium and other markets.

Q5: What if goods are damaged during shipping?

A5: We pack securely and will ship replacement parts for any damage during transit.

Q6: Can you provide installation and training?

A6: Yes, we offer technician dispatch for installation, commissioning, and staff training.

Q7: Do you provide recipes with production lines?

A7: Yes, we supply basic recipes that can be adapted to local market requirements.

Q8: Can you customize machines?

A8: Yes, we offer custom solutions and complete turnkey projects.
