Chocolate Conche Machine
Created with Pixso. 2T Chocolate Conche Machine for Industrial Chocolate Production
2T Chocolate Conche Machine for Industrial Chocolate Production
  • name
  • name
  • name
  • name
  • name
  • name

2T Chocolate Conche Machine for Industrial Chocolate Production

MOQ: 1
Price: $25,500
Detail Information
Product Description
Detail Information
Place of Origin:
Jiangsu, China
Voltage:
380V 50Hz 3Phase Or Customized
Power:
17
Dimension:
3040*1912*1920mm
Weight:
5350 KG
Capacity:
2T
Grinding Type:
Automatic With Motor
Liners Material:
65# Manganese Steel
Grinding Time:
10-16h
Grinding Fineness:
20~25micron
Main Motor Power:
37kw
Electrical Heating Power:
3×2kw
Main Axle Speed:
35rpm
Control System:
Control Panel (PLC Optional)
Temperature Control:
Automatic Water System
Material Processing:
Special Heating System
Highlight:

2T industrial chocolate conche machine

,

chocolate conche machine for production

,

industrial chocolate conche with warranty

Product Description
2T Conche Chocolate Grinder Machine
Product Specifications
Attribute Value
Condition New
Voltage 380V 50Hz 3Phase or Customized
Power 17kW
Dimension (L×W×H) 3040×1912×1920mm
Weight 5350 KG
Warranty 1 Year
Capacity 2T
Grinding Fineness 20~25micron
Grinding Time 10-16h
MOQ 1 set
Technical Parameters
Model/Project 20L 100L 500L 1000L 1500L 2000L 3000L
Maximum capacity (L) 20 100 500 1000 1500 2000 3000
Grinding Fineness (micron) 20-25 20-25 20-25 20-25 20-25 20-25 20-25
Main Axle Rotating Speed (rpm) 93 48 33 35 35 35 35
Grinding time (h) 8-10 12-16 16-22 16-22 16-22 16-22 16-22
Product Description

The Chocolate Conche Refiner is a universal solution for producing pure chocolate, compounds, coatings, pralines, truffles, and fillings for small to medium capacities. This 3-in-1 manufacturing solution combines mixing, refining, and conching functions in a single machine.

Key Features
  • Manganese steel blades and lining bars with extended lifespan, processed through a special heating system
  • Control panel operation with optional PLC control
  • Ideal for medium and large capacity chocolate and confectionery manufacturers
  • Stable performance ensured by strict manufacturing techniques
  • Main shaft with blades and automatic pressure adjustment motor for consistent quality
  • Solenoid valve and automatic temperature water system for precise temperature control
Product Images

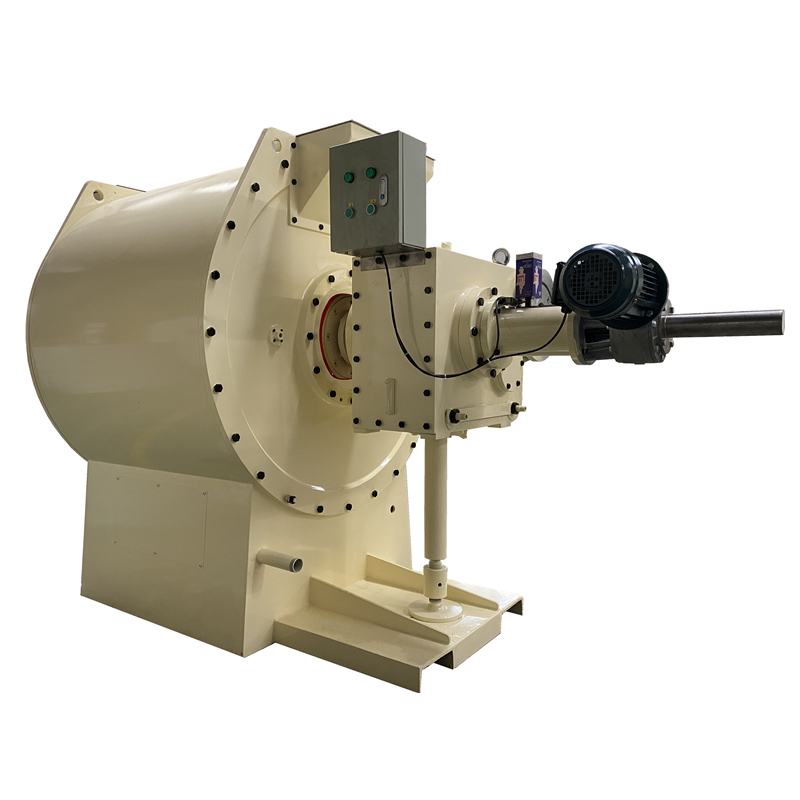

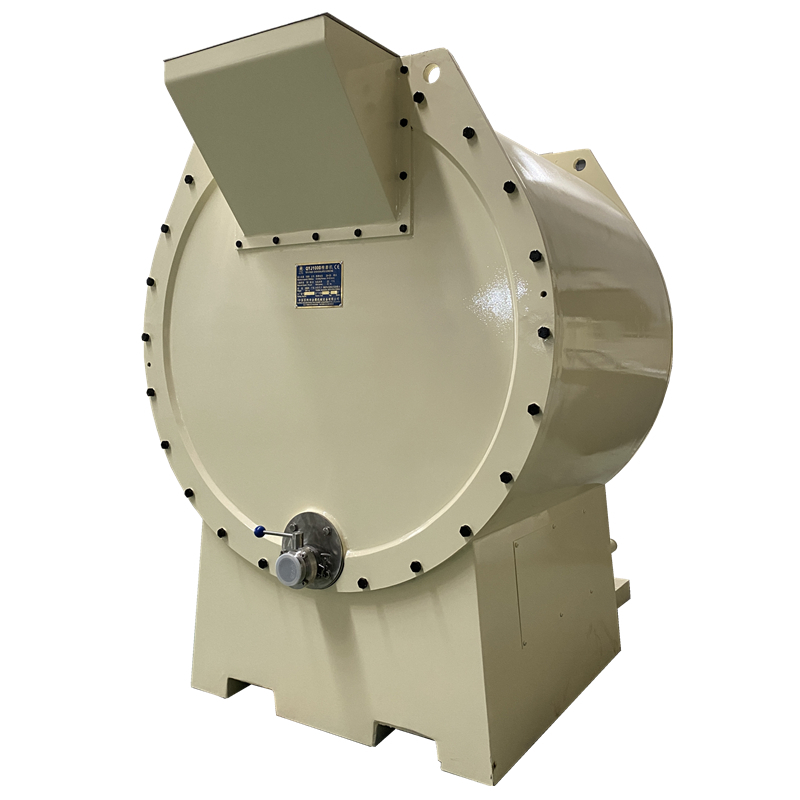

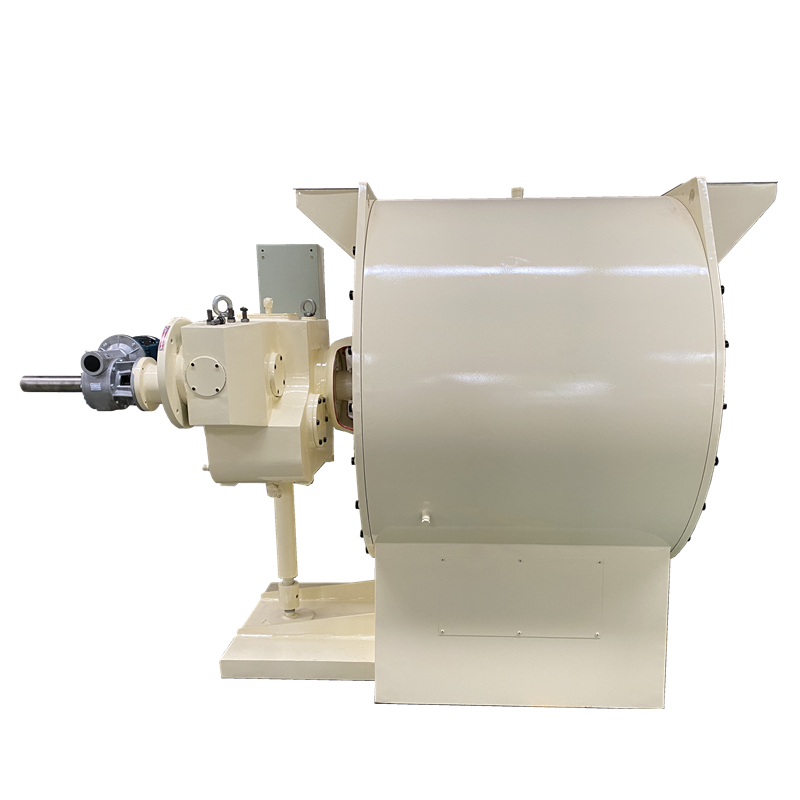

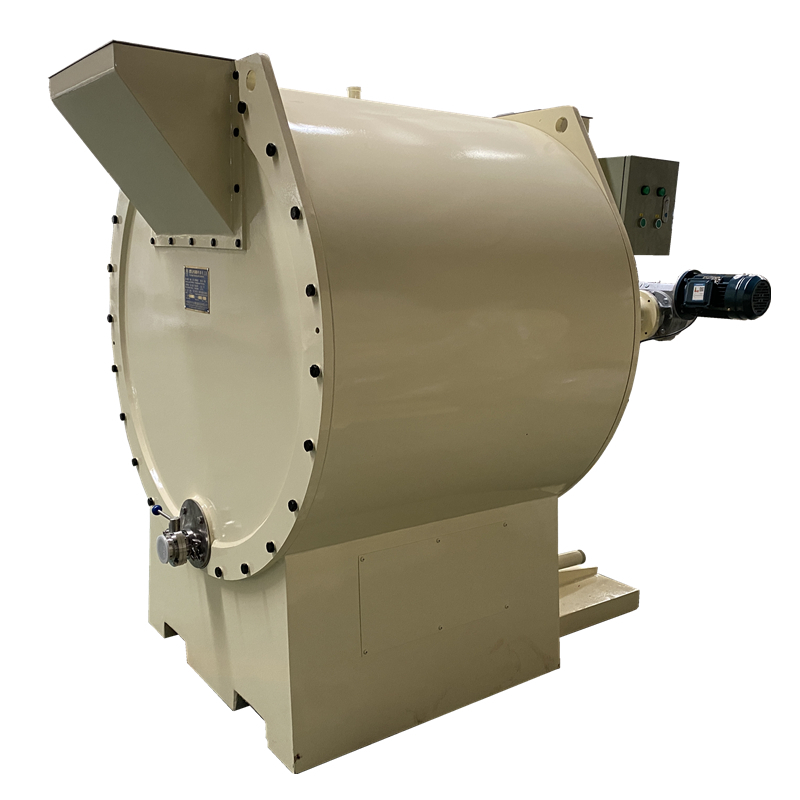

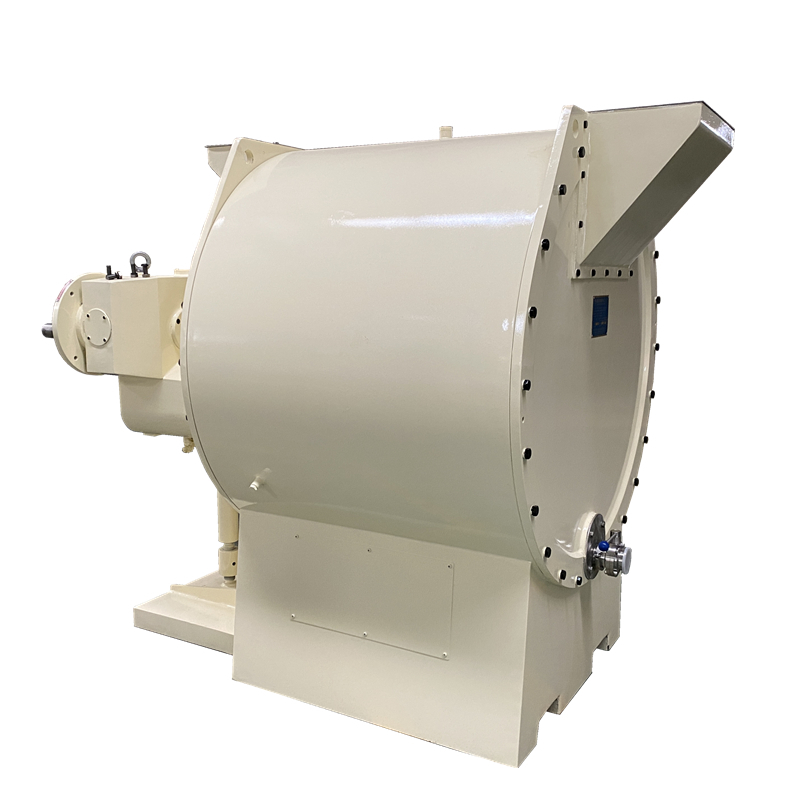

2T Chocolate Conche Machine for Industrial Chocolate Production 0 2T Chocolate Conche Machine for Industrial Chocolate Production 1 2T Chocolate Conche Machine for Industrial Chocolate Production 2 2T Chocolate Conche Machine for Industrial Chocolate Production 3
Manufacturing Capabilities

We produce 50 sets of chocolate conche refiners monthly. Except for motors and electrical components, nearly all parts are manufactured in-house, ensuring strict quality control from raw materials to finished products.

Frequently Asked Questions
Q1: Can you provide invitation letters for factory visits?
A1: Yes, we provide invitation letters and can arrange airport pickups from Shanghai.
Q2: What is your warranty period?
A2: 12-14 months warranty after shipment.
Q3: Do you test machines before shipping?
A3: Yes, all machines are tested with oil or raw materials by our technicians.
Q4: Can you supply machines meeting European or American standards?
A4: Yes, we regularly export to USA, Canada, Hungary, and Belgium.
Q5: What if goods are damaged during shipping?
A5: We pack securely and will ship replacement parts for any damage.
Q6: Do you provide installation and training services?
A6: Yes, we can send technicians for installation, commissioning, and staff training.
