Suzhou Harmo Food Machinery Co., Ltd
| Place of Origin: | Suzhou, China |
|---|---|
| Brand Name: | Harmo |
| Certification: | CE ISO |
| Model Number: | QYJ500 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Pallet |
| Delivery Time: | 60 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 30 sets/month |
| Product Name: | 500kg/Batch Chocolate Conche Machine Chocolate Mass Grinding Machine | Condition: | New |
|---|---|---|---|
| Capacity: | 500kg/day | Grinding Fineness: | 20-25 Micron |
| Power: | 15kw | Machinery Function: | Chocolate Mass Refining And Conching |
| Material: | Carbon Steel Or Stainless Steel | Grinding Time: | 8-10 Hours |
| Motor: | Chinese Brand Or European Brand | Electrical Appliances: | Chinese Brand Or European Brand |
| Voltage: | Three Phase | Weight: | 2572kg |
| Dimension: | 2465*1146*1312mm | Warranty: | 12 Months |
| Highlight: | 500kg/Batch Chocolate Conche Machine,Pure Conche Chocolate Equipment,Chocolate Mass Grinding Machine |
||
500kg/Batch Chocolate Conche Machine Chocolate Mass Grinding Machine
Product Description
Application:
500kg/batch chocolate conche machine chocolate mass grinding machine is the universal solution for making pure chocolate, compounds, coatings, pralines, truffles and fillings,etc from small to medium yields.
Our 500kg/batch chocolate conche machine chocolate mass grinding machine is versatile which means 3 in 1 manufacturing solution fullfillng the functions of raw materials mixing, refining and conching. Once a mixed mass is procured, the refining and conching process will start.
Our 500kg/batch chocolate conche machine chocolate mass grinding machine has a main shaft which equipped with blades and an automatic pressure adjustment motor to adjust the pressure on the raw materials between the baldes and lining bars. Chocolate Conche Machine allows reliable process control to achieve and maintain constant mass quality between batches.
Moreover, our chocolate mass refiner chocolate conche machine has solenoid valve and automatic temperature water system. It makes proper tempeature inside conche refiner come ture and customer will obtaine delicate chocolate mass.
Technical parameters with Chocolate Mass Grinding Machine:
| Model | 20 | 100 | 500 | 1000 | 1500 | 2000 | 3000 |
| Capacity | 20L | 100L | 500L | 1000L | 1500L | 2000L | 3000L |
| Grinding Fineness(micron) | 20-25 | 20-25 | 20-25 | 20-25 | 20-25 | 20-25 | 20-25 |
| Main Axle Rotating Speed(rpm) | 93 | 48 | 33 | 35 | 35 | 35 | 35 |
| Grinding time(h) | 8-10 | 12-16 | 16-22 | 16-22 | 16-22 | 16-22 | 16-22 |
| Main moter power(kw) | 1.5 | 5.5 | 15 | 22 | 30 | 37 | 45 |
| Electrical heating power(kw) | 0.6 | 2.5 | 5 | 2×2 | 6 | 3×2 | 12 |
| Weight(kg) | 295 | 1050 | 2572 | 3050 | 4850 | 5350 | 7500 |
| Dimension(mm) | 920×600×1110 | 1200×1150×1050 | 2465×1146×1312 | 2627×1280×1520 | 2918×1650×1920 | 3040×1912×1920 | 3450×2016×2280 |
Features of 500kg/Batch Chocolate Conche Machine Chocolate Mass Grinding Machine :
1. Material of blades and lining bars are Manganese steel which with long living time. Moreover, every piece of lining bars will
be processed and strengthened by our special heating system.
2. Chocolate mass refiner chocolate conche machine controlled by control panel. But PLC control is optional;
3. It’s suitable for medium and big capacity chocolate manufacturers and confectionery manufacturers;
4. Chocolate mass refiner chocolate conche machineare made by strict manufacturing technique, so its performance is stable always.

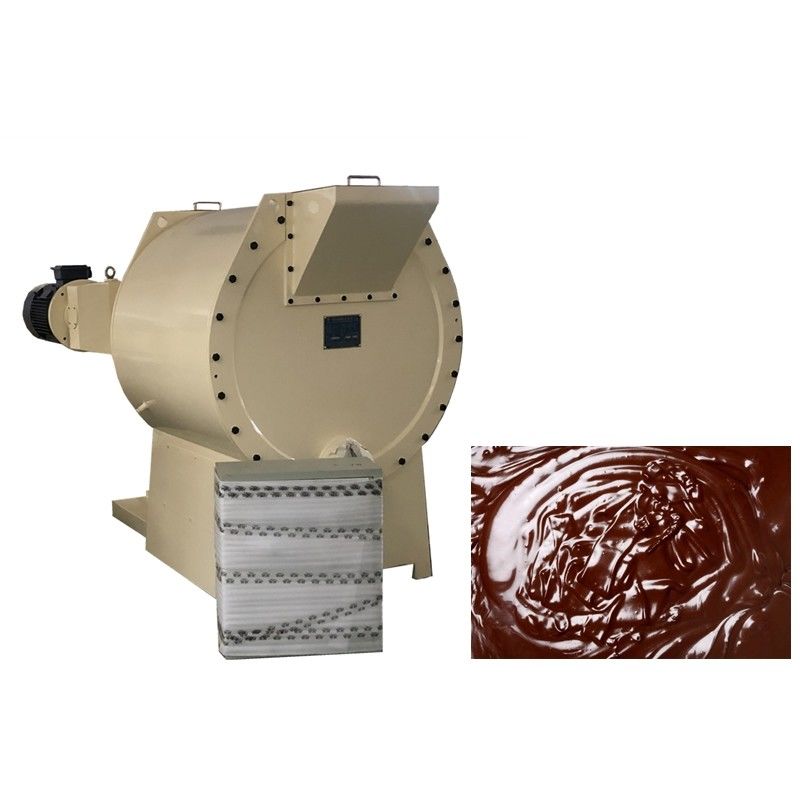

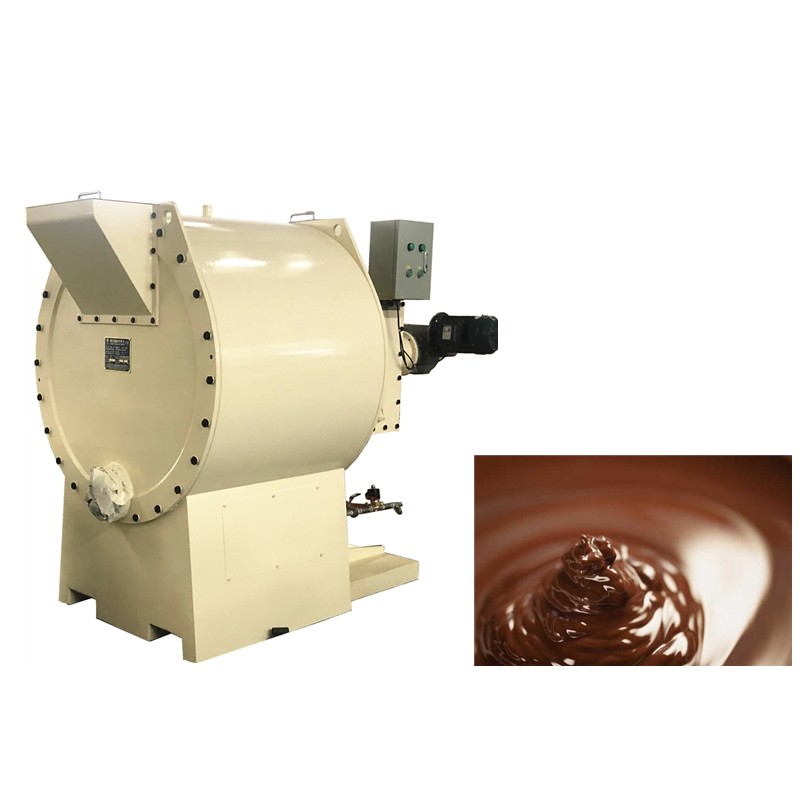

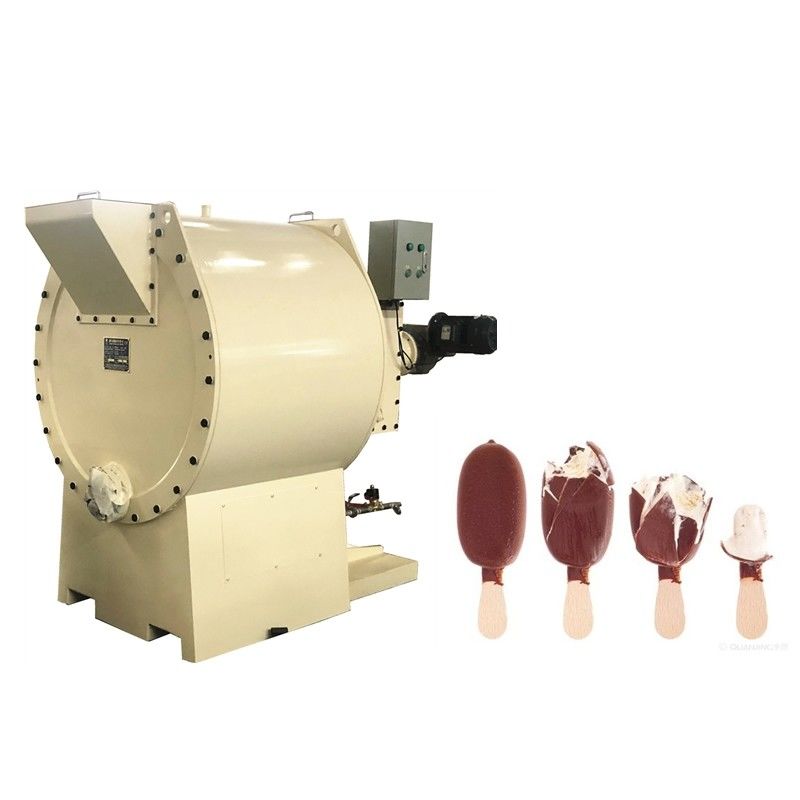

Main Picture with 500kg/Batch Chocolate Conche Machine Chocolate Mass Grinding Machine
Detail Picture with Chocolate Mass Grinding Machine:
Processing Picture
Workshop:
1.Since our chocolate mass refiner chocolate conche machine is very convenient for customers in chocolate industry and confectionery industry,
it’s one of our hot sale products always.
2.We can make 50 sets of chocolate mass refiner chocolate conche machine per month. Moreover, except motor and electrical components, almost all parts are made by ourselves. So we can control our quality very well
Company Introduction
SuZhou Harmo Food Machinery is founded in Suzhou, China. We are professional chocolate machine supplier with full set of chocolate machine manufacturing facility. Except motors and electrical components, almost all parts are made by ourselves, so we can control quality from raw materials to finished products.
We export our chocolate machines to USA, Canada, South America, Middle East, North Africa, Eastern Europe and Asia.What made our company so special is our manufacturing experience which supply the best use of chocolate equipment and production processes for our customers around the world.
Quality is our culture, and service is our principle. This is why quality takes precedence over the price always. We know that you value service and we can prove it for you. So when we receive your questions,we strive to answer as promptly as possible.
It’s our purpose that learn from customers, work with customers and provide reliable chocolate equipment and proper production solutions for customers.
Certificate
We have CE certificate and IS09001, morover, we can customize UL standard chocolate machines for customers from USA and Canada. Our products have been approved by our customers since 1994.
Package & Shipping
FAQ
Q1: Can you provide invitation letter for customers and arrange pick-up at the airport, if
they want to visit your factory?
A1: Yes. We can provide invitation letter and arrange our driver or sales to pick up customers at Shanghai airport or train
station.
Q2: What is your warranty period?
A2: Our warranty is 12 months or 14 months after shipment.
Q3: Will you test the machine after manufacturing?
A3: Yes. All our machines will be tested with oil or raw materials before shipping by our technician.
Q4: Can you supply machines which conform to European Standard or American standard?
A4: Yes. We exported our machines to USA, Canada, Hungary and Belgium, etc.
Q5: What can we do if goods were damaged during shipping?
A5: Firstly, We will pack goods and fix them well in our factory;
Secondly, If goods were damaged during sea shipping, we will deliver parts to you try our best. So you can replace damaged parts
and run machines ASAP;
Q6: Can you arrange loading in your factory if customer bought products from different suppliers?
A6: Yes,we can load all products in our factory and ship all goods by one or two containers.
Q7: Do you provide installation and commissioning service?
A7: Yes, we can deliver our technician to do installation and commissioning in customers’ factory.
After installation, our technician will provide training for stuff in the factory.
Q8: Do you provide recipe if customer buys whole production line?
A8: Yes, we can provide a basic recipe, then customer can adjust the recipe according to customer's local market demand.
Q9: Do you provide instruction manual and maintenance schedule?
A9: Yes. We will provide detailed instruction manual and maintenance schedule before shipping.
Q10: Can you make customized machine?
A10: Yes, we can customize the machine according to the final product. Also we can provide turnkey project for our customers.
