Suzhou Harmo Food Machinery Co., Ltd
| Place of Origin: | Suzhou, China |
|---|---|
| Brand Name: | Harmo |
| Certification: | CE ISO |
| Model Number: | QYJ20 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Pallet |
| Delivery Time: | 60 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 50 sets/month |
| Condition: | New | Machinery Function: | Chocolate Mass Grinding And Refining |
|---|---|---|---|
| Material: | Stainless Steel | Capacity: | 20L |
| Grinding Time: | 8-10 Hours | Grinding Fineness: | 20-25 Micron |
| Power: | 2.1kw | Motor: | Chinese Brand Or European Brand |
| Electrical Appliances: | Chinese Brand Or European Brand | Voltage: | 380V 50Hz 3Phase Or Customized |
| Weight: | 350kg | Packing: | Pallet |
| Warranty: | 12 Months | ||
| Highlight: | Laboratory Melanger Chocolate Refiner,Stainless Steel Melanger Chocolate Refiner,chocolate refiner machine 20l |
||
Laboratory Professional Chocolate Refiner Melanger Machine
Product Description
Application
Our laboratory professional chocolate refiner melanger machine is the universal solution for making pure chocolate, compounds, coatings, pralines, truffles and fillings,etc from small to medium capacities.
Laboratory professional chocolate refiner melanger machine is versatile which means 3 in 1 manufacturing solution fullfillng the function of raw materials mixing, refining and conching. Once a mixed mass is procured, the refining and conching process will start.
Our laboratory professional chocolate refiner melanger machine has a main shaft which equipped with blades and a manual pressure adjustment wheel to adjust the pressure on the raw materials between the baldes and lining bars. It allows reliable process control to achieve and maintain constant mass quality between batches.
Moreover, our conche refiner has solenoid valve and automatic temperature water system. It makes proper tempeature inside conche refiner come ture and customer will obtaine delicate chocolate mass.
Technical parameters
| Model | 20 | 100 | 500 | 1000 | 1500 | 2000 | 3000 |
| Capacity | 20L | 100L | 500L | 1000L | 1500L | 2000L | 3000L |
| Grinding Fineness(micron) | 20-25 | 20-25 | 20-25 | 20-25 | 20-25 | 20-25 | 20-25 |
| Main Axle Rotating Speed(rpm) | 93 | 48 | 33 | 35 | 35 | 35 | 35 |
| Grinding time(h) | 8-10 | 12-16 | 16-22 | 16-22 | 16-22 | 16-22 | 16-22 |
| Main moter power(kw) | 1.5 | 5.5 | 15 | 22 | 30 | 37 | 45 |
| Electrical heating power(kw) | 0.6 | 2.5 | 5 | 2×2 | 6 | 3×2 | 12 |
| Weight(kg) | 295 | 1050 | 2572 | 3050 | 4850 | 5350 | 7500 |
| Dimension(mm) | 920×600×1110 | 1200×1150×1050 | 2465×1146×1312 | 2627×1280×1520 | 2918×1650×1920 | 3040×1912×1920 | 3450×2016×2280 |

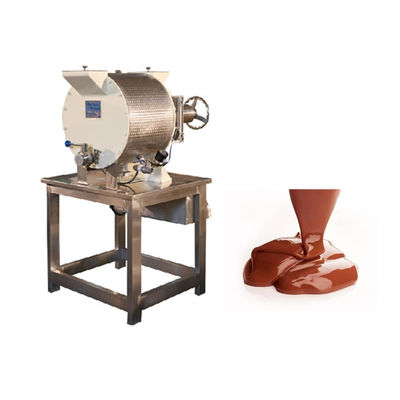

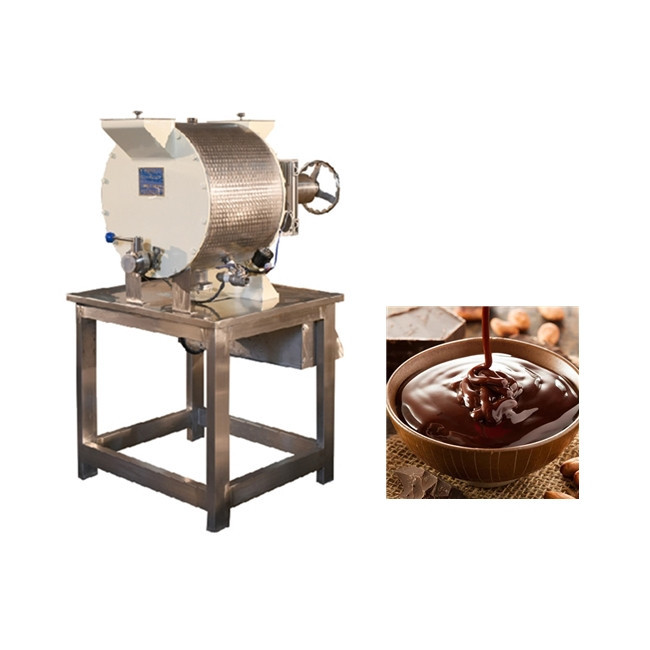

Main Picture
1. Our laboratory professional chocolate refiner melanger machine is proper production solution for chocolate shops and chocolate labs, because it’s with three functions: raw materials mixing, chocolate mass grinding&refining, and conching.
2. It can be used to make chocolate mass and various filling which used on chocolate.
Detail Picture
Features
1. Material of blades and lining bars are Manganese steel which with long living time. Moreover, every piece of lining bars will be processed and strengthened by our special heating system.
2. Our laboratory professional chocolate refiner melanger machine is flexible to operators, the reasons are:
1)It can be open from front side, so it’s easy to cleaning and maintenance;
2)With solenoid valve and automatic temperature control system.
3. Limited space is suitable for our laboratory professional chocolate refiner melanger machine.
Processing Picture
Workshop
1. Since our laboratory professional chocolate refiner melanger machine is very convenient for chocolate shops and chocolate labs, it’s one of our hot sale products always.
2. We can make 50 sets of 20L chocolate conche machine/month. Moreover, except motor and electrical components, almost all parts are made by ourselves. So we can control our quality very well.
Company Introduction
Certificate
Package & Shipping
