Suzhou Harmo Food Machinery Co., Ltd
| Place of Origin: | Suzhou, China |
|---|---|
| Brand Name: | Harmo |
| Certification: | CE ISO |
| Model Number: | Q113-510 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Polywood case |
| Delivery Time: | 60 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 20 sets/month |
| Item: | High Quality Three Depositors Shell Moulding Line Chocolate Moulding Machine | Capacity: | 100-380kg/hour |
|---|---|---|---|
| Condition: | New | Machinery Function: | Chocolate Moulding |
| Depositor: | Servo Motor And Pneumatic Depositor | Voltage: | Customized |
| Warranty: | 12 Months | Operation: | Automatic |
| Mould Size: | 510*200*30 Mm | Depositing Speed: | 10-12 Times/min |
| High Light: | 380kg Chocolate Decoration Machine,Three Depositors Chocolate Decoration Machine,380kg/H Chocolate Filling Machine |
||
High Quality Three Depositors Shell Moulding Line Chocolate Moulding Machine
Product Description
Application
1. Our high quality three depositors shell moulding line chocolate moulding machine is for chocolate with filling and crushed nuts production. The whole process is fully automatic, including moulds heating, depositing, mould plate vibrating, mould turning over, filling depositing, crushed nuts feeding, covering, cooling, demoulding, and conveying.
2. With three depositors, this chocolate moulding machine can make various chocolate, like choclate with fiiling, solid chocolate, chocolate with filling and crushed nuts, etc.
3. Depends on difference capacity, we have moulds size: 320*200*30MM, 510*200*30MM.
Technical parameters
| Item | high quality three depositors shell moulding line chocolate moulding machine |
| Capacity | 100-380kg/hour |
| Depositing speed(times/min) | 10-12 |
| Moulds size(mm) | 510*200*30 |
| Moulds quantity(pcs) | 380 |
| Cooling compressor(HP) | 15 |
| Compressed air(m³/min) | 0.3 |
| Total power(kw) | 23 |
| Weight(kg) | 5800 |
| Dimensions(mm) | 21000*1200*2400 |

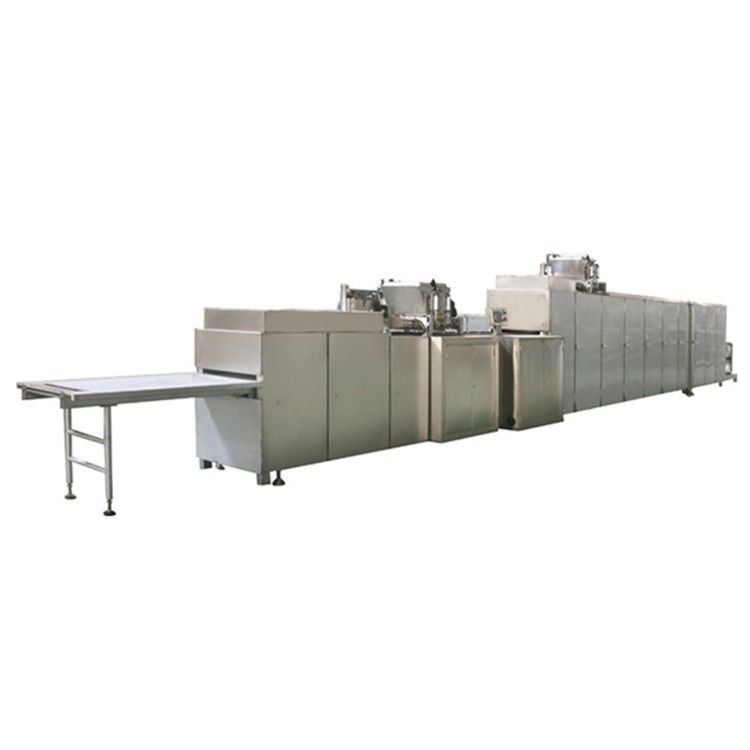

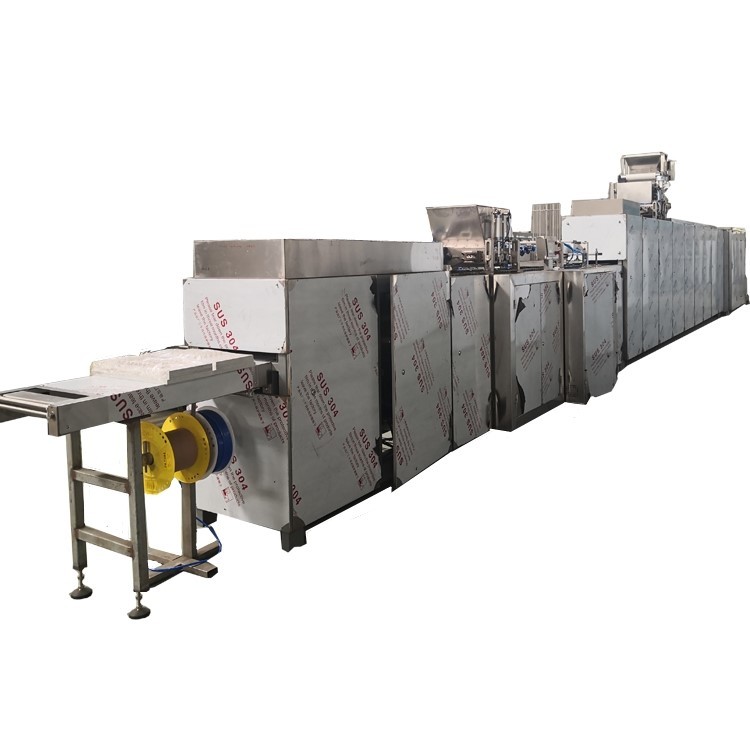

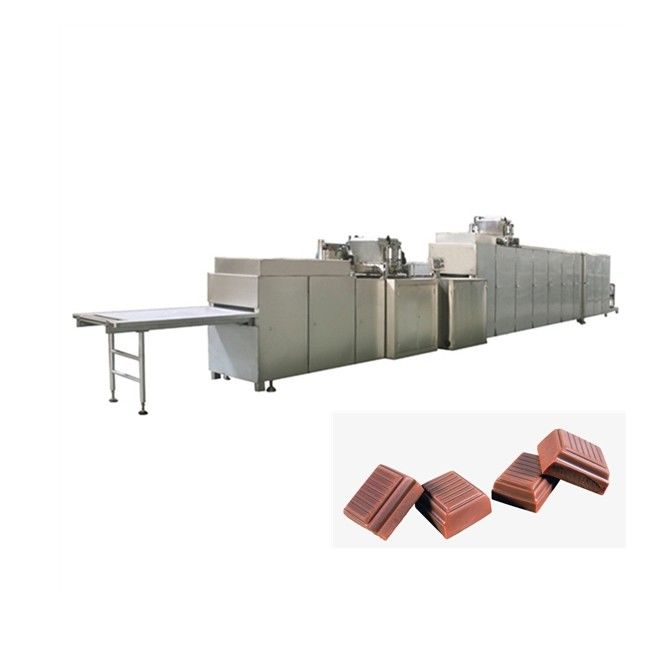

Main Picture
1. Hopper with stirrer for better depositing; automatic feeding is an optional;
2. Electrical components are Schneider and Panasonic which means reliable quality;
3. Controlled by PLC and easy operation;
4. Accurate depositing is reached by different sensors and photocell eyes;
5.Servo motor depositor or pneumatic depositor can be customized according to final product;

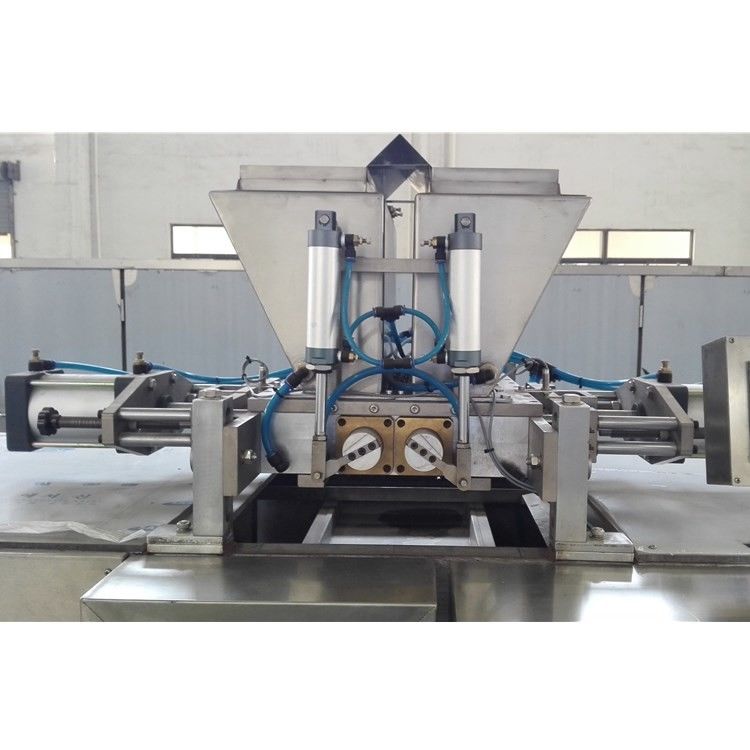

Detail Picture
Features:
1. Control by PLC, which means operation is easy for workers.
2. Pneumatic and servor motor depositor for optional, depends on chocolate;
3. Can be customized for pure chocolate production;
4. Can make biscuit chocolate;
5. Can make shell moulding chocolate, which means chocolate with filling and crushed nuts.
Company Introduction
SuZhou Harmo Food Machinery is founded in Suzhou, China. We are professional chocolate machine supplier with full set of chocolate machine manufacturing facility. Except motors and electrical components, almost all parts are made by ourselves, so we can control quality from raw materials to finished products.
We export our chocolate machines to USA, Canada, South America, Middle East, North Africa, Eastern Europe and Asia.What made our company so special is our manufacturing experience which supply the best use of chocolate equipment and production processes for our customers around the world.
Quality is our culture, and service is our principle. This is why quality takes precedence over the price always. We know that you value service and we can prove it for you. So when we receive your questions,we strive to answer as promptly as possible.
It’s our purpose that learn from customers, work with customers and provide reliable chocolate equipment and proper production solutions for customers.
Certificate
We have CE certificate and ISO 9001, morover, we can customize UL standard chocolate machines for customers from USA and Canada. Our products have been approved by our customers since 1994.
Package & Shipping
FAQ
Q1: Can you provide invitation letter for customers and arrange pick-up at the airport, if they want to visit your factory?
A1: Yes. We can provide invitation letter and arrange our driver or sales to pick up customers at Shanghai airport or train
station.
Q2: What is your warranty period?
A2: Our warranty is 12 months or 14 months after shipment.
Q3: Will you test the machine after manufacturing?
A3: Yes. All our machines will be tested with oil or raw materials before shipping by our technician.
Q4: Can you supply machines which conform to European Standard or American standard?
A4: Yes. We exported our machines to USA, Canada, Hungary and Belgium, etc.
Q5: What can we do if goods were damaged during shipping?
A5: Firstly, We will pack goods and fix them well in our factory;
Secondly, If goods were damaged during sea shipping, we will deliver parts to you try our best. So you can replace damaged parts
and run machines ASAP;
Q6: Can you arrange loading in your factory if customer bought products from different suppliers?
A6: Yes,we can load all products in our factory and ship all goods by one or two containers.
Q7: Do you provide installation and commissioning service?
A7: Yes, we can deliver our technician to do installation and commissioning in customers’ factory.
After installation, our technician will provide training for stuff in the factory.
Q8: Do you provide recipe if customer buys whole production line?
A8: Yes, we can provide a basic recipe, then customer can adjust the recipe according to customer's local market demand.
Q9: Do you provide instruction manual and maintenance schedule?
A9: Yes. We will provide detailed instruction manual and maintenance schedule before shipping.
Q10: Can you make customized machine?
A10: Yes, we can customize the machine according to the final product. Also we can provide turnkey project for our customers.
