Place of Origin: | Suzhou, China |
---|---|
Brand Name: | Harmo |
Certification: | CE ISO |
Model Number: | QBJ100 |
Minimum Order Quantity: | Negotiable |
Price: | Negotiable |
Packaging Details: | wooden box or pallet |
Delivery Time: | 30 days |
Payment Terms: | T/T, L/C, Western Union |
Supply Ability: | 50 sets/month |
Product Name: | Small Capacity 100L Chocolate Warming Machine Chocolate Holding Tank | Machinery Function: | Refined Chocolate Mass Storage |
---|---|---|---|
Material: | 304 SS | Feature: | With Wheels For Moving Easily |
Capacity: | 100L | Inside: | With Stirrer |
Certification: | ISO9001 CE | Motor: | Chinese Brand Or European Brand |
Electrical Appliances: | Chinese Brand Or European Brand | Weight: | 200 Kg |
Dimension: | 750*750*700 Mm | Warranty: | 12 Months |
High Light: | 100L Chocolate Warming Machine,200kg Chocolate Melting Equipment,100L Chocolate Melting Equipment |
Small Capacity 100L Chocolate Warming Machine Chocolate Holding Tank
Product Description
Application
Chocolate holding tank is one of necessary equipment in chocolate production, which mainly uses in chocolate mass/fillings heat preservation storing after the correct grinding and conching.
It is with automatic temperature control system and satisfies the technological requirement of chocolate production, adapts the continuous production request.
Technical parameters:
Model
project
|
30
|
100
|
500
|
1000
|
1500~5000
|
Maximum capacity(L)
|
30
|
100
|
500
|
1000
|
1500~5000
|
Main axle rotating speed (rpm)
|
22.5
|
22.5
|
22.5
|
22.5
|
22.5
|
Main Motor power(kw)
|
0.37
|
0.75
|
1.1
|
1.5
|
1.1~5
|
Electrical heating power(kw)
|
1
|
2.5
|
5
|
7.5
|
7.5~15
|
Heat preservation power(kw)
|
1
|
2.5
|
2.5
|
2.5
|
2.5~5
|
Weight(kg)
|
60
|
200
|
515
|
785
|
1010~3000
|
Outside dimensions(mm)
|
φ500×600
|
φ750×700
|
φ1035×1480
|
φ1250×1700
|
φ1400×1800~
φ2000×2500
|

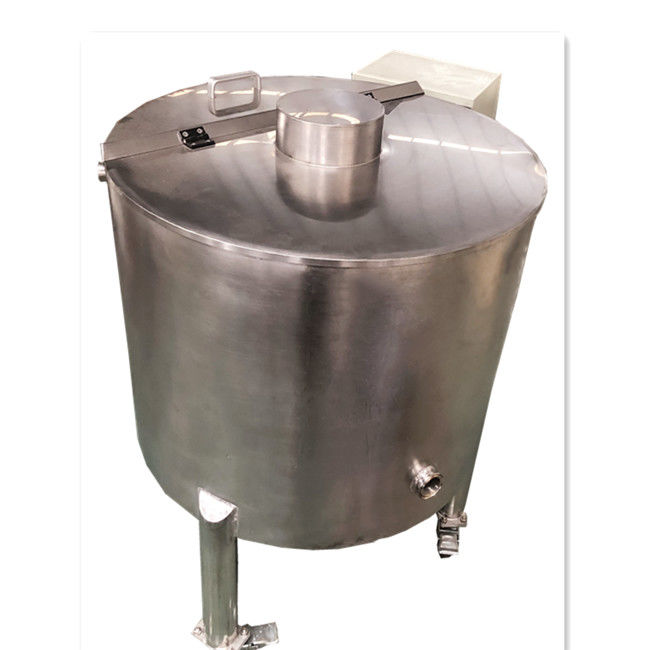

Main Picture

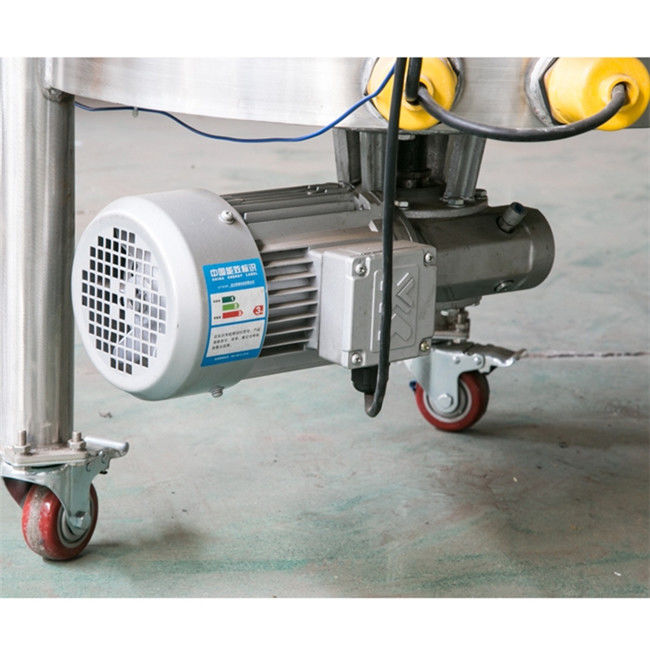

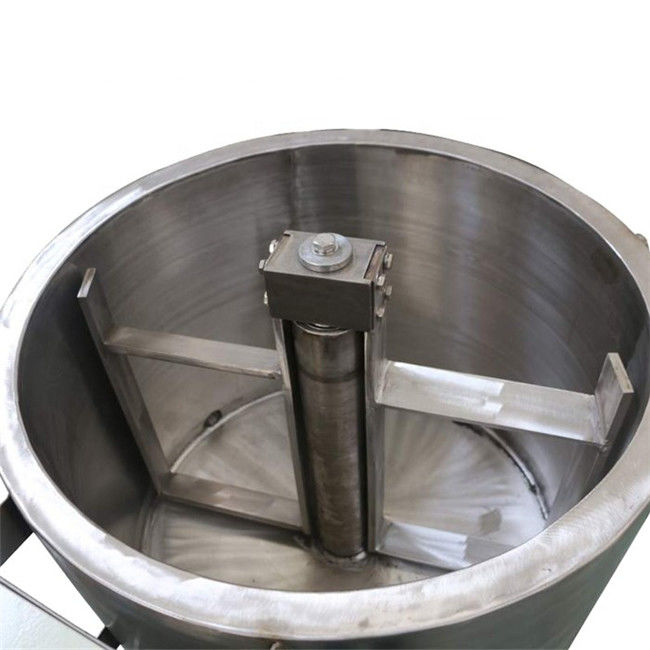

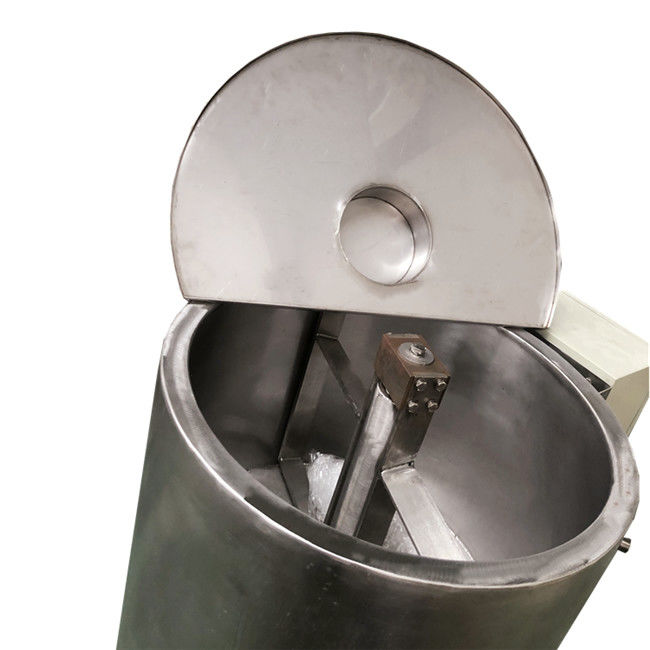

Detail Picture
Features
1. Small capacity 100L chocolate warming machine chocolate holding tank is made by 304 stainless steel which conform to food safety requirement and hygiene;
2. Fully adjustable temperature control;
3. Melting, stirring andstorage function;
4. With wheels at bottom for easy moving;
5. Beneficial to degassing, desmelling, dehydrating and preventing the chocolate mass fromthe separation of oil and grease etc
6. Suitable for handcraft chocolate shop and chocolate labs;
Processing Picture
Workshop
1. Since small capacity 100L chocolate warming machine chocolate holding tank is very convenientand important for chocolate production, it’s one of our hot sale products always.
2. We can makemore than 50 sets of chocolate holding tank per month. Moreover, except motor and electrical components, almost all parts are made by ourselves, so we can control our quality very well.
3. We can provide big range of chocolate holding tank which from 30L-5000L. So they can meet most of customers’ demands, no matter you are handcraft chocolate shop or big capacity chocolate factory.
Company Introduction
SuZhou Harmo Food Machinery is founded in Suzhou, China. We are professional chocolate machine supplier with full set of chocolate machine manufacturing facility. Except motors and electrical components, almost all parts are made by ourselves, so we can control quality from raw materials to finished products.
We export our chocolate machines to USA, Canada, South America, Middle East, North Africa, Eastern Europe and Asia.What made our company so special is our manufacturing experience which supply the best use of chocolate equipment and production processes for our customers around the world.
Quality is our culture, and service is our principle. This is why quality takes precedence over the price always. We know that you value service and we can prove it for you. So when we receive your questions,we strive to answer as promptly as possible.
It’s our purpose that learn from customers, work with customers and provide reliable chocolate equipment and proper production solutions for customers.
Certificate
We have CE certificate and IS09001, morover, we can customize UL standard chocolate machines for customers from USA and Canada. Our products have been approved by our customers since 1994.
