Suzhou Harmo Food Machinery Co., Ltd
| Place of Origin: | Suzhou, China |
|---|---|
| Brand Name: | Harmo |
| Certification: | CE ISO |
| Model Number: | QYJ20 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Pallet |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 50 sets/month |
| Condition: | New | Machinery Function: | Chocolate Mass Grinding |
|---|---|---|---|
| Material: | Stainless Steel | Capacity: | 20L |
| Grinding Time: | 8-10 Hours | Grinding Fineness: | 20-25 Micron |
| Voltage: | 380V 50Hz 3Phase Or Customized | Warranty: | 12 Months |
| High Light: | 20L Chocolate Conche Machine,380V Chocolate Conche Machine,20 Micron Chocolate Grinder |
||

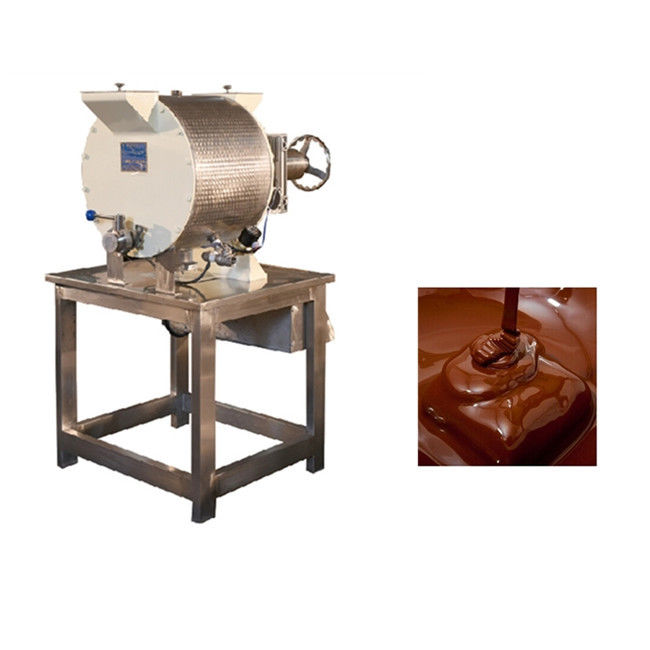

20L Stainless Steel Chocolate Conche Machine For Chocolate Shop
Product Description
Application
Chocolate conche machine is the universal solution for making pure chocolate, compounds, coatings, pralines, truffles and fillings,etc from small to medium capacities.
Chocolate conche refiner is versatile which means 3 in 1 manufacturing solution fullfillng the function of raw materials mixing, refining and conching. Once a mixed mass is procured, the refining and conching process will start.
Our chocolate conche machine has a main shaft which equipped with blades and a manual pressure adjustment wheel to adjust the pressure on the raw materials between the baldes and lining bars. It allows reliable process control to achieve and maintain constant mass quality between batches.
Technical parameters
| Item | 20L stainless steel chocolate conche machine for chocolate shop |
| Capacity | 20L |
| Grinding Fineness(micron) | 20-25 |
| Main Axle Rotating Speed(rpm) | 93 |
| Grinding time(h) | 8-10 |
| Main moter power(kw) | 1.5 |
| Electrical heating power(kw) | 0.6 |
| Weight(kg) | 295 |
| Dimension(mm) | 920×600×1110 |

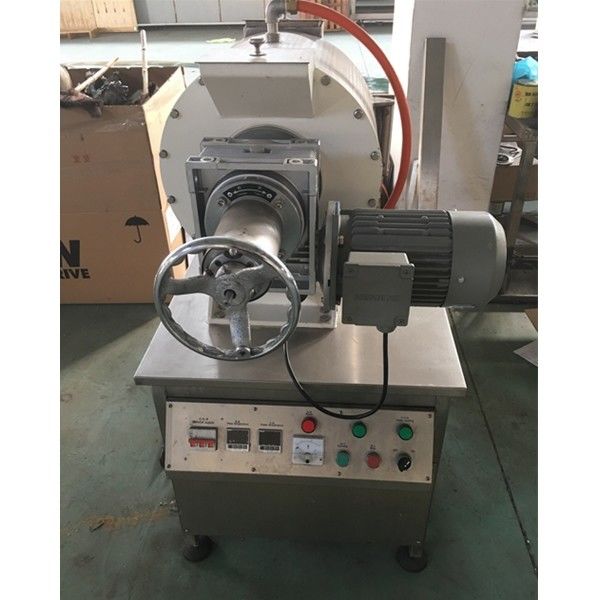

Main Picture
1. Our 20L chocolate conche machine is proper production solution for chocolate shops and chocolate labs, because it’s with three functions: raw materials mixing, chocolate mass grinding&refining, and conching.
2. It can be used to make chocolate mass, chocolate spread and various fillings which used on chocolate or bakery products.

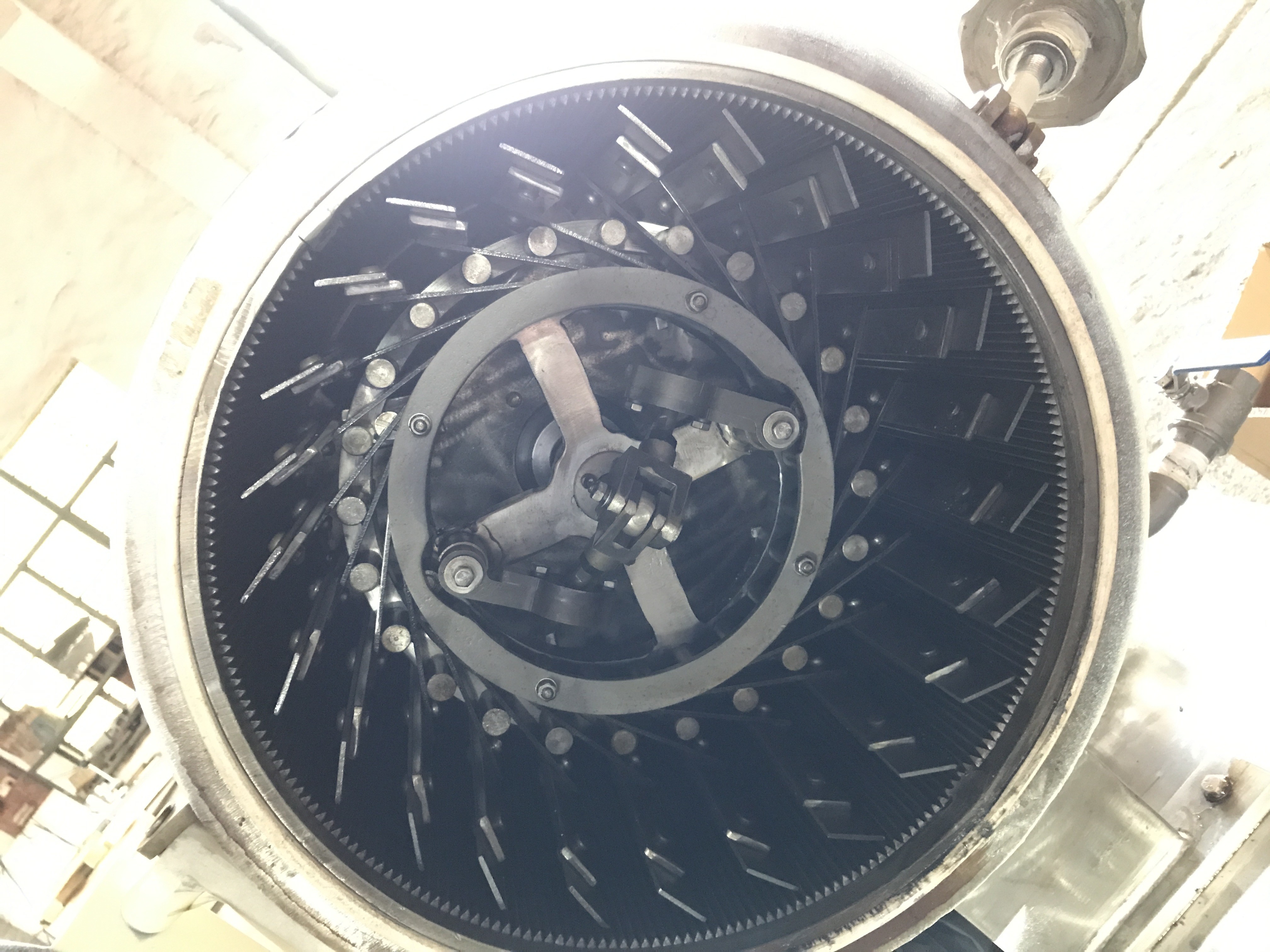

Detail Picture
Features
1.Material of lining bars and blades is manganese steel. And both of them have 3 year lifetime.
2.Lining bars are stronger than blades, because of our special heating processing craft.
3.Simple control panel is friendly to operators.
4.With solenoid valve and automatic temperature control system which is essentical to improve chocolate flavor.
5.Can open from front part for easy cleaning and maintenance.
Processing Picture
1.Body tanks will put outside at least one month for making sure metal stable enough and even after more than 10 years using, the shape will not change.
2.Special processing technology to remove the rust and get a smooth surface.
Workshop
1. Since our 20l stainless steel chocolate conche machine for chocolate shop is very convenient for chocolate shops and chocolate labs, it’s one of our hot sale products always.
2. We can make 50 sets of 40L chocolate conche machine/month. Moreover, except motor and electrical components, almost all parts are made by ourselves. So we can control our quality very well.
Company Introduction
SuZhou Harmo Food Machinery is founded in Suzhou, China. We are professional chocolate machine supplier with full set of chocolate machine manufacturing facility. Except motors and electrical components, almost all parts are made by ourselves, so we can control quality from raw materials to finished products.
We export our chocolate machines to USA, Canada, South America, Middle East, North Africa, Eastern Europe and Asia.What made our company so special is our manufacturing experience which supply the best use of chocolate equipment and production processes for our customers around the world.
Quality is our culture, and service is our principle. This is why quality takes precedence over the price always. We know that you value service and we can prove it for you. So when we receive your questions,we strive to answer as promptly as possible.
It’s our purpose that learn from customers, work with customers and provide reliable chocolate equipment and proper production solutions for customers.
Certificate
We have CE certificate and IS09001, morover, we can customize UL standard chocolate machines for customers from USA and Canada. Our products have been approved by our customers since 1994.
Package & Shipping
