Place of Origin: | Suzhou, China |
---|---|
Brand Name: | Harmo |
Certification: | CE ISO |
Model Number: | QYJ100 |
Minimum Order Quantity: | Negotiable |
Price: | Negotiable |
Packaging Details: | wooden box |
Delivery Time: | 60 days |
Payment Terms: | T/T, L/C, Western Union |
Supply Ability: | 50 sets/month |
Condition: | New | Machinery Function: | Chocolate Mass Making |
---|---|---|---|
Material: | Carbon Steel | Capacity: | 100L |
Motor: | Chinese Brand | Electrical Appliances: | Chinese Brand |
Voltage: | 380V 50Hz 3Phase Or Customized | Weight: | 1050kg |
Dimension: | 1200*1150*1050mm | Packing: | Pallet |
Highlight: | 48rpm Chocolate Conche Machine,100L Chocolate Conche Machine,48rpm Chocolate Conching Machine |
High Quality Chinese 100L Chocolate Conche Refiner Machinery Chocolate Grinder
Product Description
Application:
Chocolate conche refiner machinery is the universal solution for making pure chocolate, compounds, coatings, pralines, truffles and fillings,etc from small to medium capacities.
Chocolate conche refiner machinery is versatile which means 3 in 1 manufacturing solution fullfillng the function of raw materials mixing, refining and conching. Once a mixed mass is procured, the refining and conching process will start.
Our chocolate conche refiner has a main shaft which equipped with blades and a manual pressure adjustment wheel to adjust the pressure on the raw materials between the baldes and lining bars. It allows reliable process control to achieve and maintain constant mass quality between batches.
Moreover, our conche refiner has solenoid valve and automatic temperature water system. It makes proper tempeature inside conche refiner come ture and customer will obtaine delicate chocolate mass.
Technical Parameters
Model | 20 | 100 | 500 | 1000 | 1500 | 2000 | 3000 |
Capacity | 20L | 100L | 500L | 1000L | 1500L | 2000L | 3000L |
Grinding Fineness(micron) | 20-25 | 20-25 | 20-25 | 20-25 | 20-25 | 20-25 | 20-25 |
Main Axle Rotating Speed(rpm) | 93 | 48 | 33 | 35 | 35 | 35 | 35 |
Grinding time(h) | 8-10 | 12-16 | 16-22 | 16-22 | 16-22 | 16-22 | 16-22 |
Main moter power(kw) | 1.5 | 5.5 | 15 | 22 | 30 | 37 | 45 |
Electrical heating power(kw) | 0.6 | 2.5 | 5 | 2×2 | 6 | 3×2 | 12 |
Weight(kg) | 295 | 1050 | 2572 | 3050 | 4850 | 5350 | 7500 |
Dimension(mm) | 920×600×1110 | 1200×1150×1050 | 2465×1146×1312 | 2627×1280×1520 | 2918×1650×1920 | 3040×1912×1920 | 3450×2016×2280 |

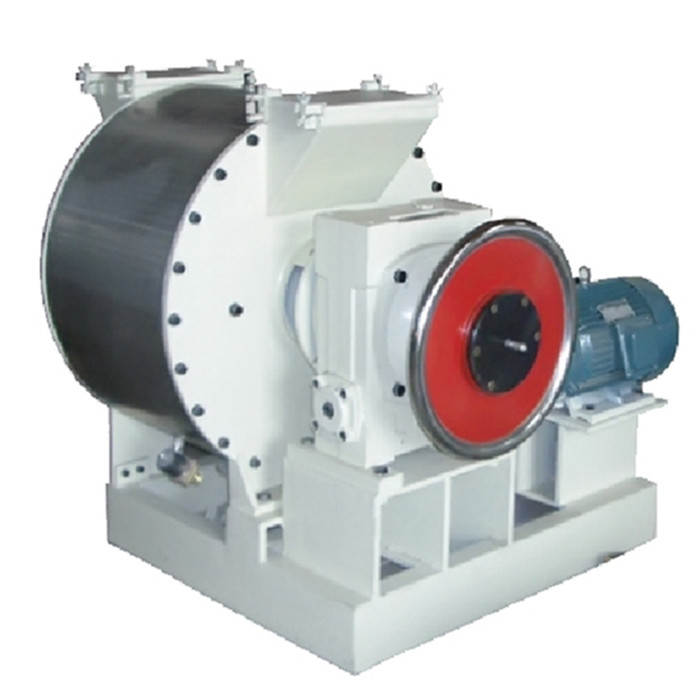

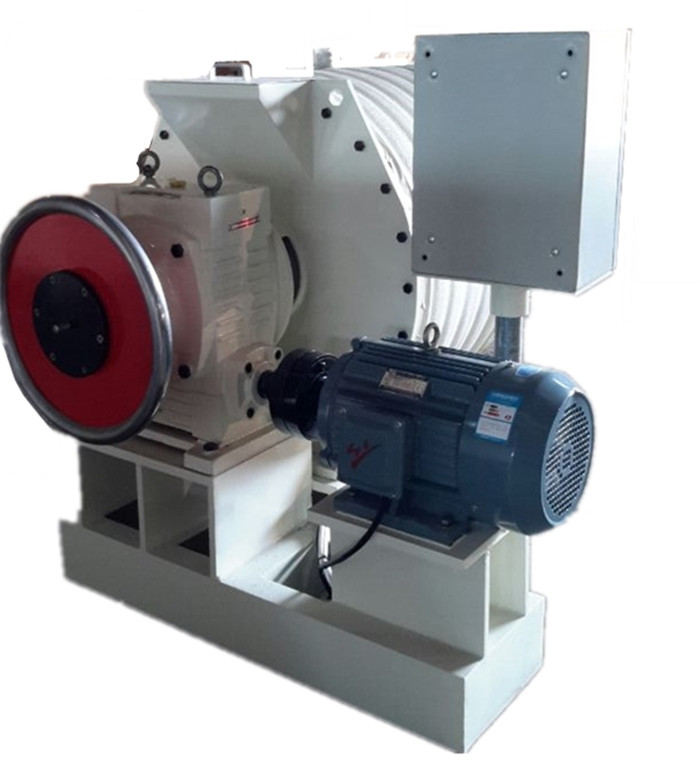

Main Picture
1.Our high quality Chinese 100L chocolate conche refiner machinery chocolate grinder is proper production solution for chocolate shops and chocolate labs, because it's with three functions: raw materials mixing, chocolate mass grinding&refining, and conching.
2.High quality Chinese 100L chocolate conche refiner machinery chocolate grinder can be used to make chocolate mass and various filling which used on chocolate.
Detail Picture
Features:

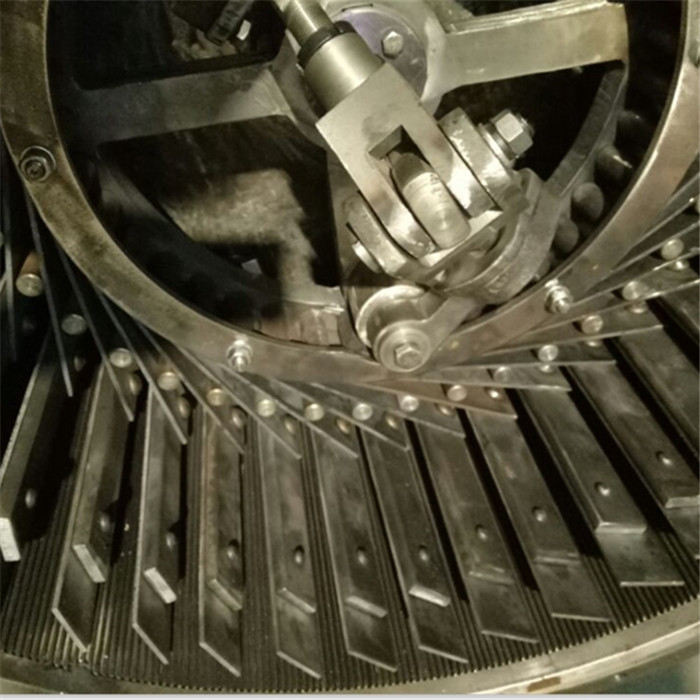

1.Material of blades and lining bars are Manganese steel which with long living time. Moreover, every piece of lining bars will be processed and strengthened by our special heating system.
2.Our high quality Chinese 100L chocolate conche refiner machinery chocolate grinder is flexible to operators, the reasons are:
1)100kg/batch which means load the raw materials is an easy job;
2)With solenoid valve and automatic temperature control system.
3.Limited space is suitable for our high quality Chinese 100L chocolate conche refiner machinery chocolate grinder.

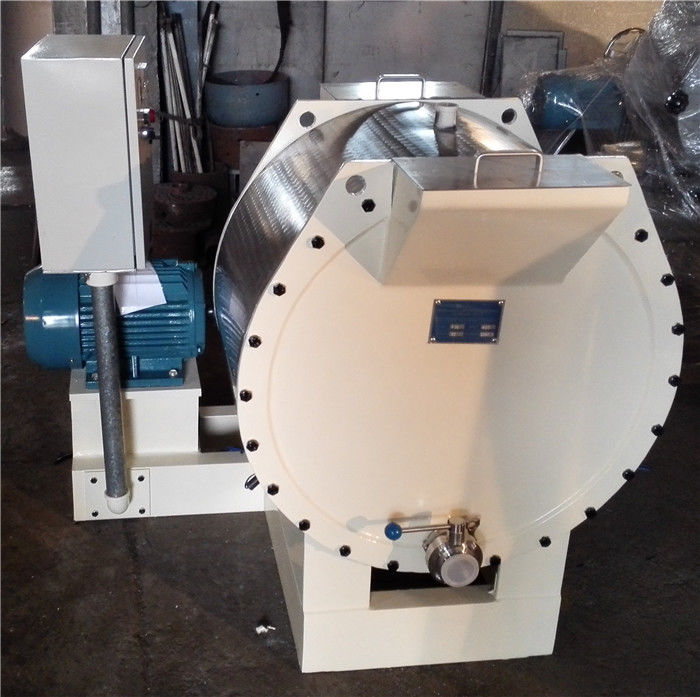

Processing Picture
Workshop
1.Since our 100L chocolate conche refiner is very convenient for chocolate shops and chocolate labs, it’s one of our hot sale products always.
2. We can make 50 sets of 100L chocolate conche refiner/month. Moreover, except motor and electrical components, almost all parts are made by ourselves. So we can control our quality very well.
Company Introduction
SuZhou Harmo Food Machinery is founded in Suzhou, China. We are professional chocolate machine supplier with full set of chocolate machine manufacturing facility. Except motors and electrical components, almost all parts are made by ourselves, so we can control quality from raw materials to finished products.
We export our chocolate machines to USA, Canada, South America, Middle East, North Africa, Eastern Europe and Asia.What made our company so special is our manufacturing experience which supply the best use of chocolate equipment and production processes for our customers around the world.
Quality is our culture, and service is our principle. This is why quality takes precedence over the price always. We know that you value service and we can prove it for you. So when we receive your questions,we strive to answer as promptly as possible.
It’s our purpose that learn from customers, work with customers and provide reliable chocolate equipment and proper production solutions for customers.
Certificate
We have CE certificate and IS09001, morover, we can customize UL standard chocolate machines for customers from USA and Canada. Our products have been approved by our customers since 1994.
Package & Shipping
FAQ
Q1: Can you provide invitation letter for customers and arrange pick-up at the airport, if they want to visit your factory?
A1: Yes. We can provide invitation letter and arrange our driver or sales to pick up customers at Shanghai airport or train
station.
Q2: What is your warranty period?
A2: Our warranty is 12 months or 14 months after shipment.
Q3: Will you test the machine after manufacturing?
A3: Yes. All our machines will be tested with oil or raw materials before shipping by our technician.
Q4: Can you supply machines which conform to European Standard or American standard?
A4: Yes. We exported our machines to USA, Canada, Hungary and Belgium, etc.
Q5: What can we do if goods were damaged during shipping?
A5: Firstly, We will pack goods and fix them well in our factory;
Secondly, If goods were damaged during sea shipping, we will deliver parts to you try our best. So you can replace damaged parts
and run machines ASAP;
Q6: Can you arrange loading in your factory if customer bought products from different suppliers?
A6: Yes,we can load all products in our factory and ship all goods by one or two containers.
Q7: Do you provide installation and commissioning service?
A7: Yes, we can deliver our technician to do installation and commissioning in customers’ factory.
After installation, our technician will provide training for stuff in the factory.
Q8: Do you provide recipe if customer buys whole production line?
A8: Yes, we can provide a basic recipe, then customer can adjust the recipe according to customer's local market demand.
Q9: Do you provide instruction manual and maintenance schedule?
A9: Yes. We will provide detailed instruction manual and maintenance schedule before shipping.
Q10: Can you make customized machine?
A10: Yes, we can customize the machine according to the final product. Also we can provide turnkey project for our customers.
