Suzhou Harmo Food Machinery Co., Ltd
| Place of Origin: | Suzhou, China |
|---|---|
| Brand Name: | Harmo |
| Certification: | CE ISO |
| Model Number: | QYJ40 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Pallet |
| Delivery Time: | 60 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 50 sets/month |
| Condition: | New | Machinery Function: | Chocolate Mass Grinding |
|---|---|---|---|
| Material: | Stainless Steel | Capacity: | 20L |
| Grinding Time: | 8-10 Hours | Grinding Fineness: | 20-25 Micron |
| Power: | 2.1kw | Motor: | Chinese Brand Or European Brand |
| Electrical Appliances: | Chinese Brand Or European Brand | Voltage: | 380V 50Hz 3Phase Or Customized |
| Weight: | 350kg | Packing: | Pallet |
| Warranty: | 12 Months | ||
| High Light: | 20L Chocolate Conche Machine,350kg Chocolate Conche Machine,CE Chocolate Refiner Conche |
||
40L Stainless Steel Chocolate Conche Machine For Small Business/Chocolate Shop
Product Description
Application
Chocolate conche machine is the universal solution for making pure chocolate, compounds, coatings, pralines, truffles and fillings,etc from small to medium capacities.
Chocolate conche refiner is versatile which means 3 in 1 manufacturing solution fullfillng the function of raw materials mixing, refining and conching. Once a mixed mass is procured, the refining and conching process will start.
Our chocolate conche refiner has a main shaft which equipped with blades and a manual pressure adjustment wheel to adjust the pressure on the raw materials between the baldes and lining bars. It allows reliable process control to achieve and maintain constant mass quality between batches.
Moreover, our conche refiner has solenoid valve and automatic temperature water system. It makes proper tempeature inside conche refiner come ture and customer will obtaine delicate chocolate mass.
Technical parameters
| Model | 20 | 100 | 500 | 1000 | 1500 | 2000 | 3000 |
| Capacity | 20L | 100L | 500L | 1000L | 1500L | 2000L | 3000L |
| Grinding Fineness(micron) | 20-25 | 20-25 | 20-25 | 20-25 | 20-25 | 20-25 | 20-25 |
| Main Axle Rotating Speed(rpm) | 93 | 48 | 33 | 35 | 35 | 35 | 35 |
| Grinding time(h) | 8-10 | 12-16 | 16-22 | 16-22 | 16-22 | 16-22 | 16-22 |
| Main moter power(kw) | 1.5 | 5.5 | 15 | 22 | 30 | 37 | 45 |
| Electrical heating power(kw) | 0.6 | 2.5 | 5 | 2×2 | 6 | 3×2 | 12 |
| Weight(kg) | 295 | 1050 | 2572 | 3050 | 4850 | 5350 | 7500 |
| Dimension(mm) | 920×600×1110 | 1200×1150×1050 | 2465×1146×1312 | 2627×1280×1520 | 2918×1650×1920 | 3040×1912×1920 | 3450×2016×2280 |

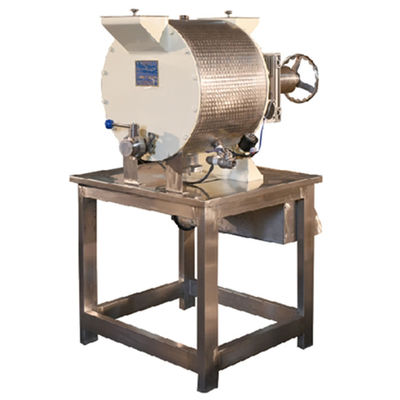

Main Picture
1. Our 40L chocolate conche machine for small business/chocolate shop is proper production solution for chocolate shops and chocolate labs, because it’s with three functions: raw materials mixing, chocolate mass grinding&refining, and conching.
2. It can be used to make chocolate mass and various filling which used on chocolate.

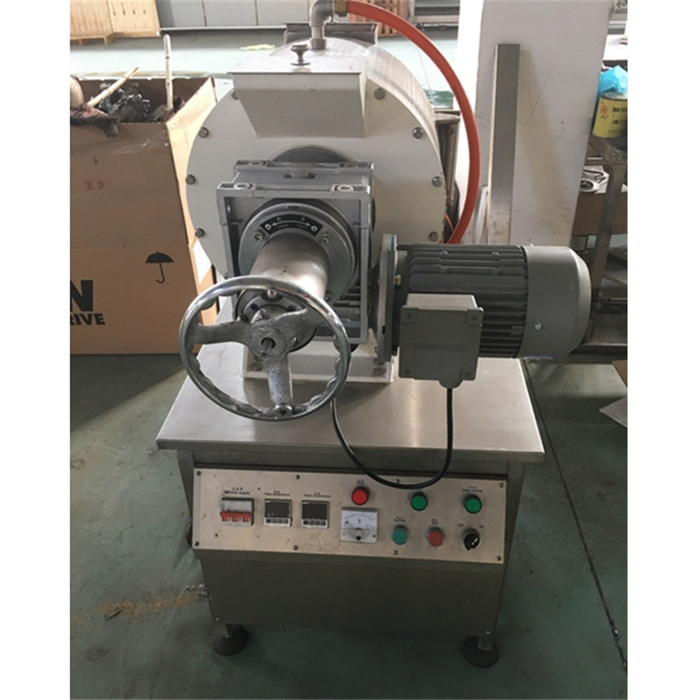

Detail Picture
Features
1. Material of blades and lining bars are Manganese steel which with long living time. Moreover, every piece of lining bars will be processed and strengthened by our special heating system.
2. Our 40L chocolate conche machine is flexible to operators, the reasons are:
1)It can be open from front side, so it’s easy to cleaning and maintenance;
2)With solenoid valve and automatic temperature control system.
3. Limited space is suitable for our 40L choocolate conche machine.
Processing Picture
Workshop
1. Since our 40L chocolate conche machine for small business/chocolate shop is very convenient for chocolate shops and chocolate labs, it’s one of our hot sale products always.
2. We can make 50 sets of 40L chocolate conche machine/month. Moreover, except motor and electrical components, almost all parts are made by ourselves. So we can control our quality very well.
Company Introduction
Certificate
Package & Shipping
