Highlight
100L chocolate conche machine
,industrial chocolate conche machine
,food factory conche machine
-
Voltage380V 50Hz 3Phase Or Customized
-
Power5.5 KW
-
Dimension1200×1150×1050 Mm
-
Weight1050 KG
-
Capacity100L
-
Grinding Fineness20~25 Micron
-
Grinding Time8-10h
-
Main Motor Power5.5 KW
-
Electrical Heating Power2.5 KW
-
Main Axle Speed48 Rpm
-
MaterialCarbon Steel Or Stainless Steel
-
Blade MaterialManganese Steel
-
Batch Size100kg/batch
-
Temperature ControlAutomatic
-
Lining Bar MaterialManganese Steel
-
Place of OriginJiangsu, China
-
CertificationISO CE
-
Minimum Order Quantity1
-
Price$5,600
100L Chocolate Conche Machine for Food & Beverage Factory
100L Chocolate Spread Production Line Chocolate Grinder Small
Product Specifications
| Attribute | Value |
|---|---|
| Condition | New |
| Voltage | 380V 50Hz 3Phase or Customized |
| Power (kW) | 5.5 |
| Dimensions (L×W×H) | 1200×1150×1050mm |
| Weight | 1050 KG |
| Warranty | 1 Year |
| Capacity | 100L |
| Grinding Fineness | 20~25micron |
| Grinding Time | 8-10h |
| Material | Carbon Steel Or Stainless Steel |
| MOQ | 1 set |
Product Description
Our 100L chocolate conche refiner is an ideal production solution for chocolate shops and labs, combining three functions: raw material mixing, chocolate mass grinding/refining, and conching. It produces chocolate mass and various fillings for chocolate products.
Technical Parameters
| Model/Project | 20L | 100L | 500L | 1000L | 1500L | 2000L | 3000L |
|---|---|---|---|---|---|---|---|
| Maximum Capacity (L) | 20 | 100 | 500 | 1000 | 1500 | 2000 | 3000 |
| Grinding Fineness (micron) | 20-25 | 20-25 | 20-25 | 20-25 | 20-25 | 20-25 | 20-25 |
| Main Axle Rotating Speed (rpm) | 93 | 48 | 33 | 35 | 35 | 35 | 35 |
| Grinding Time (h) | 8-10 | 12-16 | 16-22 | 16-22 | 16-22 | 16-22 | 16-22 |
| Main Motor Power (kW) | 1.5 | 5.5 | 15 | 22 | 30 | 37 | 45 |
Key Features
- Manganese steel blades and lining bars with extended lifespan, strengthened by special heat treatment
- Operator-friendly design with 100kg batch capacity for easy material loading
- Equipped with solenoid valve and automatic temperature control system
- Compact footprint ideal for limited spaces
- Versatile for chocolate shops, labs, and small-scale production

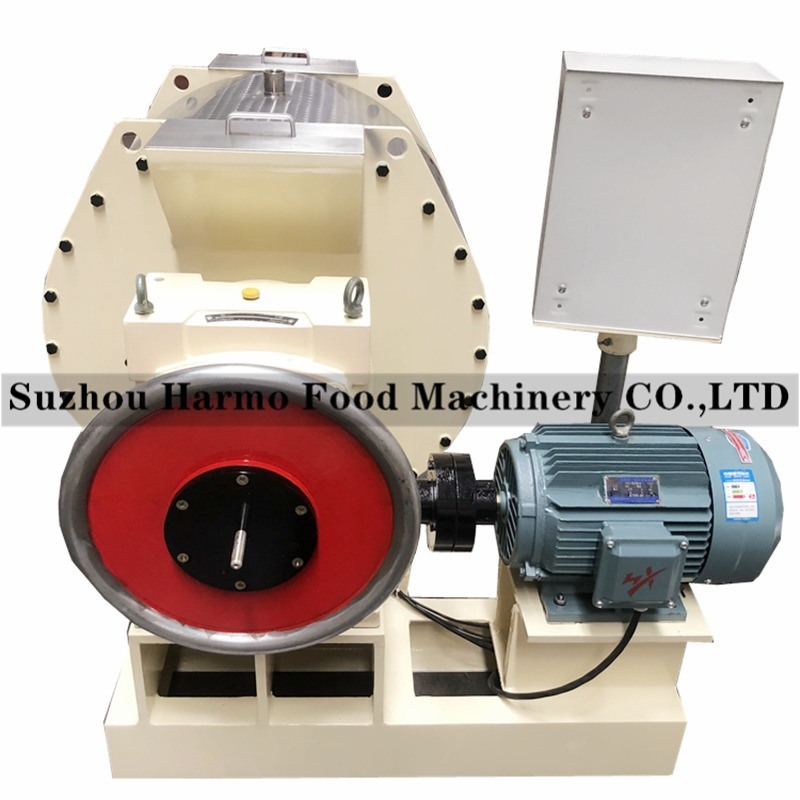

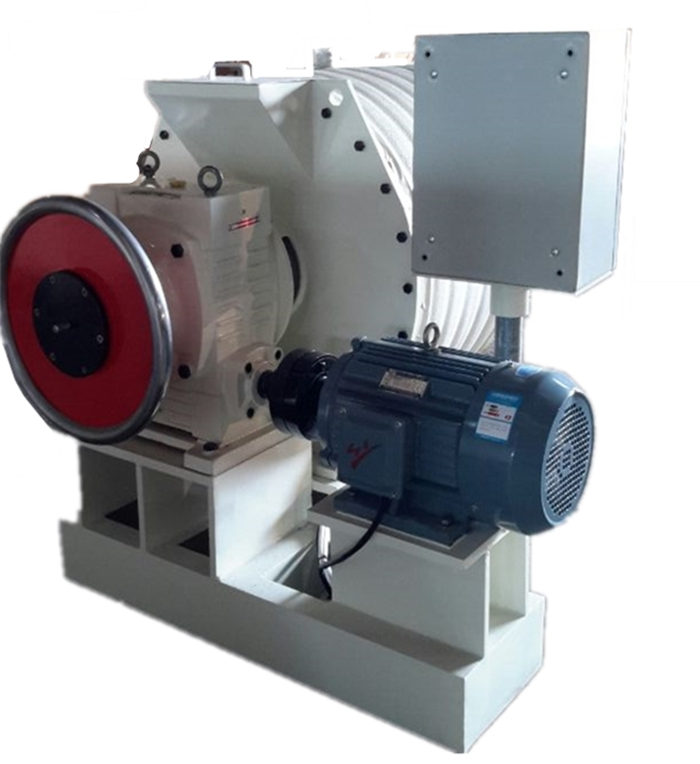

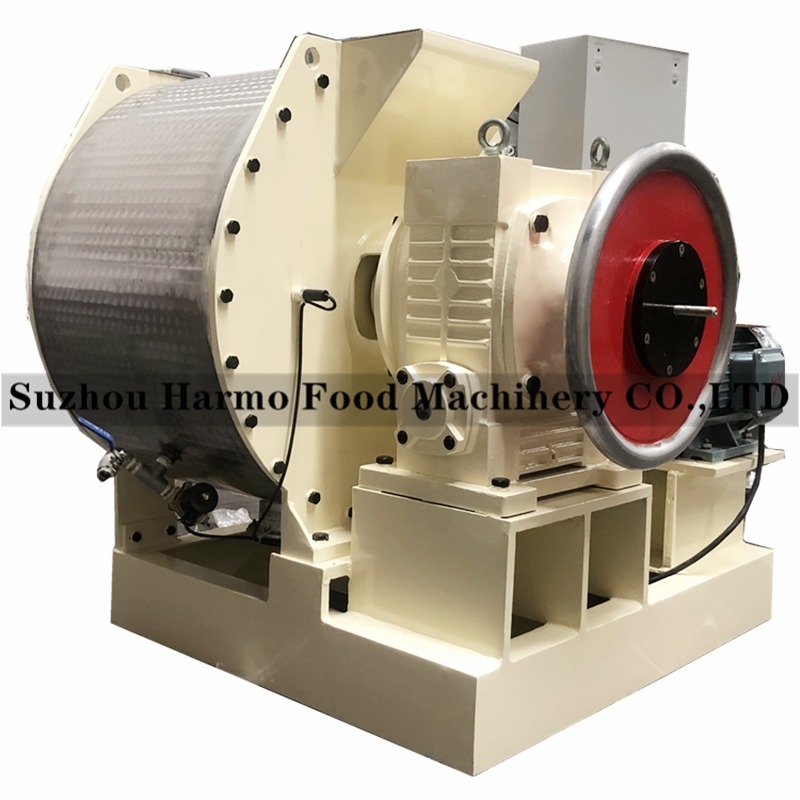

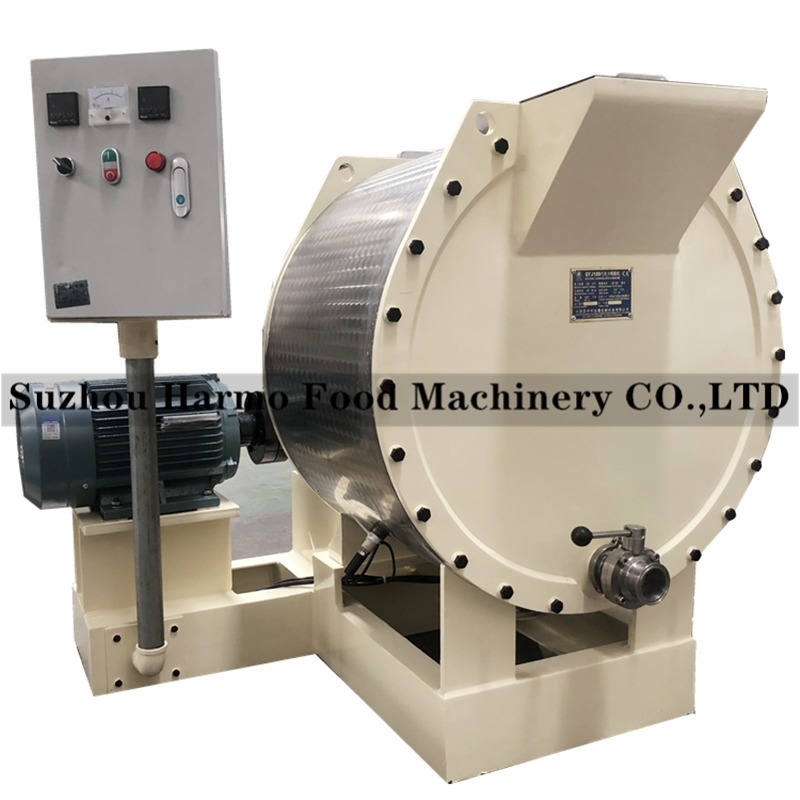

Product Images
Manufacturing Capabilities
We produce 50 sets of 100L chocolate conche refiners monthly. Except for motors and electrical components, nearly all parts are manufactured in-house, ensuring strict quality control throughout the production process.
Frequently Asked Questions
Q1: What is your warranty period?
A1: Our warranty is 12 months or 14 months after shipment.
Q2: Do you test machines before shipping?
A2: Yes, all machines are tested with oil or raw materials by our technicians prior to shipment.
Q3: Can you customize machines?
A3: Yes, we can customize machines according to your specific requirements and provide turnkey solutions.
Q4: Do you provide installation support?
A4: Yes, we can send technicians for installation, commissioning, and staff training at your facility.
